Compatible Touch Screen Display Panel , 19 Inch Large Capacitive Touch Screen
Compatible Touch Screen Display Panel , 19 Inch Large Capacitive Touch Screen
Compatible Touch Screen Display Panel , 19 Inch Large Capacitive Touch Screen
Compatible Touch Screen Display Panel , 19 Inch Large Capacitive Touch Screen
Specifications
Brand Name :
ZXTLCD
Model Number :
ZXT-D19-10B
Certification :
CE/Rohs/FCC/ERP Energy Label
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiate
Payment Terms :
T/T,Western Union, Alibaba trade assurance
Supply Ability :
5,000 pcs per month
Delivery Time :
1-5 working days
Packaging Details :
wooden case, carton, flight case are option
Size :
19''
Interface :
USB
Touch controller :
EETI Touch Controller
Operation system :
WIN XP Windows 7 Window 8 Android Linux
Touch Points :
10 touches
Warranty :
1 Year
Description

19 Inch Capacitive Multi Touch Screen with EETI/SIS USB controller Power 10 Touches

OS Version Interfaces
Windows Windows 8(Need logo submission)
Windows 7
Windows Vista, XP/2000
Windows CE.net/5.0/6.0/7.0
Windows Embedded
Windows XP Tablet PC edition		 USB/RS232
Linux Distribution based on Kernel 2.6.24 and
later.
(Ubuntu/Linux Mint
Debian
Fedora
Red Hat/CentOS
Magaie/Mandriva/Mandrake
SUSE/openSUSE		 USB/RS232
Android 2.3 ~ 4.4 USB/RS232
Mac Mac OS, Mac OS X (PowerPC, Intel CPU) USB
QNX QNX RTOS v6.3 USB/RS232

Compatible Touch Screen Display Panel , 19 Inch Large Capacitive Touch Screen

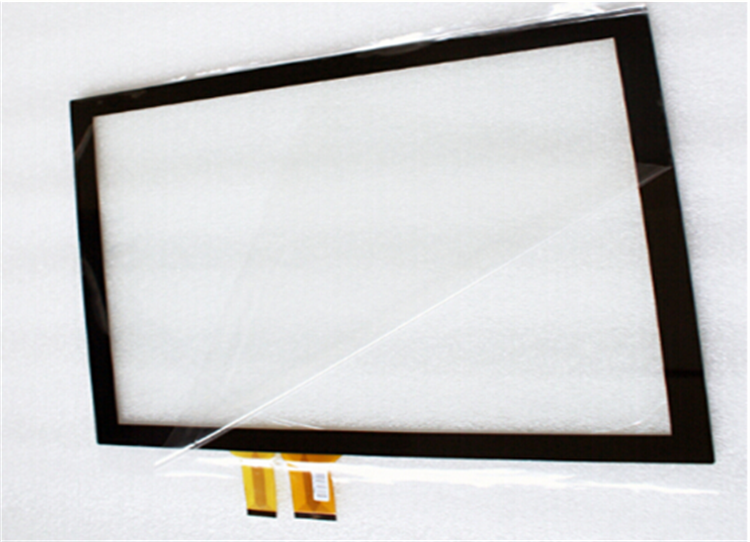

(PCAP)Capacitive Multi Touch Screen Specification:
ZXT's projected capacitive touch screen is developed by American expert,used high quality raw material imported from Japan,and the quality control is under the super vision of Taiwanese esperienced technical stuff.The item has long life,high stability,high transmittance,large size,maintenance free features,and is idea for smart phone,trblet PC,Gps


Projected Capacitive Touch Panel Specification

---The specification of 19 inch touch screen---
Specification
Size 19 inch
Product name

19 inch capacitive touch screen
Model number ZXT-D190-10B
Type Capacitive touch screen
Struture CTP(Glass+Glass)
Outline Dimension 398*326mm(0/-0.2mm)
Active area 380.32*305.06mm(±0.2mm)
Thickness of cover glass 1.1 mm

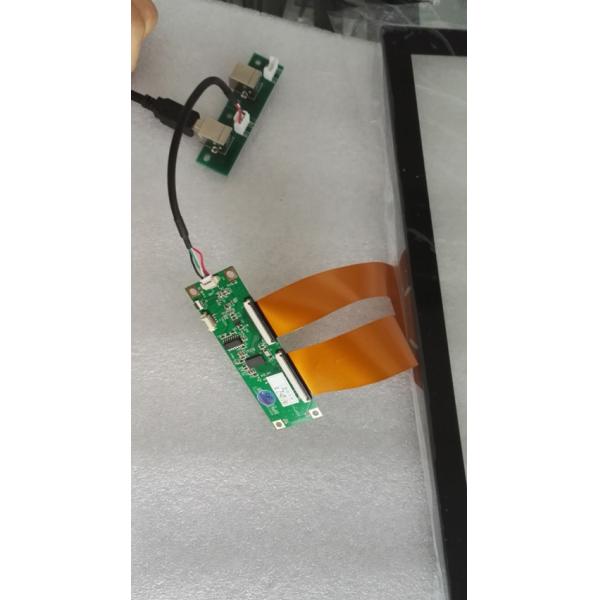

Touch screen solution COB(Chip on the board)
Touch controller EETI
Operating system Win 7,win8,win ce,android,Linux,Mac
Interface of CTP I2C/USB/RS232
Surface Hardness 6H
Transparency 90%min
Touch Points 10 points
Operating temp -20 to 70 degree
General Business Clauses
MOQ 1 piece
Lead time Samples in stocks,2~4 weeks for mass production
Trade Terms EXW or FOB
Payment 100% Paypal or T/T or Western union in advanc for samples ,
50% T/T in advance and 50% before delivery for mass production
Warranty 12 months
Package Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton


Compatible Touch Screen Display Panel , 19 Inch Large Capacitive Touch Screen

Advantage:

- Capacitive touch technology.
-Highest resolution, sensitive and fast response
- Easy to install with LCD monitor
- Dustproof and Waterproof maintenance free.
- Touch screens can be built in specific dimensions requested by clients in custom orders
- Flexible interaction; waterproof presentation, Gloves touch,10mm glass, replaceable cover glass and anti-interference presentation.


Application:

- Point-of-information kiosks
- Vending and ticket sales
- Electronic catalogs
- Gaming, lottery, and amusement
- Public pay phones
- Multimedia marketing
- Banking/financial transactions
- Industrial control rooms
- Computer-based training
Compatible Touch Screen Display Panel , 19 Inch Large Capacitive Touch Screen
