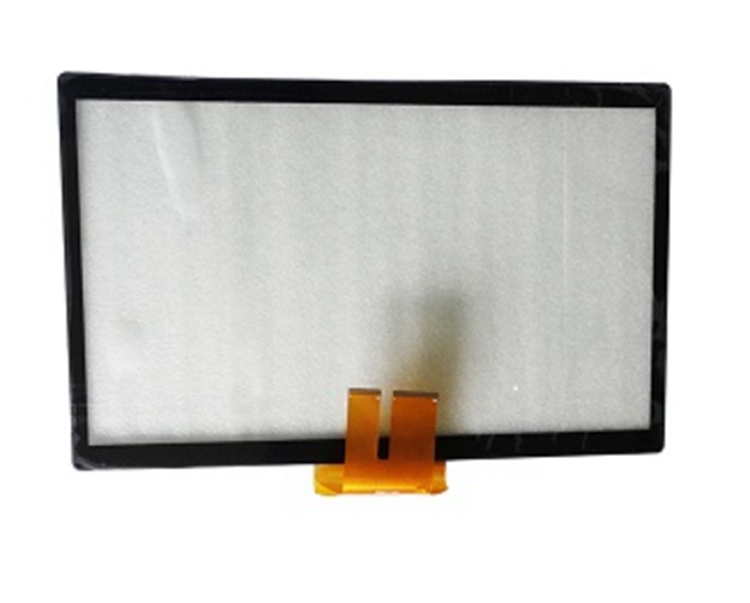

55 Inch Capacitive Multi Touch Screen Overlay For Totem Touch Screen And Touch All In One Computer
55 Inch Capacitive Multi Touch Screen Overlay For Totem Touch Screen And Touch All In One Computer
55 Inch Capacitive Multi Touch Screen Overlay For Totem Touch Screen And Touch All In One Computer
55 Inch Capacitive Multi Touch Screen Overlay For Totem Touch Screen And Touch All In One Computer
Specifications
Brand Name :
ZXTLCD
Model Number :
ZXT-D550-10B
Certification :
CE/Rohs/FCC/ERP Energy Label
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiate
Payment Terms :
T/T,Western Union, Alibaba trade assurance
Supply Ability :
5,000 pcs per month
Delivery Time :
3-5 workdays

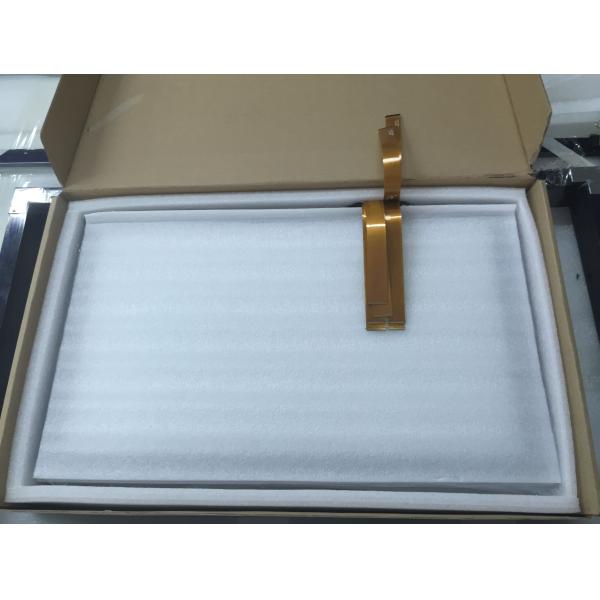

Packaging Details :
wooden case, carton, flight case are option
Size :
55''
Touch Type :
Capacitive touch
Glass :
Tempered glass
Touch time :
Unlimited
Interface :
USB
Function :
Plug and play
Description

55 Inch Capacitive Multi Touch Screen Overlay For Totem Touch Screen And Touch All In One Computer

Specification:

Cover glass:It is tempering glass.oval,round,squareness are optional.Thickness can be 1.1mm,2mm,3mm,4mm,5mm,6mm and so on.limit is about 15mm.Hardness always is 6H,7H and 8H is ok,it is up to you.Anti-glare(AG),Anti-fingerprint(AF),Anti-reflection(AR) are available.Customization is available.

Sensor glass:It is not tempering glass.Each size just have 1 kind of sensor glass.

Capacitive touch screen technology

Capacitive touch screen is a four-storey glass screen surface and laminated within the glass screen is coated with a layer of ITO, the outermost layer is a thin layer of silica glass, laminated ITO coating as a face, four electrode leads in the four corners, inner ITO good shielding to ensure a good working environment.
When finger touch the metal layer that is, because the body farm, users and touch-screen surface with a coupling capacitor, high frequency current, capacitance is a direct conductor, so fingers sucked away a very small amount of current from the contact point. The respectively current outflow from the touch electrode on the four corners of the screen, and flows through the four electrode current is proportional to the distance from the fingers to the four corners, controller through the accurate calculation of the four current percentage, came to the location of the touch point.

55 Inch Capacitive Multi Touch Screen Overlay For Totem Touch Screen And Touch All In One Computer

Produt Specification

Interface Type: USB
Resolution 4096x4096
Screen Ratio 4:3
Material Glass + Glass or PET + Glass
Certificates CE, FCC, RoHS
Input method Finger or touch pen
Position accuracy 2~5mm
Operating Voltage 3.3V adjustable
Operating current 2.5~10mA Depends on IC
Response time Less than 10ms
Touch action force 30~60g
Operating temperature -10°C~60°C
Storage temperature -20°C~80°C
Surface hardness ≥7H
Working environment Under sunlight, indoor and outdoor
Transparency ≥92%
Isolation resistance ≥20MΩ DC 25V
The number of hits ≥50000000/point
Warranty 1 year
Support Systems Windows 2000/Windows XP/Win 7/ Win 8/Windows NT/Linux/Mac

55 Inch Capacitive Multi Touch Screen Overlay For Totem Touch Screen And Touch All In One Computer

Capacitive touch screen
> Can withstand more than 50000000 point
> 4096x4096 Resolution
> USB Interface
> High accuracy and sensitivity
> Glass + Glass or PET + Glass
> Finger, gloved hand and touch pen activation
> Sensitive and fast response
> Our products have passed CE, FCC, ROHS certification!

Advantage:

-Capacitive touch technology.

-Highest resolution, sensitive and fast response

-Easy to install with LCD monitor

-Dustproof and Waterproof maintenance free.

-Touch screens can be built in specific dimensions requested by clients in custom orders

-Flexible interaction; waterproof presentation, Gloves touch,10mm glass, replaceable cover glass and anti-interference presentation.

55 Inch Capacitive Multi Touch Screen Overlay For Totem Touch Screen And Touch All In One Computer

Application:

-Point-of-information kiosks

-Vending and ticket sales

-Electronic catalogs

-Gaming, lottery, and amusement

-Public pay phones

-Multimedia marketing

-Banking/financial transactions

-Industrial control rooms

-Computer-based training

55 Inch Capacitive Multi Touch Screen Overlay For Totem Touch Screen And Touch All In One Computer

If you have any other questions, please contact our salesman as soon as possible.
