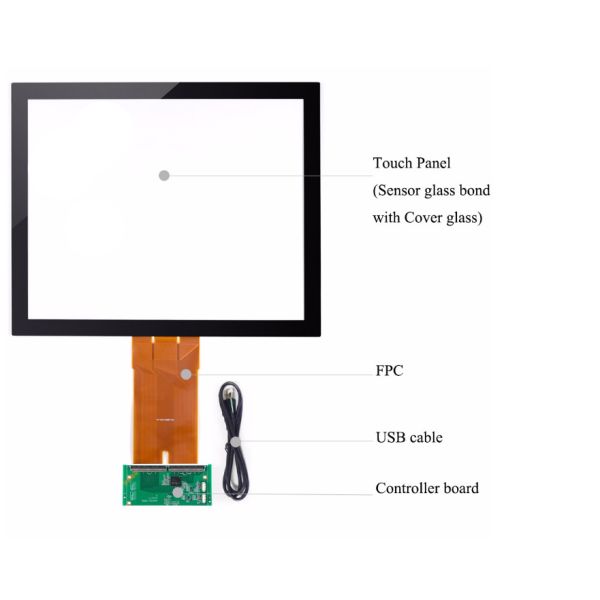

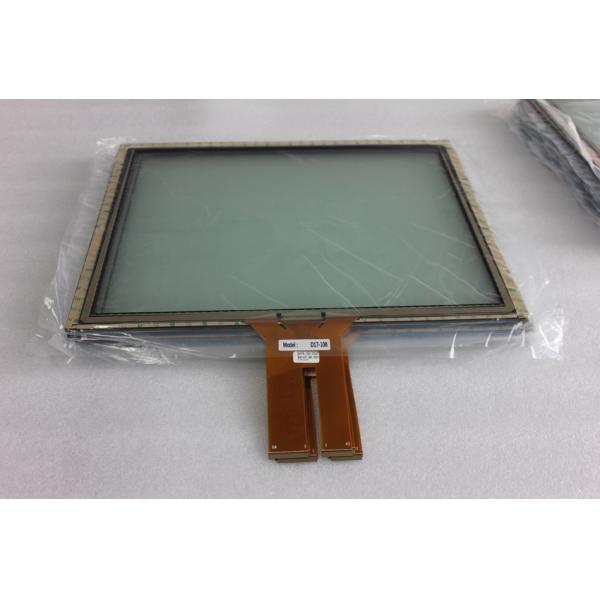

65 Inch Pcap Capacitive Multi Touch Screen Panel Usb Waterproof Touch Screen

(PCAP)Capacitive Multi Touch Screen Specification:

ZXT's projected capacitive touch screen is developed by American expert,used high quality raw material imported from Japan,and the quality control is under the super vision of Taiwanese esperienced technical stuff.The item has long life,high stability,high transmittance,large size,maintenance free features,and is idea for smart phone,trblet PC,Gps

Capacitive touch screen technology

Capacitive touch screen is a four-storey glass screen surface and laminated within the glass screen is coated with a layer of ITO, the outermost layer is a thin layer of silica glass, laminated ITO coating as a face, four electrode leads in the four corners, inner ITO good shielding to ensure a good working environment.
When finger touch the metal layer that is, because the body farm, users and touch-screen surface with a coupling capacitor, high frequency current, capacitance is a direct conductor, so fingers sucked away a very small amount of current from the contact point. The respectively current outflow from the touch electrode on the four corners of the screen, and flows through the four electrode current is proportional to the distance from the fingers to the four corners, controller through the accurate calculation of the four current percentage, came to the location of the touch point.

Advantage:

-Capacitive touch technology.

-Highest resolution, sensitive and fast response

-Easy to install with LCD monitor

-Dustproof and Waterproof maintenance free.

-Touch screens can be built in specific dimensions requested by clients in custom orders

-Flexible interaction; waterproof presentation, Gloves touch,10mm glass, replaceable cover glass and anti-interference presentation.

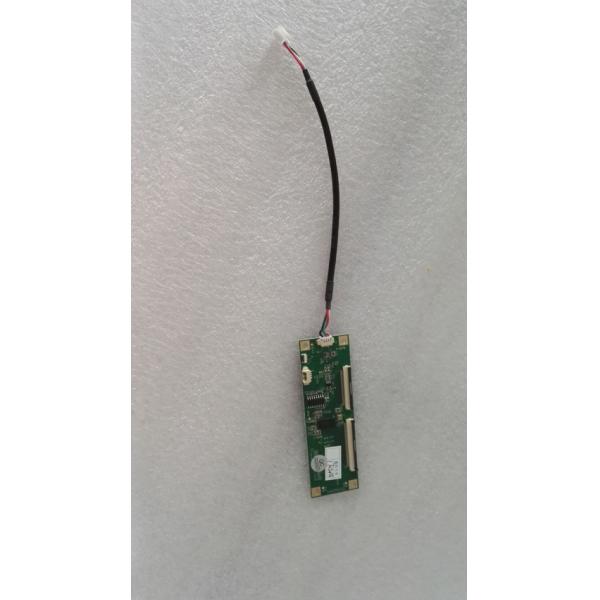

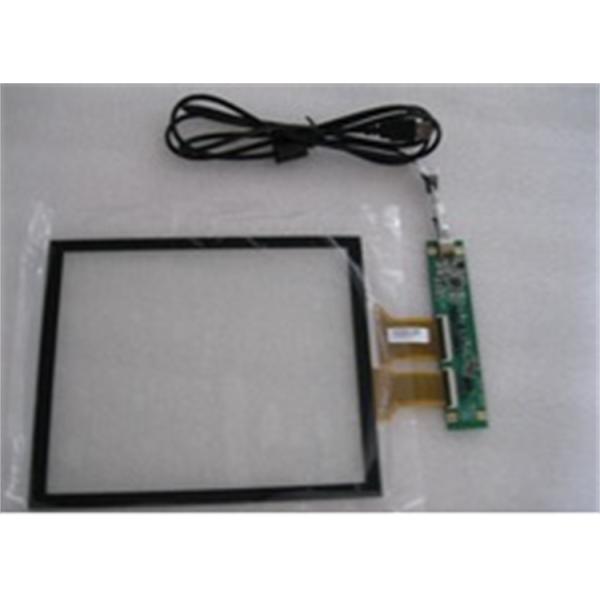

Capacitive Multi Touch Screen Controller Picture

OS	Version	Interfaces
Windows	Windows 8(Need logo submission) Windows 7 Windows Vista, XP/2000 Windows CE.net/5.0/6.0/7.0 Windows Embedded Windows XP Tablet PC edition	USB/RS232
Linux	Distribution based on Kernel 2.6.24 and later. (Ubuntu/Linux Mint Debian Fedora Red Hat/CentOS Magaie/Mandriva/Mandrake SUSE/openSUSE	USB/RS232
	Android 2.3 ~ 4.4	USB/RS232
Mac	Mac OS, Mac OS X (PowerPC, Intel CPU)	USB
QNX	QNX RTOS v6.3	USB/RS232

Projected Capacitive Touch Panel Specification

---The specification of 65 inch touch screen---
Specification
Size	65 inch
Product name	65 inch capacitive touch screen
Model number	ZXT-D65-10B
Type	Capacitive touch screen
Struture	CTP(Glass+Glass)
Thickness of cover glass	1.1 mm
Touch screen solution	COB(Chip on the board)
Touch controller	EETI
Operating system	Win 7,win8,win ce,android,Linux,Mac
Interface of CTP	I2C/USB/RS232
Surface Hardness	6H
Transparency	90%min
Touch Points	10 points
Operating temp	-20 to 70 degree
General Business Clauses
MOQ	1 piece
Lead time	Samples in stocks,2~4 weeks for mass production
Trade Terms	EXW or FOB
Payment	100% Paypal or T/T or Western union in advanc for samples , 50% T/T in advance and 50% before delivery for mass production
Warranty	12 months
Package	Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton

Application:

-Point-of-information kiosks

-Vending and ticket sales

-Electronic catalogs

-Gaming, lottery, and amusement

-Public pay phones

-Multimedia marketing

-Banking/financial transactions

-Industrial control rooms

-Computer-based training

If you have any other questions, please contact our salesman as soon as possible.
