Industrial 17 Inch Multi Touch Screen Panel Kit Dustproof For All In One PC
Industrial 17 Inch Multi Touch Screen Panel Kit Dustproof For All In One PC
Industrial 17 Inch Multi Touch Screen Panel Kit Dustproof For All In One PC
Industrial 17 Inch Multi Touch Screen Panel Kit Dustproof For All In One PC
Specifications
Brand Name :
ZXTLCD
Model Number :
ZXT-D17-10B
Certification :
CE/Rohs/FCC/ERP Energy Label
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiate
Payment Terms :
T/T,Western Union, Alibaba trade assurance
Supply Ability :
5,000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight case are option
Size :
17''
Input Method :
Glove/Pen..etc
Touch Screen Type :
Capacitive Touch
Transmittance :
>85%
Operation System :
Windows XP,7,8,10/Android/Linux,Mac
Touch Points :
1-10 points
Description

17'' Industrial Touch Screen Panel Kit With Touch Screen Glove/Pen For All In One Touch Screen Panel PC

1. Product Description

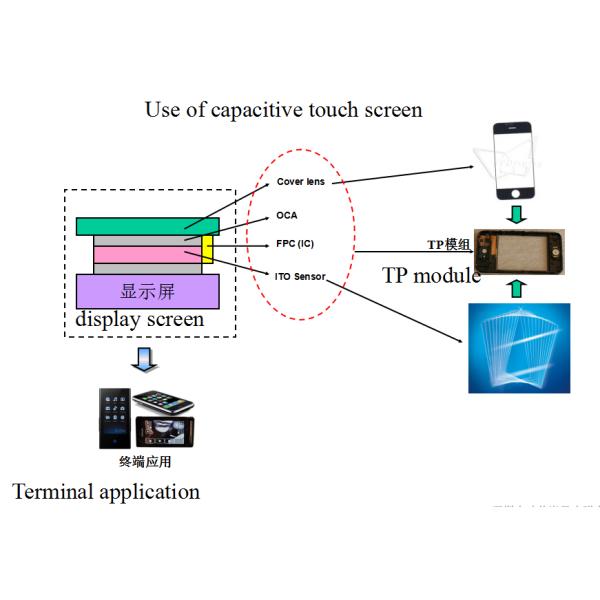

What's G+G Projected Capactive Touch Screen include ?

Glass Cover Lens + Glass ITO Sensor ( SITO or DITO ) + Control Board( PCB Board )

Standard size: 15'' (4:3) 15.6'' (16:9) 17''(5:4) 17.3'' (16:9)
18.5''(16:9) 19''(16:10/5:4) 19.5''(16:9 ) 21.5'' (16:9) 23.8( 16:9) 24'' (16:9) 27'' (16:9) 31.5'' (16:9) 42'' (16:9) 46'' (16:9) 55''65''

AG/AR/AF is optional.

Cover lens(Thickness & measurement), even size, can be customized.

Advantage:

- Capacitive touch technology.

- Highest resolution, sensitive and fast response

- Easy to install with LCD monitor

- Dustproof and Waterproof maintenance free.

- Touch screens can be built in specific dimensions requested by clients in custom orders

- Flexible interaction; waterproof presentation, Gloves touch,10mm glass, replaceable cover glass and anti-interference presentation.

Industrial 17 Inch Multi Touch Screen Panel Kit Dustproof For All In One PC

2. Specification

1) Product Characteristics

(Item) (Spec.) (Remarks)
(Product structure) G+G
(AVdimensiondescription) 17 inch
(V.A. Size) 338.9*272mm(±0.2mm)
(Total Thickness) 4.3mm (±0.15mm)
(Outline Dimension) 377*309m(0/-0.2mm) Silk black
(O.D. Fillet) R2mm(-0.2mm)×4
(Coverlens Thickness) 1.1mm(±0.05mm)
(ITO Glass Size) 357*209.4(±0.2mm)
(ITO Glass Thickness) 0.2mm(±0.05mm)

Industrial 17 Inch Multi Touch Screen Panel Kit Dustproof For All In One PC

Items Specification
Operation Conditions -40C~+85C at Min 20% to Max 90%RH
Storage Conditions -40C~+125C at Min 20% to Max 90%RH
Electrostatic Discharge (Non operation)

Contact: ±4kv, 3 times/1 point, 1 time/1 sec,

Total 3 point

Air: ±8kv, 3 times/1 point, 1 time/1 sec,

Total 3 point

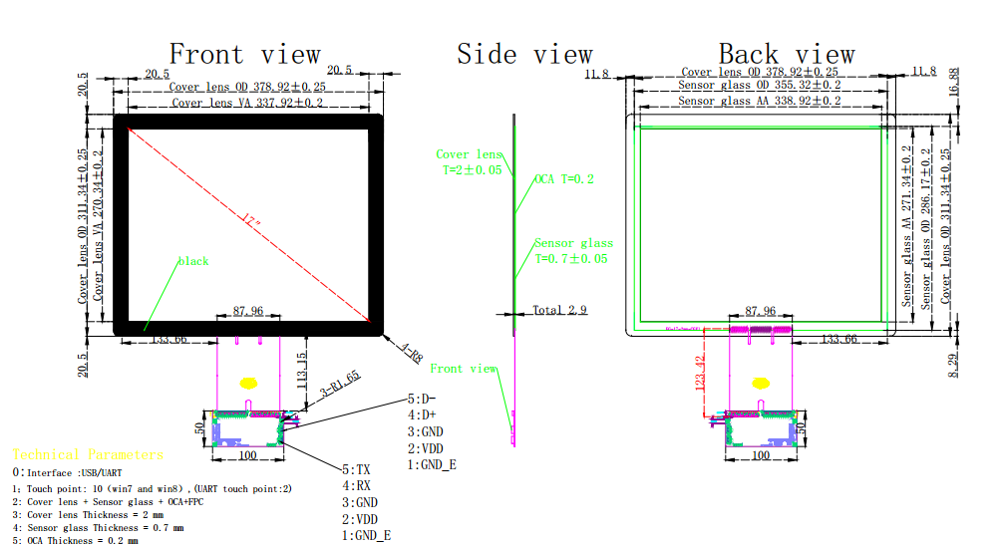

2) Drawing

Industrial 17 Inch Multi Touch Screen Panel Kit Dustproof For All In One PC

3. Payment & shipping

Industrial 17 Inch Multi Touch Screen Panel Kit Dustproof For All In One PC
