Large 49 Inch Multi Touch Screen With USB Plug And Play Stable Performance
Large 49 Inch Multi Touch Screen With USB Plug And Play Stable Performance
Large 49 Inch Multi Touch Screen With USB Plug And Play Stable Performance
Large 49 Inch Multi Touch Screen With USB Plug And Play Stable Performance
Specifications
Brand Name :
ZXTLCD
Model Number :
ZXT-D550-10B
Certification :
CE/Rohs/FCC/ERP Energy Label
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiate
Payment Terms :
T/T,Western Union, Alibaba trade assurance
Supply Ability :
5,000 pcs per month
Delivery Time :
3-5 working days for sample
Packaging Details :
wooden case, carton, flight case are option
Size :
55''
Connection :
USB
Plug and Play :
support
Input method :
finger or touch pen
Response time :
less than 10ms
Structure :
Glass+Glass
Description

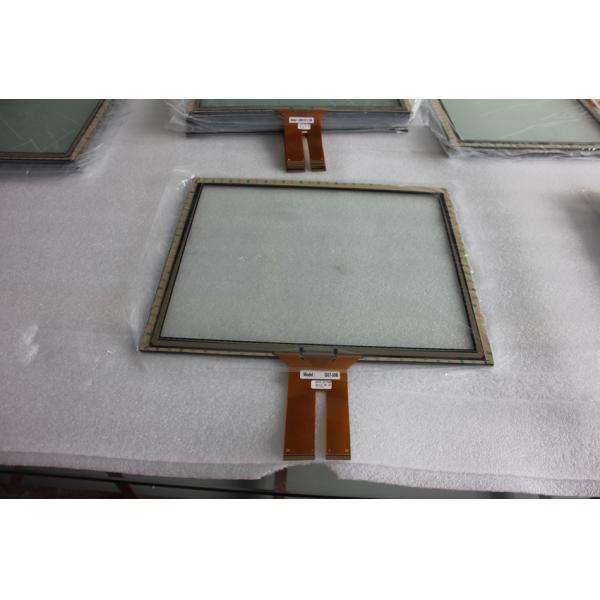

Excellent Performance Large Size 49 Inch Capacitive Touch Screen Digitizer With USB Plug And Play

Capacitive touch screen technology

Capacitive touch screen is a four-storey glass screen surface and laminated within the glass screen is coated with a layer of ITO, the outermost layer is a thin layer of silica glass, laminated ITO coating as a face, four electrode leads in the four corners, inner ITO good shielding to ensure a good working environment.
When finger touch the metal layer that is, because the body farm, users and touch-screen surface with a coupling capacitor, high frequency current, capacitance is a direct conductor, so fingers sucked away a very small amount of current from the contact point. The respectively current outflow from the touch electrode on the four corners of the screen, and flows through the four electrode current is proportional to the distance from the fingers to the four corners, controller through the accurate calculation of the four current percentage, came to the location of the touch point.

Large 49 Inch Multi Touch Screen With USB Plug And Play Stable Performance

Capacitive touch screen
> Can withstand more than 50000000 point
> 4096x4096 Resolution
> USB Interface
> High accuracy and sensitivity
> Glass + Glass or PET + Glass
> Finger, gloved hand and touch pen activation
> Sensitive and fast response
> Our products have passed CE, FCC, ROHS certification!

Large 49 Inch Multi Touch Screen With USB Plug And Play Stable Performance

Produt Specification

Interface Type: USB
Resolution 4096x4096
Screen Ratio 4:3
Material Glass + Glass or PET + Glass
Certificates CE, FCC, RoHS
Input method Finger or touch pen
Position accuracy 2~5mm
Operating Voltage 3.3V adjustable
Operating current 2.5~10mA Depends on IC
Response time Less than 10ms
Touch action force 30~60g
Operating temperature -10°C~60°C
Storage temperature -20°C~80°C
Surface hardness ≥7H
Working environment Under sunlight, indoor and outdoor
Transparency ≥92%
Isolation resistance ≥20MΩ DC 25V
The number of hits ≥50000000/point
Warranty 1 year
Support Systems Windows 2000/Windows XP/Win 7/ Win 8/Windows NT/Linux/Mac

Advantages

1) Capacitive touch technology,have realizes multi-touch capabilities

2). independent single output.

3). Higher resolution,sensitive and quickly response.

4). Thickness and Dimension of Cover Lens can be requested by clients in custom

5). Water-proof and dust-proof maintenance free

Large 49 Inch Multi Touch Screen With USB Plug And Play Stable Performance

Our Services

Sample order and small quantity orders will deal with prompt attention.

1. Your message, inquiry, question will be replied in 24 hours.
2. OEM is welcome. Print your brand long on the product and booting logo are available and free. Customized packaging box are free
3. ODM is welcome. Professional Engineer Department supply the customized design for you.
4. 12 months warranty. During valid period, any quality problem will be repaired for you free and bear the shipping cost of sending back to you.
5. Quality control department for testing new products and every lights before sending out.
