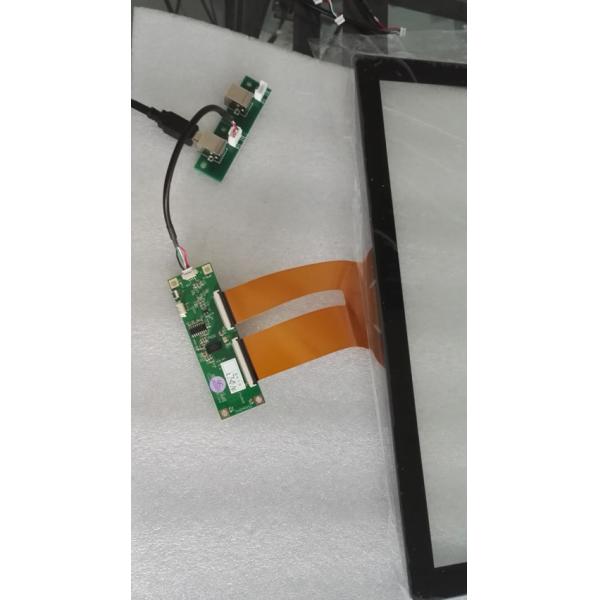

Android Win7 Win8 Capacitive Touch Screen Kit , 18.5 Inch Projected Capacitive Touch Panel
Android Win7 Win8 Capacitive Touch Screen Kit , 18.5 Inch Projected Capacitive Touch Panel
Android Win7 Win8 Capacitive Touch Screen Kit , 18.5 Inch Projected Capacitive Touch Panel
Android Win7 Win8 Capacitive Touch Screen Kit , 18.5 Inch Projected Capacitive Touch Panel
Specifications
Brand Name :
ZXTLCD
Model Number :
ZXT-D185-10B
Certification :
CE/Rohs/FCC/ERP Energy Label
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiate
Payment Terms :
T/T,Western Union, Alibaba trade assurance
Supply Ability :
3,000 pcs per month
Delivery Time :
within 7 workdays after receive the payment
Packaging Details :
wooden case, carton, flight case are option
Size :
18.5 inch
Interface :
USB
Touch Points :
10 Points
Operation Systems :
Windows 7/8/10, Android
Response time :
less than 10ms
warranty :
1 Year
Description

18.5 Inch 10 Point Capacitive Touch Screen With USB Interface Support Android Win7 Win8

Capacitive touch screen
> Can withstand more than 50000000 point
> 4096x4096 Resolution
> USB Interface
> High accuracy and sensitivity
> Glass + Glass or PET + Glass
> Finger, gloved hand and touch pen activation
> Sensitive and fast response
> Our products have passed CE, FCC, ROHS certification!
Android Win7 Win8 Capacitive Touch Screen Kit , 18.5 Inch Projected Capacitive Touch Panel

Capacitive touch screen technology
Capacitive touch screen is a four-storey glass screen surface and laminated within the glass screen is coated with a layer of ITO, the outermost layer is a thin layer of silica glass, laminated ITO coating as a face, four electrode leads in the four corners, inner ITO good shielding to ensure a good working environment.
When finger touch the metal layer that is, because the body farm, users and touch-screen surface with a coupling capacitor, high frequency current, capacitance is a direct conductor, so fingers sucked away a very small amount of current from the contact point. The respectively current outflow from the touch electrode on the four corners of the screen, and flows through the four electrode current is proportional to the distance from the fingers to the four corners, controller through the accurate calculation of the four current percentage, came to the location of the touch point.

Android Win7 Win8 Capacitive Touch Screen Kit , 18.5 Inch Projected Capacitive Touch Panel

Produt Specification

Interface Type: USB
Resolution 4096x4096
Screen Ratio 4:3
Material Glass + Glass or PET + Glass
Certificates CE, FCC, RoHS
Input method Finger or touch pen
Position accuracy 2~5mm
Operating Voltage 3.3V adjustable
Operating current 2.5~10mA Depends on IC
Response time Less than 10ms
Touch action force 30~60g
Operating temperature -10°C~60°C
Storage temperature -20°C~80°C
Surface hardness ≥7H
Working environment Under sunlight, indoor and outdoor
Transparency ≥92%
Isolation resistance ≥20MΩ DC 25V
The number of hits ≥50000000/point
Warranty 1 year
Support Systems Windows 2000/Windows XP/Win 7/ Win 8/Windows NT/Linux/Mac

Advantages

1)Capacitive touch technology,have realizes multi-touch capabilities
2).independent single output.
3).Higher resolution,sensitive and quickly response.
4).Thickness and Dimension of Cover Lens can be requested by clients in custom
5).Water-proof and dust-proof maintenance free

Application:

- Point-of-information kiosks
- Vending and ticket sales
- Electronic catalogs
- Gaming, lottery, and amusement
- Public pay phones
- Multimedia marketing
- Banking/financial transactions
- Industrial control rooms
- Computer-based training
