Specifications
Brand Name :
ZXTLCD
Model Number :
ZXT-T70-10A
Certification :
CE/Rohs/FCC/ERP Energy Label
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiate
Payment Terms :
T/T,Western Union, Alibaba trade assurance
Supply Ability :
5,000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight case are option
Life time :
7-9 years life span
System :
windowsxp/7/8
work through glass :
Yes
Color :
transparent
Warranty :
12 Months
power consumption :
Max 0.5 W
Description

70'' Inch 10 Points Clear Transparent Nano Multi Touch Film Interactive Projection Foil Interactive Touch

ZXT Interactive Touch Foils are supplied with an electrostatic cling layer which makes

them suitable for both permanent and temporary installations. The new improved touch foil have an

upgraded driver with USB connection which has been digitally signed off by Microsoft (EMC approved)

and are UL, FCC and CE approved (RoHS compliant). The Interactive Foils are combined with a screen

technology to create an interactive touch screen display. Our main market for the Touch foils is 'thru-glass'

interactive displays for store window applications, where the foil is combined with our range of projection

films and high brightness LCD TFT screens. Such as interactive shop windows, trade shows, museums,

meeting rooms and much more.

Standard Size of Interactive Touch Foil:

17 inch to 120inch (4: 3 and 16: 9 ratio). All standard sizes are being shipped to dealers worldwide within

one week (when in stock). Each touch foil comes with USB connector with cable Or RS232 Cable, driver

software, installation video's and user guide.

Types of Interactive Touch Foil

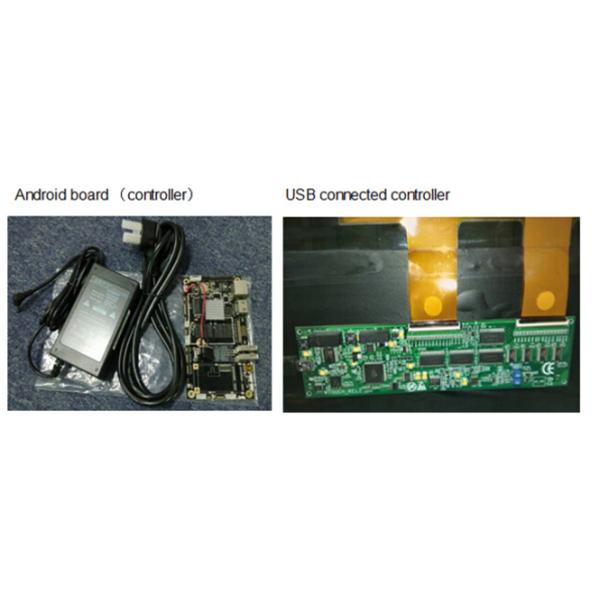

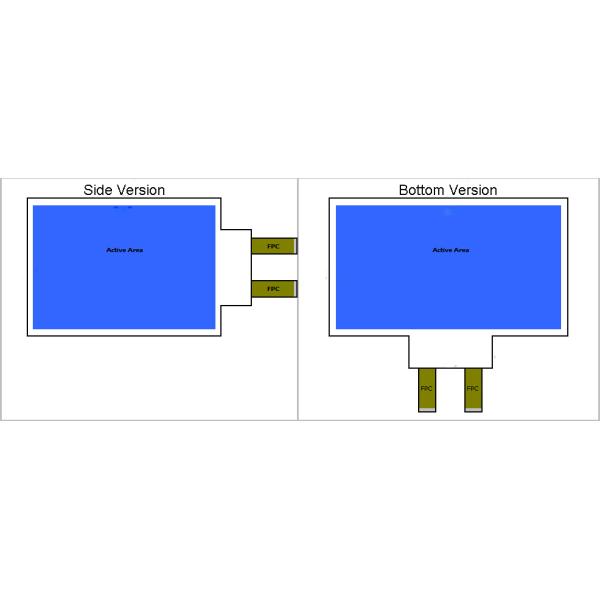

Touch foil type for paste Tail version Touch controller Foil ratio Touch points
Water-adhesive (removable) Base or bottom USB interface 16:9 (17”-120”) 2,4,10,20,40 points
Adhesive (permernent) Side or short USB interface 4:3 (40”-120”)

Clear Transparent Nano Projected Capacitive Touch Film , 70 Inch 10 Points Touch Foil Film

Advantages of Interactive Touch Foil

1. Super-thin,and transparent appearance

2. High definition, Stable touch

3. Well-positioned ,and support multi touch points

4. Through the glass or other objects to touch just like gesture

5. The size can be customized

Applications of Interactive Touch Foil

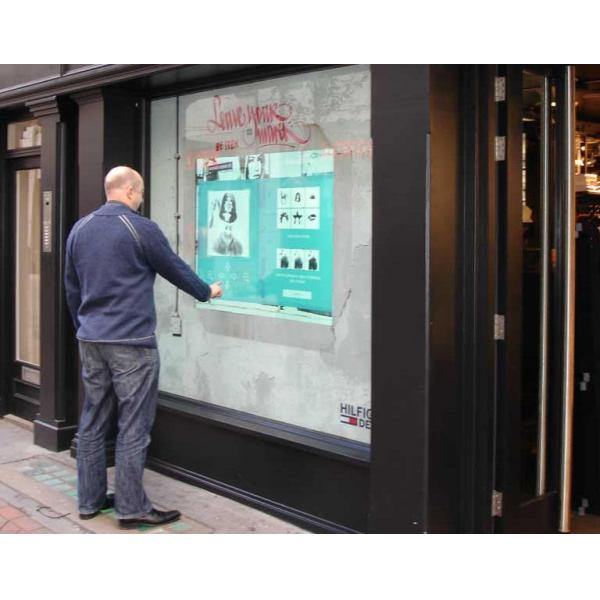

Suitable for Store window displays,

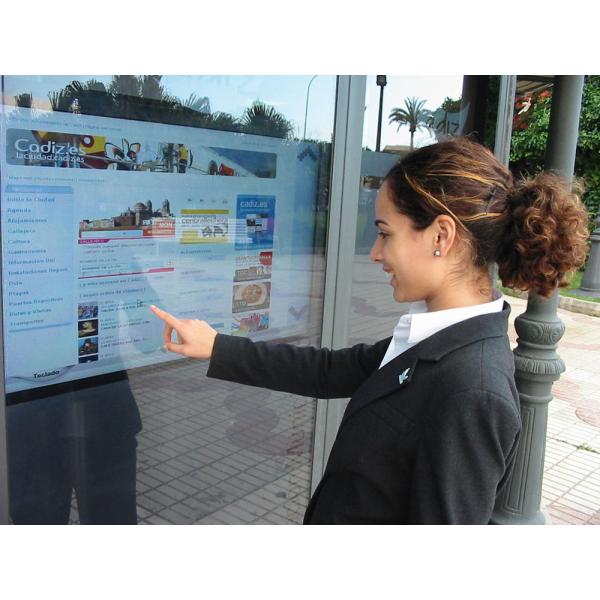

Indoor / outdoor kiosks,Exhibitions,

Visitor attractions,

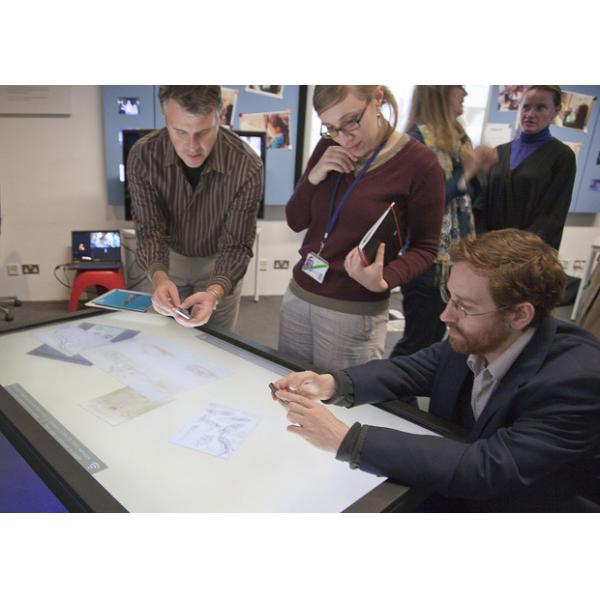

Museums Touch tables,

Training,meeting rooms,etc.

Clear Transparent Nano Projected Capacitive Touch Film , 70 Inch 10 Points Touch Foil FilmClear Transparent Nano Projected Capacitive Touch Film , 70 Inch 10 Points Touch Foil FilmClear Transparent Nano Projected Capacitive Touch Film , 70 Inch 10 Points Touch Foil FilmClear Transparent Nano Projected Capacitive Touch Film , 70 Inch 10 Points Touch Foil Film

Specifications of Interactive Touch Foils:

Induction method The improved projected sensing technology, criss-cross X, Y nanowires constitute sensing matrix
Touch size 17"~120" can be customized
Touch accuracy No drift, the deviation is about 1~3mm
Calibration way software calibration
Induction thickness (penetration) Adjusted by software to adapt to various thickness of glass, even wear gloves to produce touch-sensitive, can penetrate non-metallic materials about the thickness of 20 mm (middle to allow air layer), the induction can even penetrate glass thickness aboutof 25mm
Scanning frequency 60Hz~130hz
Output way USB 2.0 (HID public interface to USB Mini B interface)
Compatibility system WIN7 /WIN8 /Linux (ubantu 12.04.4,kernel version:3.11.0-15-generic) / Android4.2 or above ( kernel veersion>A20->3.3.0,RK3188->3.0.36) etc.
Temperature range -20°C~60°C
Humidity range 0% RH to 95% RH (without condensation neighborhood)
Transmittance >93%
Power consumption Max 0.5W
Product Certification CE,FCC,ROHS
EMC EN61000-6-1:2007 EN61000-6-3:2007+A1:2011

Packaging & Shipping

Clear Transparent Nano Projected Capacitive Touch Film , 70 Inch 10 Points Touch Foil Film

Our Services

1. Focus on customer requirement,Provide customization service

2. More than 20 RD engineers fouce on touch screen techology, Fast provide solutions for customer

3. Automatic production Sealed dust-free workshops CE,UL, FCC approved

4. Fast respone and Fast delivery
