High Accuracy IR Multi Multi Touch Panel Kit , Large Format Touch Screen Monitor
High Accuracy IR Multi Multi Touch Panel Kit , Large Format Touch Screen Monitor
High Accuracy IR Multi Multi Touch Panel Kit , Large Format Touch Screen Monitor
High Accuracy IR Multi Multi Touch Panel Kit , Large Format Touch Screen Monitor
Specifications
Brand Name :
ZXTLCD
Model Number :
ZXT-T430-10A
Certification :
CE/Rohs/FCC/ERP Energy Label
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiate
Payment Terms :
T/T,Western Union, Alibaba trade assurance
Supply Ability :
5,000 pcs per month
Delivery Time :
3-5 days after receive the payment
Packaging Details :
wooden case, carton, flight case are option
Material :
Aluminum
Touch Points :
10 Points
Resolution :
32768*32768
Touch Method :
Finger or gloved hand (rubber ,cloth or leather)
Touch Activation Force :
No minimum touch activation force is required
Minimum Touch Object :
5mm
Description

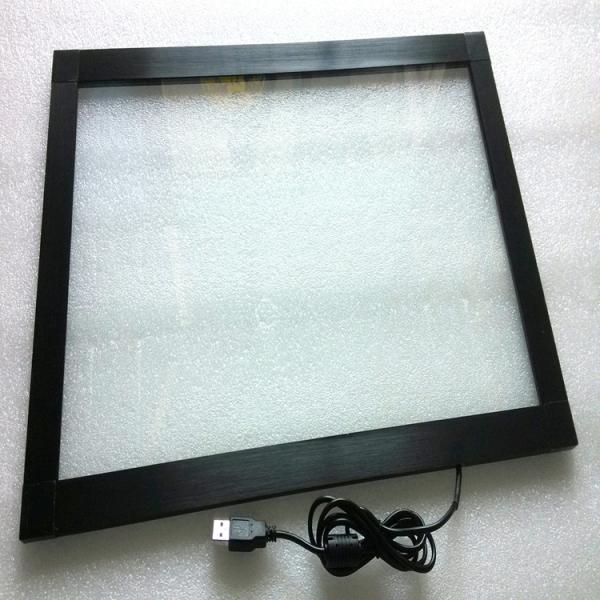

43'' 10 Points Touch Aluminum Infrared IR Multi Touch Screen Kit For Monitor

What is "Multitouch"?

Multi-touch is a method of input on a touchscreen that allows two or more fingers to be used on the screen at one time.ZXT's Touch Frame is famous for introducing multi-touch to the game machine,KIOSK interactive display,Adverstising Display in the world by using it to allow pinching and stretching gestures on the screen to control zooming. Multi-touch is something typically associated with the newest Infrared touchscreen technology.

Advantage
-- Multi-touch function
-- Support zoom in/out, display rotation
-- Withstands severe environments
-- Stable, no-drift calibration performance
-- Vandal- and abrasion-resistant screens, ideal for rugged applications
-- Parallax-free performance for LCD displays
-- Sealable against contaminants
-- Operable in various light conditions, indoor and outdoor

High Accuracy IR Multi Multi Touch Panel Kit , Large Format Touch Screen Monitor

Features
1. High-speed, up to 300 dots coordinate/second
2. Highly Responsive, First dot(click):8ms, continuously(writing):3ms
3. High accuracy, automatic detection and reset function design, high reliability, track smooth
4. Fault-tolerant design, Special structure, anti-static, anti-electromagnetic interference
5. Proprietary anti-ray decline of circuit design

Screen Parameters

Transmittance ≥92%, 100% max (without Glass)
Outline Dimension 756(W±2.0)X450(D± 2.0)X8mm(H± 0.5)
Detection Form Infrared rays interception detection form
Active Area 697mm(W)x392mm(D)
Resolution 4096(W)x4096(D)
Output Format Coordinate Output
Optical Element Pace 5.97mm
Minimum Touch body Diameter >5mm
Response Speed 16ms—25ms
Touch Accuracy ±1.5mm
Touch Limitation No Limitation

Electricity

Scan Frequency 50Hz
USB1.1 Connector type A type
Transmission speed 12Mbps
Signal +5V, D-, D+, GND
Connector USB A Port connector for cable
Temperature Range Operating -40°C~70°C
Storage -40°C ~80°C
Humidity Operating 0%-85%, non condensing
Storage 0%-95%, non condensing
Power Supply DC 5V ± 5%, 270mA~290mA
Communication Interface USB Port or RS232 (Plug & Play, No Drive)
Communication Distance 25Meter

High Accuracy IR Multi Multi Touch Panel Kit , Large Format Touch Screen Monitor

Software

Operation System WINDOWS 2000/2003/XP/Vista & LINUX
Scanning Mode Auto Start, Always Scanning
Movement Mode Input Point, Finishing Point, Following

High Accuracy IR Multi Multi Touch Panel Kit , Large Format Touch Screen Monitor

High Accuracy IR Multi Multi Touch Panel Kit , Large Format Touch Screen Monitor

Are you a factory?

Yes,100% pure factory,you're welcome to visit and audit us anytime.OEM/ODM order is welcome!

What's your minimum order?

1pcs Sample.

Could you give me better price&service?

Better price and service always for you! Win-win make us go for long!

What about your After-Sale Service?

1. Supply OEM&ODM order,independent QC department,more times testing and checking well

2. 100% QC pass checking and testing before shipping.

3. 12 months of warranty.

4. CE,RoHs.

What is your advantage?

1. We can design for you.

2. We can open customers own mold for you.

3. We can offer high quality product & reasionable price for you.

4. We can offer a good after-sale service for you.

5. We have strong and powerful design team.

6. We have quick delivery and small order also welcome.
