28.1 Inch Narrow Bezel 1920X540 Stretched Bar LCD Display
28.1 Inch Narrow Bezel 1920X540 Stretched Bar LCD Display
28.1 Inch Narrow Bezel 1920X540 Stretched Bar LCD Display
28.1 Inch Narrow Bezel 1920X540 Stretched Bar LCD Display
28.1 Inch Narrow Bezel 1920X540 Stretched Bar LCD Display
28.1 Inch Narrow Bezel 1920X540 Stretched Bar LCD Display
28.1 Inch Narrow Bezel 1920X540 Stretched Bar LCD Display
28.1 Inch Narrow Bezel 1920X540 Stretched Bar LCD Display
Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-BAR281AJSY
Certification :
CE/Rohs/FCC/ERP Energy Label
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
300pcs per month
Delivery Time :
7~10 working days
Packaging Details :
Machine body appearance wrapped in pearl carton firstly, packedin wooden box
Screen size :
28.1" LCD Panel
Active display area :
698.4(H) X 196.43(V)mm
Resolution :
1920(V) X 540(H)
Brightness :
700cd/m2
Viewing angles :
89°/89°/89°/89°(U/D/L/R)
Response time :
9.5ms
CPU :
Rockchip PX30 Quad core ARM Cotex-A35
Interface :
USB2.0/OTG USB/TF/RJ45
Operating voltage :
100-240V(50/60Hz)
Power consumption :
≤30W
Description

28.1 inch Narrow Bezel 1920X540 Stretched Bar Type Lcd Display Ultra Wide Lcd Bar Display

In order to make Lcd Bar Display, we have to cut the bottom away from a traditional LCD panel to get the unique aspect ratio.

28.1 Inch Narrow Bezel 1920X540 Stretched Bar LCD Display

The specification

The specification
Model No Product model ZXTLCD-BAR281AJSY
LCD Screen Panel Screen size 28.1" LCD Panel
Active display area 698.4(H) X 196.43(V)mm
Resolution 1920(V) X 540(H)
Brightness 700cd/m2
Contrast ratio 1200:1
Display color 16.7M
Backlight type WLED
Viewing angles 89°/89°/89°/89°(U/D/L/R)
Response time 9.5ms
Lifespan 50000 hours
Monitor PCB Board CPU Rockchip PX30 Quad core ARM Cotex-A35
RAM 1G DDR3(1 G/2G for optional )
ROM 8G EMMC(8G/16G/32G/64GEMMC for optional)
Memory extension TF Card extension with the highest support for 64GB
System Android 8.1
Internet Support 2.4G WIFI connection
Interfaces 1*USB2.0
1*OTG USB
1*RJ45
Video formats wmv,avi,flv,rm,rmvb,mpeg ,ts,mp4
Photo formats BMP,JPEG,PNG,GIF
machine specification Operating voltage 100-240V(50/60Hz)
Power consumption ≤30W
Product size 741(H)X238.5(V)X47.3(D)mm
Installation Embedded, wall-mounted
Appearance material Metal shell
Net weight ≤4.5KG
Surface treatment Black metal paint
Environmental Storage Environment Temperature:-20℃～60℃
Humidity:5%～95%
Atmospheric Pressure:86kPa～104kPa
Working Environment Temperature:-10℃～50℃
Humidity:10%～85%
Atmospheric Pressure:86KPa～104KPa
Packing list Bar lcd display 1pcs
Power Cable 1Pcs
Support special requirements customization

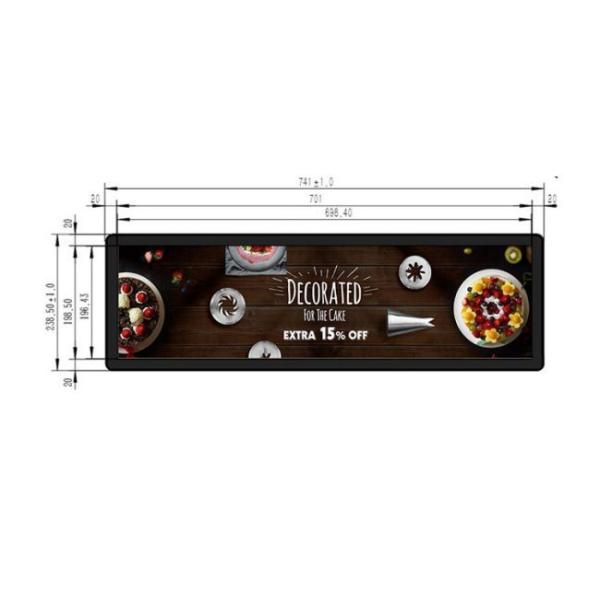

The design drawing as follows :

28.1 Inch Narrow Bezel 1920X540 Stretched Bar LCD Display

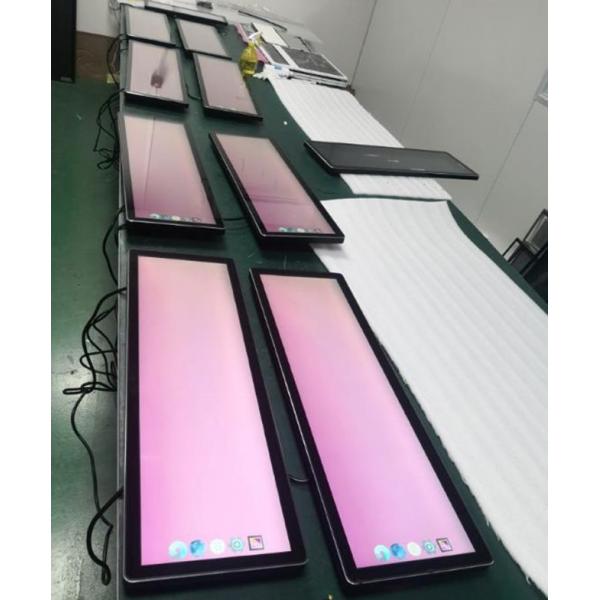

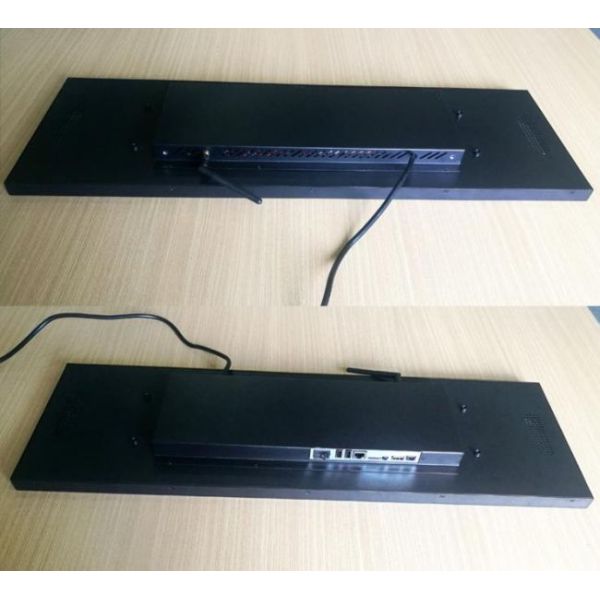

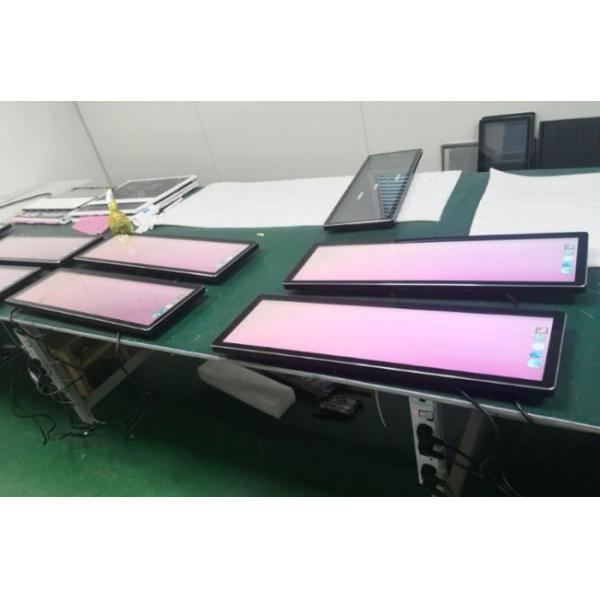

Product Physical Photo as follows :

28.1 Inch Narrow Bezel 1920X540 Stretched Bar LCD Display

In order to provide customer-oriented financial services, the Stretched bar displays can provide timely and accurate financial information; the need for publicity and display such as hospital registration and attending doctors.

28.1 Inch Narrow Bezel 1920X540 Stretched Bar LCD Display

If you would like to discuss your requirement or need any additional information on our Lcd Bar Display, and then please do not hesitate to contact our sales team.
