Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-BAR286AJSY
Certification :
CE/Rohs/FCC/ERP Energy Label
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
300pcs per month
Delivery Time :
7~10 working days
Packaging Details :
Machine body appearance wrapped in pearl carton firstly, packedin wooden box
Screen size :
28.6" LCD Panel
Active display area :
698.4(H) X 196.43(V)mm
Resolution :
1920(V) X 540(H)
Brightness :
700cd/m2
Viewing angles :
89°/89°/89°/89°(U/D/L/R)
Response time :
9.5ms
CPU :
Rockchip PX30 Quad core ARM Cotex-A35
Interface :
USB2.0/OTG USB/TF/RJ45
Operating voltage :
100-240V(50/60Hz)
Power consumption :
≤30W
Description

28.6 inch ultra wide stretched bar LCD advertising player for Retail shop shelf advertising

Features of Stretched bar.

1. High reliability and good stability

The high-bright liquid crystal substrate of the bar-shaped liquid crystal screen is processed by a unique technique. The general TV screen has the characteristics of an industrial-grade LCD screen, with high reliability and good stability, and can be suitable for working in harsh environments.

2. Long service life, energy-saving and environmental protection

The Stretched bar displays use imported aluminum substrates, and the ability to absorb and declare heat with great efficiency minimizes the light attenuation of the LED lamp. The influence of the heat of the backlight on the liquid crystal substrate is minimized, achieving energy saving, long life, effective energy saving, and the product is lighter and thinner.

3. The best flashing effect of intelligent control

The high-brightness Stretched bar LCD displays are equipped with a light-sensing automatic controller, which can automatically adjust the screen brightness according to the surrounding environment so that the screen picture can achieve the best visual effect, and it also achieves energy-saving and extremely low aging of product components.

4. Ultra-high dynamic contrast

The Stretched bar displays have ultra-high dynamic contrast, the color flashing is more full and beautiful, the visual effect is more three-dimensional and vivid, ultra-fast response time, unique black field penetration and backlight scanning skills enhance the visual performance under dynamic images.

5. Excellent wide temperature operating characteristics

The Stretched bar displays can meet the needs of fast launch and clear picture flashing in a low-temperature environment, and it can operate around the clock under natural ambient temperature, which is very suitable for outdoor flashing needs.

6. Wide application field

The Stretched bar display can be used in a wide range of fields: buses, subways, airports, shopping malls, security monitoring, command and dispatch centers, exhibition center display systems, multimedia education, government units, campus studios, video conference systems, multi-function displays Halls, entertainment venues, restaurants, publicity display, brand store image display, TV stations, corporate exhibition halls, etc., can be used indoors and outdoors.

28.6 Inch Ultra Wide Stretched Bar LCD Advertising Player For Retail Shop Shelf

The specification

The specification
Model NoProduct modelZXTLCD-BAR286AJSY
LCD Screen PanelScreen size28.6" LCD Panel
Active display area698.4(H) X 196.43(V)mm
Resolution1920(V) X 540(H)
Brightness700cd/m2
Contrast ratio1200:1
Display color16.7M
Backlight typeWLED
Viewing angles89°/89°/89°/89°(U/D/L/R)
Response time9.5ms
Lifespan50000 hours
Monitor PCB BoardCPURockchip PX30 Quad core ARM Cotex-A35
RAM1G DDR3(1 G/2G for optional )
ROM8G EMMC(8G/16G/32G/64GEMMC for optional)
Memory extensionTF Card extension with the highest support for 64GB
SystemAndroid 8.1
InternetSupport 2.4G WIFI connection
Interfaces1*USB2.0
1*OTG USB
1*RJ45
Video formatswmv,avi,flv,rm,rmvb,mpeg ,ts,mp4
Photo formatsBMP,JPEG,PNG,GIF
machine specificationOperating voltage100-240V(50/60Hz)
Power consumption≤30W
Product size733.5(H)X235(V)X52(D)mm
InstallationEmbedded, wall-mounted
Appearance materialMetal shell
Net weight≤4.5KG
Surface treatmentBlack metal paint
EnvironmentalStorage EnvironmentTemperature:-20℃~60℃
Humidity:5%~95%
Atmospheric Pressure:86kPa~104kPa
Working EnvironmentTemperature:-10℃~50℃
Humidity:10%~85%
Atmospheric Pressure:86KPa~104KPa
Packing listBar lcd display1pcs
Power Cable1Pcs
Support special requirements customization

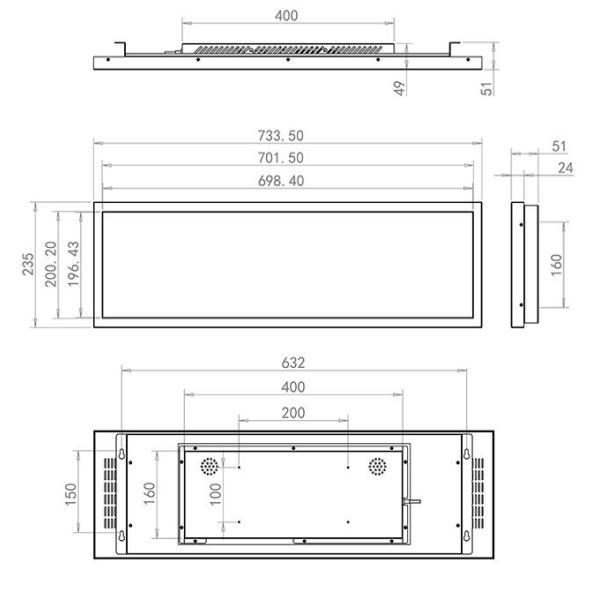

The design drawing as follows :

28.6 Inch Ultra Wide Stretched Bar LCD Advertising Player For Retail Shop Shelf

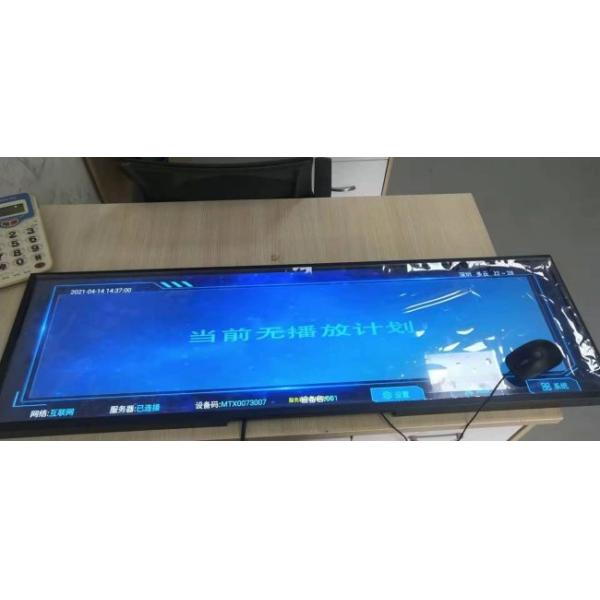

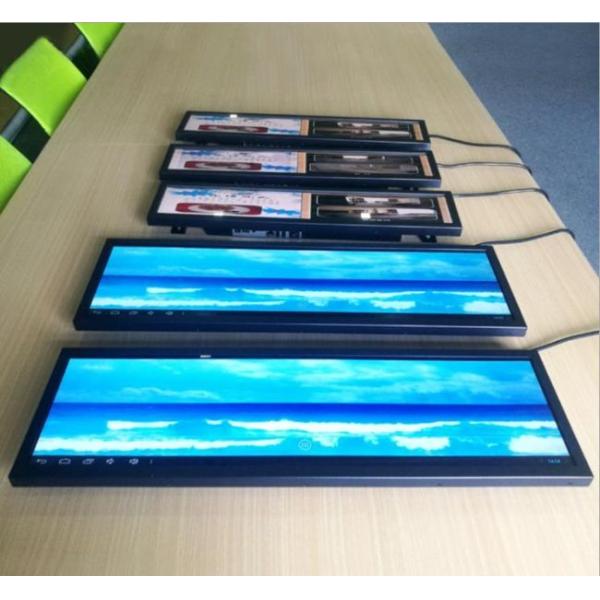

Product Physical Photo as follows :

28.6 Inch Ultra Wide Stretched Bar LCD Advertising Player For Retail Shop Shelf

If you would like to discuss your requirement or need any additional information on our Ultra-wide stretched bar, and then please do not hesitate to contact our sales team.
