19 Stretched LCD Monitor PCAP Touch Panel Integrated Ultra Wide
19 Stretched LCD Monitor PCAP Touch Panel Integrated Ultra Wide
19 Stretched LCD Monitor PCAP Touch Panel Integrated Ultra Wide
19 Stretched LCD Monitor PCAP Touch Panel Integrated Ultra Wide
19 Stretched LCD Monitor PCAP Touch Panel Integrated Ultra Wide
19 Stretched LCD Monitor PCAP Touch Panel Integrated Ultra Wide
19 Stretched LCD Monitor PCAP Touch Panel Integrated Ultra Wide
19 Stretched LCD Monitor PCAP Touch Panel Integrated Ultra Wide
Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-BAR190MTQSP
Certification :
CE/Rohs/FCC/ERP Energy Label
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
300pcs per month
Delivery Time :
7~10 working days
Packaging Details :
Machine body appearance wrapped in pearl carton firstly, packedin wooden box
Screen size :
19" LCD Panel
Active display area :
476.64(H) X 80(V)mm
Resolution :
1920(V) X 540(H)
Brightness :
500cd/m2
Viewing angles :
89°/89°/89°/89°(U/D/L/R)
Lifespan :
50000 hours
Interfaces :
USB2.0 / HDMI*2 / TF/Audio/DC IN
Touch type :
Projected Capacitive Touchscreen
Backlight type :
WLED
Operating voltage :
USB 12V/2A
Description

19" stretched LCD Monitor with PCAP Touch Panel Integrated Bar-Type Ultra Wide Display

Product Features


• Available in a range of Screen Sizes from 16″ to 88″.
• High Brightness Sunlight Readable LED Backlight
• Unique aspect ratio to catch viewers attention
• Available as enclosed monitors or component parts for integration
• Industrial grade LCD solutions for optimum performance and reliability
• PCAP Touch Screen options available
• Digital Signage / Monitors / Touch monitors design options available.

19

The specification

The specification
Model No Product model ZXTLCD-BAR190MTQSP
LCD Screen Panel Screen size 19" LCD Panel
Active display area 476.64(H) X 80(V)mm
Resolution 1920(V) X 540(H)
Brightness 500cd/m2
Contrast ratio 1200:1
Display color 16.7M
Backlight type WLED
Viewing angles 89°/89°/89°/89°(U/D/L/R)
Response time 9.5ms
Lifespan 50000 hours
Main board CPU MSTAR V56(TSUMV56RUU)
Interfaces USB2.0
HDMI*2
TF/Audio/DC IN
Touchscreen Touch type in-TOUCH (P-Cap in-cell Touch)
machine specification Operating voltage USB 12V/2A
Power consumption ≤25W
Product size 522.64(H)X126(V)X42.66(D)mm
Installation Embedded, wall-mounted
Appearance material Metal shell
Net weight ≤3.8KG
Surface treatment Black metal paint
Environmental Storage Environment Temperature:-20℃～60℃
Humidity:5%～95%
Atmospheric Pressure:86kPa～104kPa
Working Environment Temperature:-10℃～50℃
Humidity:10%～85%
Atmospheric Pressure:86KPa～104KPa
Packing list Bar lcd display 1pcs
Power Cable 1Pcs
Support special requirements customization

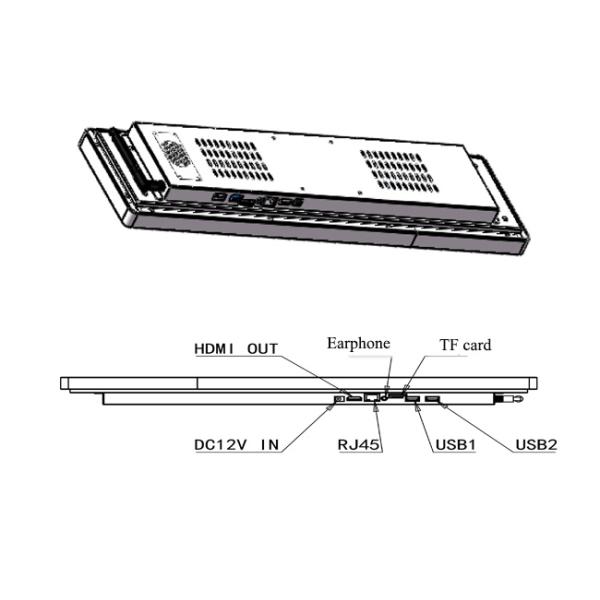

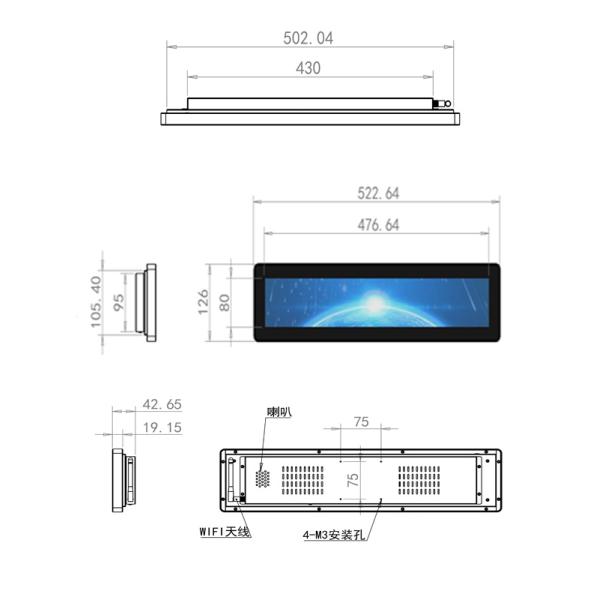

The design drawing as follows :


19

19

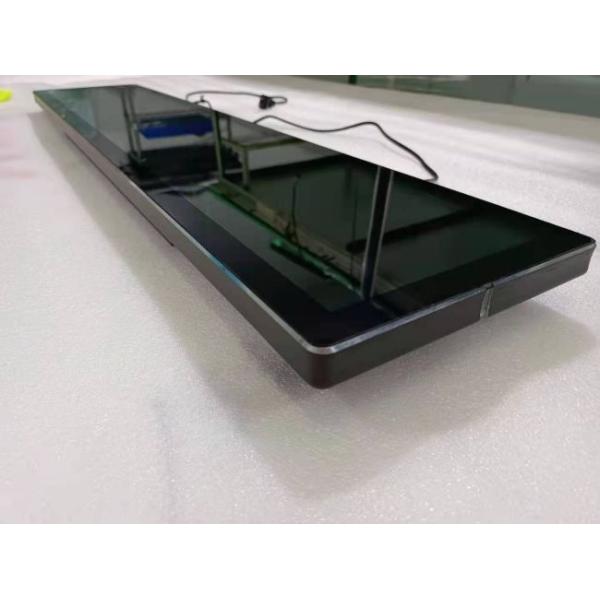

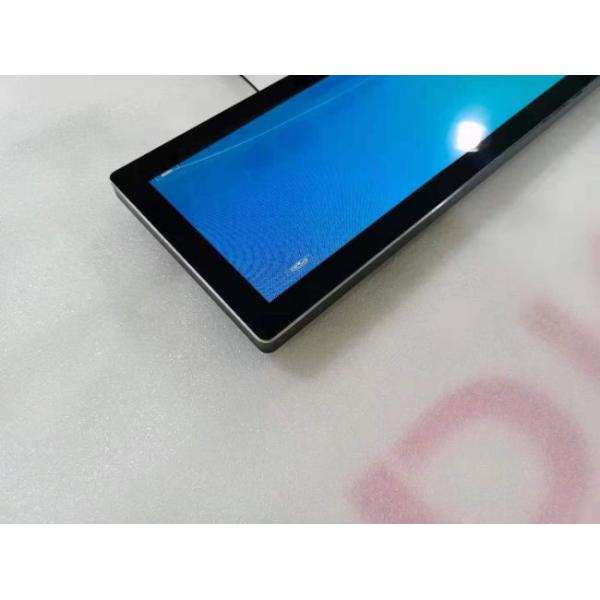

Product physical photo for reference :

19

The specification of Capacitive touch screen panel

Touch Method Finger or Pen
Touch points 10 Points
Touch strength 10-60g
Finger touch time ≥35,000,000 times
Withstand pressure ＜10g
Surface hardness ≥7H
storage temperature -15°C~40°C,＜90%RH；40°C~70°C,＜60%RH
Relative humidity 10%~90%RH at 40°C, non-condensing
Response time <10ms
Transmittance >85%
thickness (1.1mm)+TopITO Film(0.125mm) +Bottom ITO Film(0.125mm)
Durability Touch 50,000,000 times in the same position to work normally

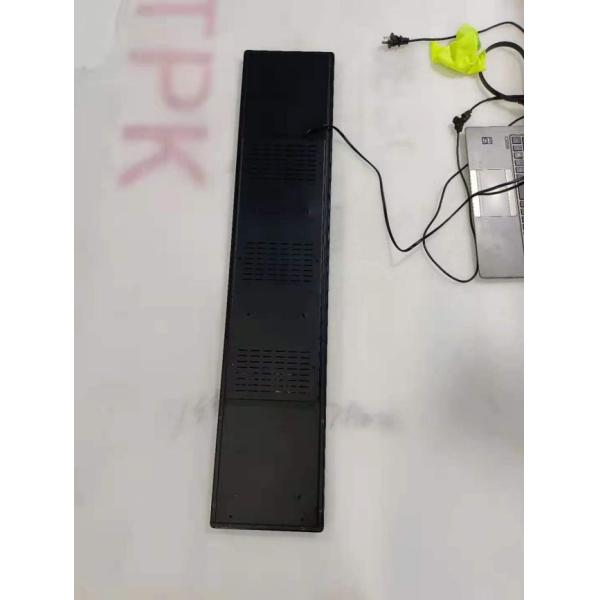

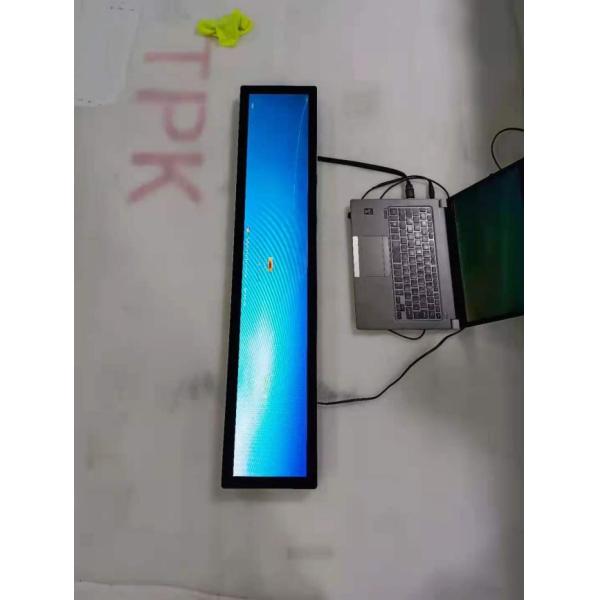

Product Phycial Photo for reference

19

19

Want To Get In Touch?

If you would like to discuss your requirement or need any additional information on our Stretched (Cut) lcd monitor with touchscreen, and then please do not hesitate to contact our sales team.
