46.6in Shelf Edge Lcd Display Stretched Bar LCD Screen For Supermarket Shelf
46.6in Shelf Edge Lcd Display Stretched Bar LCD Screen For Supermarket Shelf
46.6in Shelf Edge Lcd Display Stretched Bar LCD Screen For Supermarket Shelf
46.6in Shelf Edge Lcd Display Stretched Bar LCD Screen For Supermarket Shelf
46.6in Shelf Edge Lcd Display Stretched Bar LCD Screen For Supermarket Shelf
46.6in Shelf Edge Lcd Display Stretched Bar LCD Screen For Supermarket Shelf
46.6in Shelf Edge Lcd Display Stretched Bar LCD Screen For Supermarket Shelf
46.6in Shelf Edge Lcd Display Stretched Bar LCD Screen For Supermarket Shelf
46.6in Shelf Edge Lcd Display Stretched Bar LCD Screen For Supermarket Shelf
46.6in Shelf Edge Lcd Display Stretched Bar LCD Screen For Supermarket Shelf
Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-BAR466AQSP
Certification :
CE/Rohs/FCC/ERP Energy Label
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
300pcs per month
Delivery Time :
3~5 working days
Packaging Details :
Machine body appearance wrapped in pearl carton firstly, packedin wooden box
Product model :
ZXTLCD-BAR466AQSP
Screen size :
46.6" LCD Panel
Resolution :
3840(V) X 120(H)
Active display area :
1189.7(H) X 39(V)mm
Brightness :
500cd/m2
CPU :
T972 ,Quad core A35
RAM :
2gb
ROM :
8gb EMMC
Description

46.6 inch ultra wide shelf edge lcd digital signage stretched bar screen for supermarket shelf

shelf edge lcd digital signage is a commercial display product with an ultra wide LCD screen. In order to meet different needs, it has various of display ratios of length and width. Based on common usage and customer requirements, ZXTLCD provides dozens of all-in-one digital signage stretched displays and stretched lcd monitors, as a way to offer cost-effective overall solutions, while remaining open to more possibilities. ZXTLCD stretched bar LCD displays have many sizes, configurations and features, making them adaptable to all sorts of digital signage projects. We offer professional installation advice and after-sales service, helping you to get started in no time. It’s time to stretch your view as well as your imagination to complete an unprecedented digital experience.

46.6in Shelf Edge Lcd Display Stretched Bar LCD Screen For Supermarket Shelf

The specification :

The specification
Model No Product model ZXTLCD-BAR466AQSP
LCD Screen Panel Screen size 46.6" LCD Panel
Active display area 1189.7(H) X 39(V)mm
Resolution 3840(V) X 120(H)
Brightness 500cd/m2
Contrast ratio 3000:1
Display color 16.7M
Backlight type LED
Viewing angles 88/88/88/88 (Typ.)(CR≥10)
Response time 9.5ms
Lifespan Above 60000 hours
Main board CPU T972 ,Quad core A35
RAM 2gb
ROM 8gb EMMC
System Android 9.0
Network support 10M/100M Auto-adjust Gigabit Ethernet , WIFI
RTC real time clock Support timing on / off function
Interfaces 1*USB2.0
1*OTG USB
1*RJ45
Video formats wmv,avi,flv,rm,rmvb,mpeg ,ts,mp4
Photo formats BMP,JPEG,PNG,GIF
machine specification Operating voltage DC 12V / 2A
Power consumption ≤40W
Product size 1202.4(H)X52.7(V)X20.3(D)mm
Speaker no
Installation wall-mounted
Apperance material Metal shell
Net weight ≤2.5KG
Surface treatment Black metal paint
Environmental Storage Environment Temperature:-10℃～55℃
Humidity:10%～60% Non-Condensing
Working Environment Temperature:0℃～45℃
Humidity:≤ 90℃ Non-Condensing
Packing list Bar lcd display 1pcs
Power Cable 1Pcs
Support special requirements customization

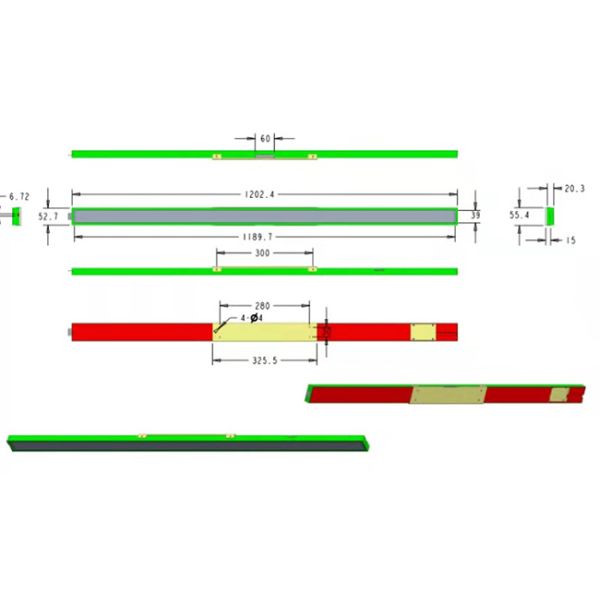

The design drawing as follows :

46.6in Shelf Edge Lcd Display Stretched Bar LCD Screen For Supermarket Shelf

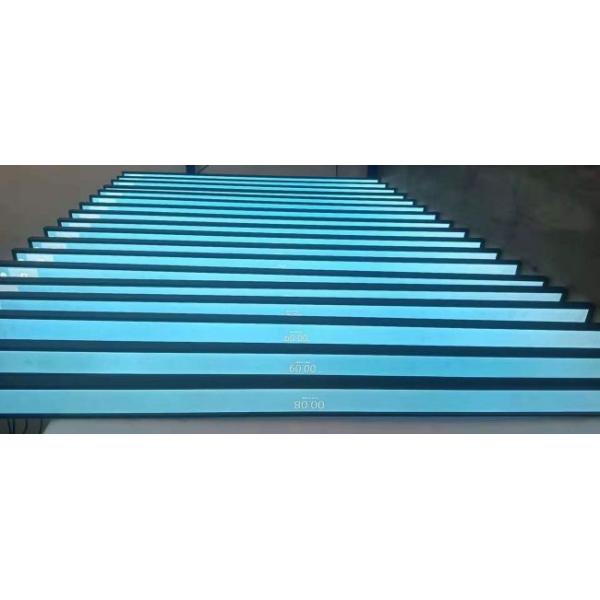

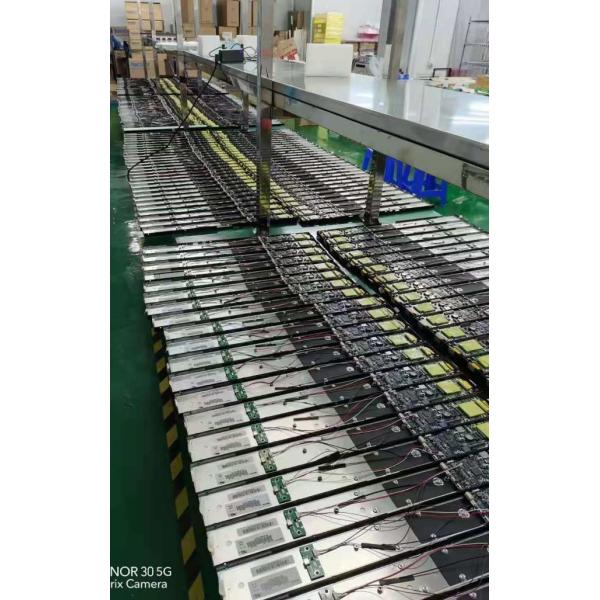

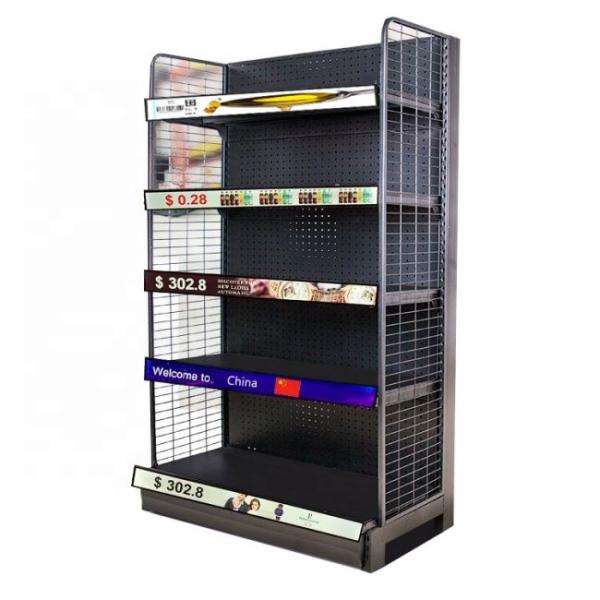

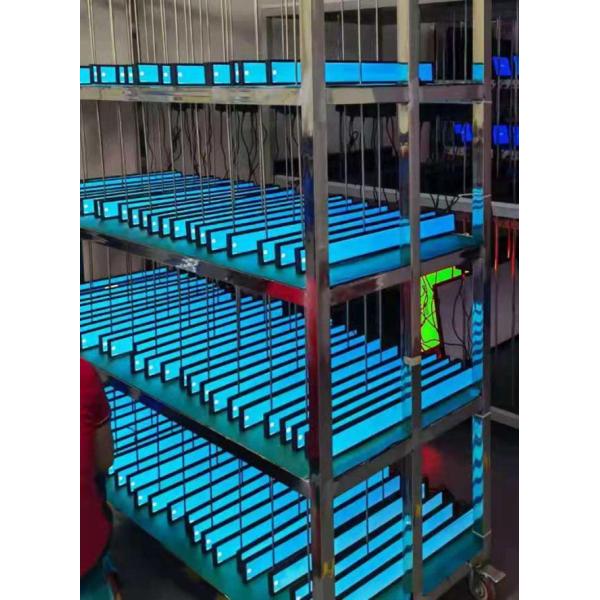

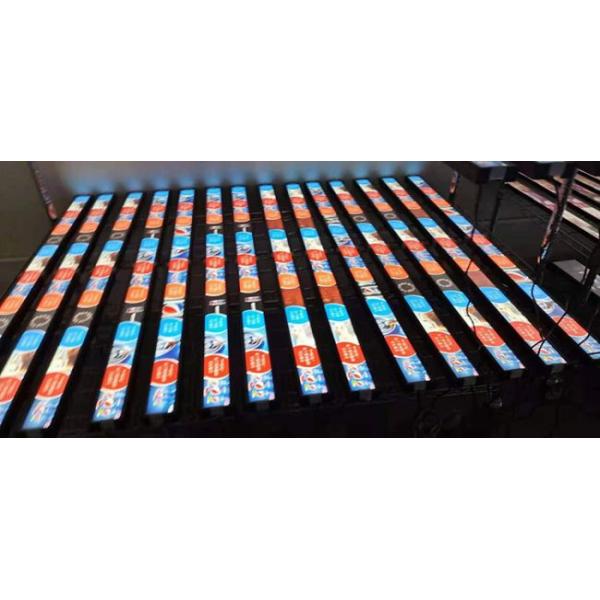

Product physical Photo as follows :

46.6in Shelf Edge Lcd Display Stretched Bar LCD Screen For Supermarket Shelf

46.6in Shelf Edge Lcd Display Stretched Bar LCD Screen For Supermarket Shelf

46.6in Shelf Edge Lcd Display Stretched Bar LCD Screen For Supermarket Shelf

46.6in Shelf Edge Lcd Display Stretched Bar LCD Screen For Supermarket Shelf

If you would like to discuss your requirement or need any additional information on our shelf edge lcd digital signage, and then please do not hesitate to contact our sales team.
