15.6-Inch Panel-Mount Linux Touch Screen for Smart Manufacturing and Digital Signage
15.6-Inch Panel-Mount Linux Touch Screen for Smart Manufacturing and Digital Signage
15.6-Inch Panel-Mount Linux Touch Screen for Smart Manufacturing and Digital Signage
15.6-Inch Panel-Mount Linux Touch Screen for Smart Manufacturing and Digital Signage
Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-E156WLCTB
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
12.1 inch
Aspect Ratio :
16:9
Brightness :
400 cd/m²
Install Type :
Embedded, open-frame, wall-mounted, floor-standing
Suitable Environment :
Outdoor; Indoor
Applications :
Industrial control, medical equipment, automotive systems, various self-service terminals (new retail vending machines/financial terminals/information kiosks/parcel lockers/storage lockers/garbage recycling cabinets/charging stations, etc.), hospitality an
Description

15.6-Inch Panel-Mount Linux Touch Screen for Smart Manufacturing and Digital Signage

LCD Panel ParametersScreen Size15.6 Inch
Display Area344.16 mm.(Height) X 193.59(Width)mm.
Aspect Ratio16 : 9
LCD Typea-Si TFT-LCD Monitor
Maximum Resolution1920 X 1080
Display Color16.7M , 72% NTSC
Brightness250cd/m²
Contrast Ratio700 : 1
Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)
Response Time30ms
LCD Panel Lifespan (Hours)60,000(Hour.)
Field Frequency60Hertz
PCAP Touchscreen Panel ParametersTouch PatternProjected Capacitive Touchscreen Monitor
Touch Points10 Points
Cover GlassMorse Glass Size 7 Physically reinforced to prevent explosion
Glass 3 mm. Optical mount to reduce parallax
Glass Transmission>85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
Response Speed< 6ms
Touch AccuracyMore than 90% of the touch area ±2 mm
Touch MethodInch Stylus
Output FormatCoordinate Output
Click TimeUnlimited
Smallest Touch Size5 mm
Long-lasting DurabilityYes, Available
Touch InterfaceUSB
Operating Temperature and HumidityBelow 10℃ ~ +50℃, ≤ 85%RH
Storage Temperature and HumidityLess than 20℃ ~ +60℃, ≤ 90%RH
Audio parametersAudio systemStereo
Speaker size≈ 99 x 45 x 20 mm
Impedance8 Ω
Power2 x 5 Watt
Loudness> 80 Decibel
Interface4-pin connector
Internal computer configuration
(Choose one of two)		CPUIntel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHzIntel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
Graphics CardIntegrated Graphics Card Intel® HD 4600Integrated Graphics Card Intel® HD 530
RAM4GB8GB
Storage Memory Capacity128GB256GB
OSWin10 or win11 OptionalWin10 or win11 Optional
Wi-Fi Built-inSpeed 150Mbps 802.11n wifi IntegratedSpeed 150Mbps 802.11n wifi Integrated
Media FormatVideo Formatwmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Audio FormatMP3, WMA
Photo FormatBMP, JPEG, PNG, GIF etc.
Onboard InterfaceNetwork portRJ45 X 1, 10M/100M Adjustable Ethernet
HDMI1
USB4
PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
Maximum Power Loss≤ 30 Watt
Standby Mode Power Loss< 1 Watt
FeaturesOperating Temperature0℃ ~ 50℃
Storage TemperatureBelow 10℃ ~ +60℃

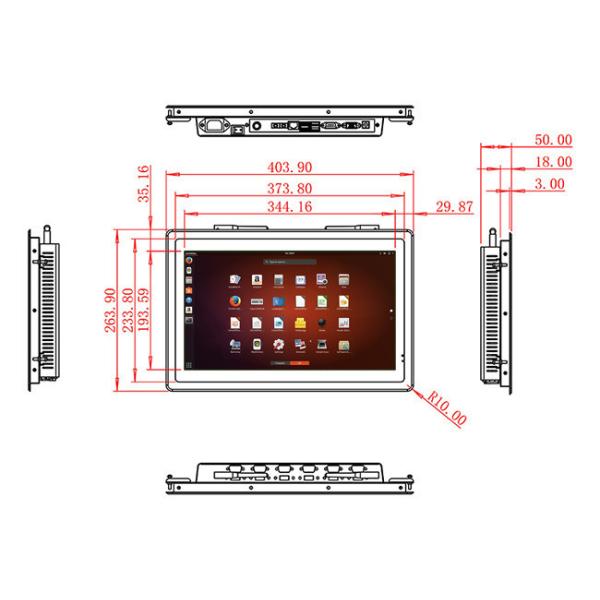

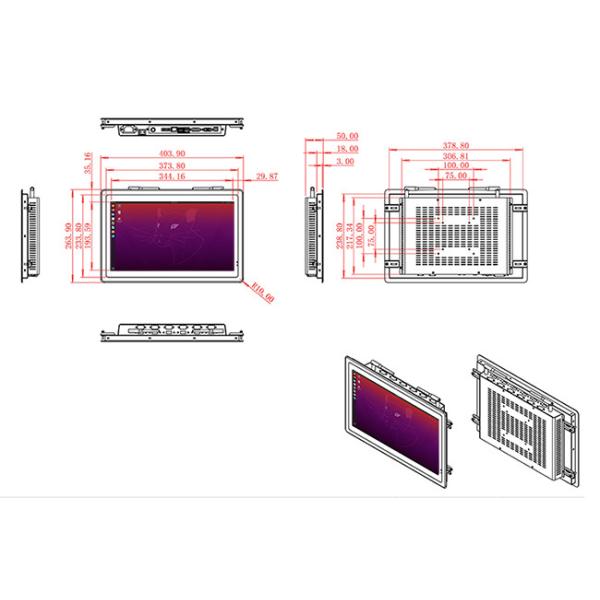

Package SizeDevice Dimensions403.9 X 263.9X 50mm.
Net Weight5 Kilogram
Package Size47 X 33 X 15Centimeter
Gross Package Weight per Unit5.5 Kilogram

15.6-Inch Panel-Mount Linux Touch Screen for Smart Manufacturing and Digital Signage
15.6-Inch Panel-Mount Linux Touch Screen for Smart Manufacturing and Digital Signage15.6-Inch Panel-Mount Linux Touch Screen for Smart Manufacturing and Digital Signage
15.6-Inch Panel-Mount Linux Touch Screen for Smart Manufacturing and Digital Signage
15.6-Inch Panel-Mount Linux Touch Screen for Smart Manufacturing and Digital Signage15.6-Inch Panel-Mount Linux Touch Screen for Smart Manufacturing and Digital Signage
