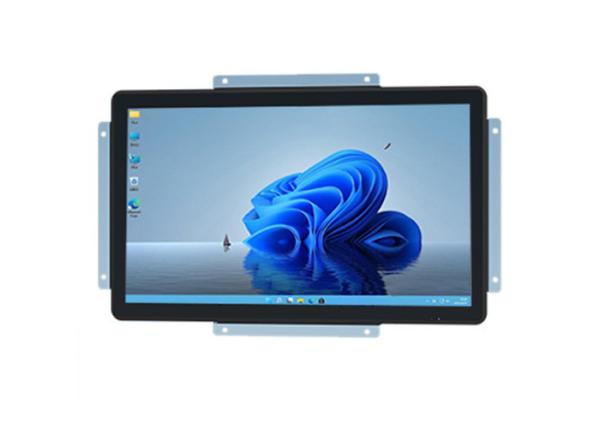

The 18.5-inch Windows display is a powerful solution for medical devices that require precise, real-time visual data. With a 1920x1080 resolution and high contrast ratio of 1200:1, this screen provides crystal-clear, detailed imagery for a wide range of healthcare applications. From displaying patient monitoring data in ICUs to offering visual feedback in diagnostic equipment, this display excels in delivering the clarity necessary for healthcare professionals to make informed decisions. Its wide viewing angles ensure that medical staff can view patient information from multiple positions in environments like hospitals, clinics, or labs, while the responsive touch capabilities make it ideal for interactive medical systems or patient check-in kiosks.
LCD Panel Parameters | Screen Size | 18.5 Inch | ||
Display Area | 409.8 mm.(Height) X 230.4(Width)mm. | |||
Aspect Ratio | 16 : 9 | |||
LCD Type | a-Si TFT-LCD Monitor | |||
Maximum Resolution | 1920 X 1080 | |||
Display Color | 16.7m , 72% NTSC | |||
Brightness | 250cd/m² | |||
Contrast Ratio | 1200 : 1 | |||
Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | |||
Response Time | 14ms | |||
LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
Field Frequency | 60Hertz | |||
Audio parameters | Audio system | Stereo | ||
Speaker size | ≈ 99 x 45 x 20 mm | |||
Impedance | 8 Ohm | |||
Power | 2 x 5 Watt | |||
Loudness | > 80 Decibel | |||
Interface | 4-pin connector | |||
Internal computer configuration (Choose one of two) |
CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
RAM | 4GB | 8GB | ||
Storage Memory Capacity | 128GB | 256GB | ||
OS | Win10 or win11 Optional | Win10 or win11 Optional | ||
Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
Audio Format | MP3, WMA | |||
Photo Format | BMP, JPEG, PNG, GIF etc. | |||
Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
HDMI | 1 | |||
USB | 4 | |||
Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
Maximum Power Loss | ≤ 30 Watt | |||
Standby Mode Power Loss | < 1 Watt | |||
Features | Operating Temperature | 0℃ ~ 50℃ | ||
Storage Temperature | Below 10℃ ~ +60℃ | |||
Package Size | Device Dimensions | 450.4 X 274.4 X 55.7mm | ||
Net Weight | 6.5 Kilogram | |||
Package Size | 53 X 35 X 15Centimeter | |||
Gross Package Weight per Unit | 7 Kilogram |
In public terminals such as information kiosks and wayfinding systems, the 18.5-inch display offers robust functionality and high performance. Whether placed in malls, airports, or bus stations, this monitor ensures users can easily access important information like flight schedules, public announcements, and interactive maps. The long lifespan and low power consumption make it a perfect fit for devices that run continuously, such as ticketing machines or interactive directories. The inclusion of Wi-Fi and network capabilities also allows for seamless updates to displayed content, ensuring that public terminals can deliver real-time, dynamic information to large crowds.
For industries requiring interactive customer service, the 18.5-inch monitor is also an excellent option for self-service terminals. This can include point-of-sale systems in retail environments, check-in kiosks in hotels, and automated customer service stations in banks or libraries. With its easy integration into various Windows-based applications and ability to display a variety of media formats, this display supports both text-based and multimedia content, making it ideal for digital signage in retail spaces. Furthermore, its touchscreen capabilities and responsive interface make it easy for users to interact, improving customer satisfaction while ensuring smooth, efficient service. The monitor's durability and adaptability guarantee long-term reliability in high-traffic environments.
