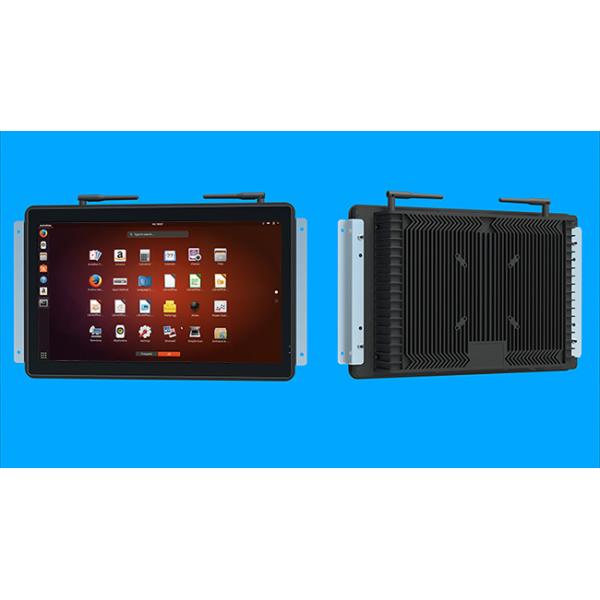

The 15.6-inch Linux display is a compact yet powerful solution for retail kiosks, transforming customer experiences with its sleek design and vibrant, high-definition visuals. Equipped with a 1920x1080 resolution and a 72% NTSC color gamut, it ensures crisp, clear imagery, perfect for displaying product catalogs, interactive menus, or promotional content in retail environments. Its bright 250cd/m² display guarantees optimal visibility even in well-lit settings, while the wide 89-degree viewing angles ensure that the screen is easily readable from different angles. Whether it’s positioned on a countertop or integrated into a self-service kiosk, this display creates an engaging, user-friendly interface for customers to explore product details, check out, or access information.
LCD Panel Parameters | Screen Size | 15.6 Inch | ||
Display Area | 344.2 mm.(Height) X 193.5(Width)mm. | |||
Aspect Ratio | 16 : 9 | |||
LCD Type | a-Si TFT-LCD Monitor | |||
Maximum Resolution | 1920 X 1080 | |||
Display Color | 16.7M , 72% NTSC | |||
Brightness | 250cd/m² | |||
Contrast Ratio | 700 : 1 | |||
Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | |||
Response Time | 30ms | |||
LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
Field Frequency | 60Hertz | |||
Audio parameters | Audio system | Stereo | ||
Speaker size | ≈ 99 x 45 x 20 mm | |||
Impedance | 8 Ω | |||
Power | 2 x 5 Watt | |||
Loudness | > 80 Decibel | |||
Interface | 4-pin connector | |||
Internal computer configuration (Choose one of two) |
CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
RAM | 4GB | 8GB | ||
Storage Memory Capacity | 128GB | 256GB | ||
OS | Linux | Linux | ||
Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
Audio Format | MP3, WMA | |||
Photo Format | BMP, JPEG, PNG, GIF etc. | |||
Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
HDMI | 1 | |||
USB | 4 | |||
Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
Maximum Power Loss | ≤ 30 Watt | |||
Standby Mode Power Loss | < 1 Watt | |||
Features | Operating Temperature | 0℃ ~ 50℃ | ||
Storage Temperature | Below 10℃ ~ +60℃ | |||

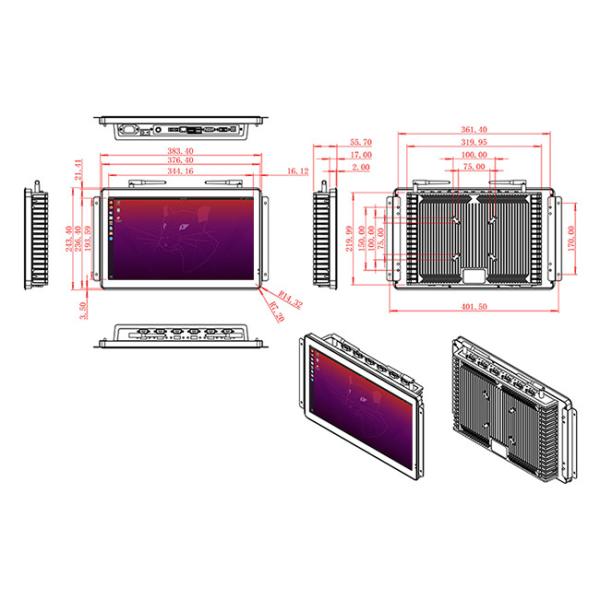

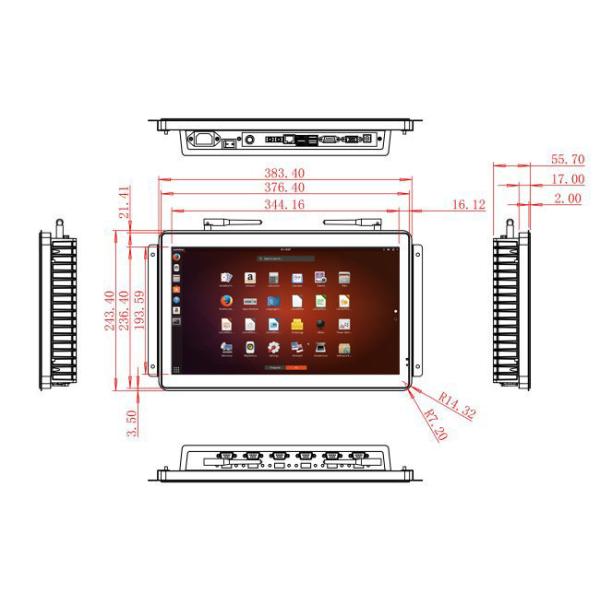

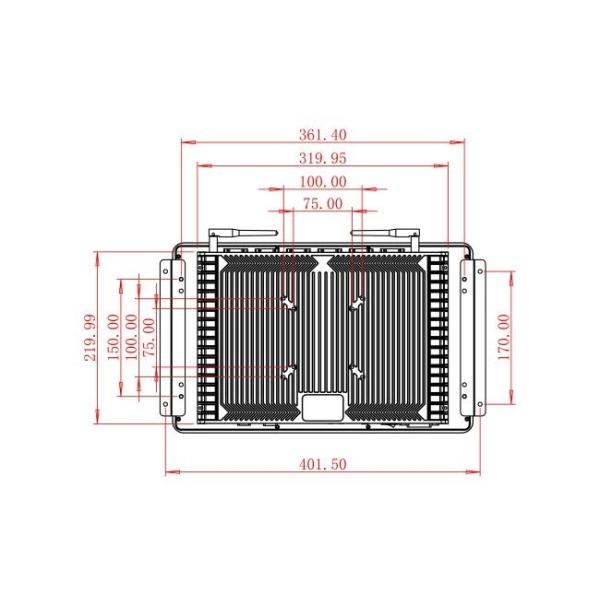

Package Size | Device Dimensions | 389 X 249X 51.7mm. | ||
Net Weight | 5 Kilogram | |||
Package Size | 44.2 X 30 X 10.5Centimeter | |||
Gross Package Weight per Unit | 5.5 Kilogram |
In digital signage applications, this 15.6-inch Linux screen offers flexibility and effectiveness in delivering dynamic content in public spaces. Ideal for advertisements, real-time updates, or event schedules, it is a valuable tool in environments like shopping malls, airports, or train stations. The display’s ability to support various media formats, including video, audio, and images, ensures that your content can captivate an audience with rich multimedia. Furthermore, with Wi-Fi connectivity and multiple USB ports for media playback, it allows businesses to easily update and control signage remotely, ensuring that the most relevant content is always being showcased.
The 15.6-inch Linux display also excels in information dissemination and interactive solutions. It can be utilized in settings like queue management systems, where it displays waiting times, ticket numbers, or alerts, or as an interactive touchscreen in educational settings or public information booths. Its sturdy build and low power consumption (maximum of 30 watts) make it a reliable and energy-efficient choice for continuous operation. Whether used in a point-of-sale terminal, a wayfinding kiosk, or as a customer feedback station, this screen provides an intuitive platform for both businesses and consumers, ensuring a smooth and seamless experience.
