The 17-inch Windows monitor provides a highly effective solution for factory automation systems and industrial control applications. With a clear 1280x1024 resolution, the display offers crisp and accurate visuals for monitoring production lines, machinery, and control panels. Its high contrast ratio of 1200:1 ensures that even in environments with challenging lighting conditions, such as factories or workshops, the screen's content remains visible and readable. The 250cd/m² brightness and wide viewing angles make it ideal for integration into control rooms, where operators need to view real-time data, alerts, and system information without distortion from various angles. With its integrated Ethernet and Wi-Fi capabilities, remote monitoring and control become seamless, contributing to the efficiency and accuracy of industrial operations.
LCD Panel Parameters | Screen Size | 17 Inch | ||
Display Area | 337.92 mm.(Height) X 270.34(Width)mm. | |||
Aspect Ratio | 16 : 9 | |||
LCD Type | a-Si TFT-LCD Monitor | |||
Maximum Resolution | 1280 X 1024 | |||
Display Color | 16.7M , 72% NTSC | |||
Brightness | 250cd/m² | |||
Contrast Ratio | 1200 : 1 | |||
Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | |||
Response Time | 20ms | |||
LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
Field Frequency | 60Hertz | |||
Audio parameters | Audio system | Stereo | ||
Speaker size | ≈ 99 x 45 x 20 mm | |||
Impedance | 8 Ohm | |||
Power | 2 x 5 Watt | |||
Loudness | > 80 Decibel | |||
Interface | 4-pin connector | |||
Internal computer configuration (Choose one of two) |
CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
RAM | 4GB | 8GB | ||
Storage Memory Capacity | 128GB | 256GB | ||
OS | Win10 or win11 Optional | Win10 or win11 Optional | ||
Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
Audio Format | MP3, WMA | |||
Photo Format | BMP, JPEG, PNG, GIF etc. | |||
Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
HDMI | 1 | |||
USB | 4 | |||
Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
Maximum Power Loss | ≤ 30 Watt | |||
Standby Mode Power Loss | < 1 Watt | |||
Features | Operating Temperature | 0℃ ~ 50℃ | ||
Storage Temperature | Below 10℃ ~ +60℃ | |||

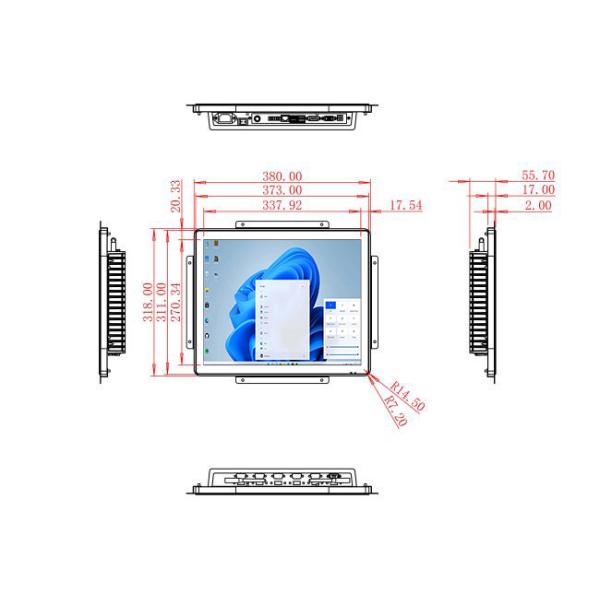

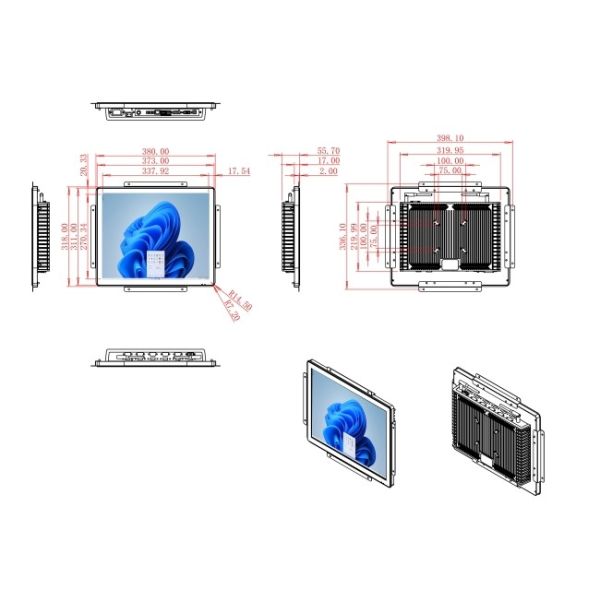

Package Size | Device Dimensions | 380 X 318 X 55.7mm. | ||
Net Weight | 5.5 Kilogram | |||
Package Size | 45 X 38.5 X 15Centimeter | |||
Gross Package Weight per Unit | 6 Kilogram |
In security systems, the 17-inch monitor proves invaluable for surveillance and monitoring applications. Its large, clear display makes it perfect for security command centers where multiple video feeds from CCTV cameras need to be viewed simultaneously. The fast response time and strong color accuracy ensure that security personnel can track fast-moving objects or incidents without delay. Whether used for video surveillance in warehouses, banks, or malls, this monitor guarantees optimal performance in high-stakes environments. Its ability to integrate into complex security infrastructures allows for the real-time display of incident alerts, video feeds, and other vital data, all within a compact yet efficient form factor.
This versatile 17-inch monitor also finds extensive use in embedded systems for transportation hubs like airports or train stations. Here, it can be employed for ticketing kiosks, passenger information systems, and real-time scheduling displays. Its Windows OS compatibility ensures smooth integration with existing software solutions, while the ability to handle multiple media formats makes it perfect for dynamic content presentation, from video ads to real-time announcements. With low power consumption and long-lasting durability, this monitor excels in environments that require continuous operation, such as control systems for public transportation. It provides both reliability and ease of use, crucial for environments where performance cannot be compromised.
