Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-E156BPWFS
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
15.6 inch
Aspect Ratio :
16:9
Brightness :
250 cd/m²
Install Type :
Embedded, open-frame, wall-mounted, floor-standing
Suitable Environment :
Outdoor; Indoor
Applications :
Industrial control, medical equipment, automotive systems, various self-service terminals (new retail vending machines/financial terminals/information kiosks/parcel lockers/storage lockers/garbage recycling cabinets/charging stations, etc.), hospitality an
Description

15.6-Inch Windows Screen for Retail Kiosks and Digital Signage

The 15.6-inch Windows display offers an exceptional solution for retail kiosks and digital signage, providing businesses with a powerful tool for interactive customer engagement. With its 1920x1080 resolution, vibrant 16.7 million colors, and 250cd/m² brightness, it ensures clear, vivid content delivery in high-traffic environments. Whether used in shopping malls for self-service kiosks or in restaurants for digital menus, this compact screen effectively captures the attention of passersby, offering dynamic advertising, product displays, or information. The wide viewing angle ensures customers can view the content from almost any position, making it ideal for advertising displays in storefronts or event locations.

LCD Panel Parameters Screen Size 15.6 Inch
Display Area 344.16 mm.(Height) X 193.59(Width)mm.
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD Monitor
Maximum Resolution 1920 X 1080
Display Color 16.7M , 72% NTSC
Brightness 250cd/
Contrast Ratio 700 : 1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10)
Response Time 30ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
Audio parameters Audio system Stereo
Speaker size ≈ 99 x 45 x 20 mm
Impedance 8 Ω
Power 2 x 5 Watt
Loudness > 80 Decibel
Interface 4-pin connector
Internal computer configuration
(Choose one of two)
CPU Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
Graphics Card Integrated Graphics Card Intel® HD 4600 Integrated Graphics Card Intel® HD 530
RAM 4GB 8GB
Storage Memory Capacity 128GB 256GB
OS Win10 or win11 Optional Win10 or win11 Optional
Wi-Fi Built-in Speed 150Mbps 802.11n wifi Integrated Speed 150Mbps 802.11n wifi Integrated
Media Format Video Format wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Audio Format MP3, WMA
Photo Format BMP, JPEG, PNG, GIF etc.
Onboard Interface Network port RJ45 X 1, 10M/100M Adjustable Ethernet
HDMI 1
USB 4
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 30 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0 ~ 50
Storage Temperature Below 10 ~ +60

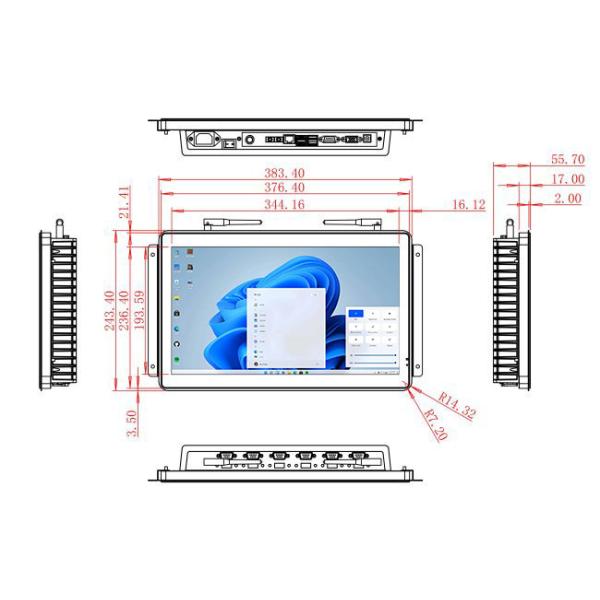

Package Size Device Dimensions 383.4 X 243.4X 55.7mm.
Net Weight 5 Kilogram
Package Size 45 X 32 X 15Centimeter
Gross Package Weight per Unit 5.5 Kilogram

Beyond retail, this 15.6-inch screen serves as an excellent option for information boards and wayfinding systems in public spaces. Its compact design makes it perfect for integration into office lobbies, airports, conference halls, and train stations, providing passengers and visitors with real-time updates such as flight information, directions, or event schedules. The easy integration with network interfaces such as Wi-Fi and Ethernet enables remote content management, making it a versatile choice for digital signage networks. Whether used for advertising promotions, directional signage, or emergency notices, this display offers a flexible solution for any public-facing service.

15.6-Inch Windows Screen for Retail Kiosks and Digital Signage

15.6-Inch Windows Screen for Retail Kiosks and Digital Signage15.6-Inch Windows Screen for Retail Kiosks and Digital Signage15.6-Inch Windows Screen for Retail Kiosks and Digital Signage15.6-Inch Windows Screen for Retail Kiosks and Digital Signage

For businesses looking to add an extra layer of interactivity, this 15.6-inch screen is also ideal for self-checkout systems, ticket vending machines, and customer feedback terminals. Its touchscreen compatibility and integrated Wi-Fi connectivity allow users to quickly access services, purchase products, or provide feedback, all from an intuitive interface. Additionally, its high durability and low power consumption make it a reliable option for installations that require continuous operation, such as advertising panels in transport hubs or information kiosks in shopping centers. With its clear visuals and versatile applications, this screen brings an innovative edge to any business looking to enhance its customer experience.
