Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-E190WPB
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
19.0 inch
Aspect Ratio :
16:9
Brightness :
400 cd/m²
Install Type :
Embedded, open-frame, wall-mounted, floor-standing
Suitable Environment :
Outdoor; Indoor
Applications :
Industrial control, medical equipment, automotive systems, various self-service terminals (new retail vending machines/financial terminals/information kiosks/parcel lockers/storage lockers/garbage recycling cabinets/charging stations, etc.), hospitality an
Description

19-Inch Windows Display for Transportation Systems and Access Control

The 19-inch Windows display is an exceptional tool for transportation systems, providing clear and concise information to passengers across bus terminals, train stations, and airports. Its high resolution (1280x1024) ensures that text, timetables, and digital maps are displayed in sharp detail. The wide viewing angles of 89° in all directions allow multiple people to view the screen from different angles, making it an excellent choice for high-traffic areas. Whether used for real-time updates, travel schedules, or weather information, this versatile display enhances the passenger experience. Its compact yet durable build makes it ideal for indoor or outdoor use in rugged, public environments, while its low power consumption ensures energy efficiency without compromising on performance.

LCD Panel ParametersScreen Size19 Inch
Display Area376.32 mm.(Height) X 301.06(Width)mm.
Aspect Ratio4 : 3
LCD Typea-Si TFT-LCD Monitor
Maximum Resolution1280 X 1024
Display Color16.7m , 73% NTSC
Brightness250cd/m²
Contrast Ratio1000 : 1
Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)
Response Time14Miss
LCD Panel Lifespan (Hours)60,000(Hour.)
Field Frequency60Hertz
Audio parametersAudio systemStereo
Speaker size≈ 99 x 45 x 20 mm
Impedance8 Ohm
Power2 x 5 Watt
Loudness> 80 Decibel
Interface4-pin connector
Internal computer configuration
(Choose one of two)
CPUIntel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHzIntel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
Graphics CardIntegrated Graphics Card Intel® HD 4600Integrated Graphics Card Intel® HD 530
RAM4GB8GB
Storage Memory Capacity128GB256GB
OSWin10 or win11 OptionalWin10 or win11 Optional
Wi-Fi Built-inSpeed 150Mbps 802.11n wifi IntegratedSpeed 150Mbps 802.11n wifi Integrated
Media FormatVideo Formatwmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Audio FormatMP3, WMA
Photo FormatBMP, JPEG, PNG, GIF etc.
Onboard InterfaceNetwork portRJ45 X 1, 10M/100M Adjustable Ethernet
HDMI1
USB4
PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
Maximum Power Loss≤ 30 Watt
Standby Mode Power Loss< 1 Watt
FeaturesOperating Temperature0℃ ~ 50℃
Storage TemperatureBelow 10℃ ~ +60℃

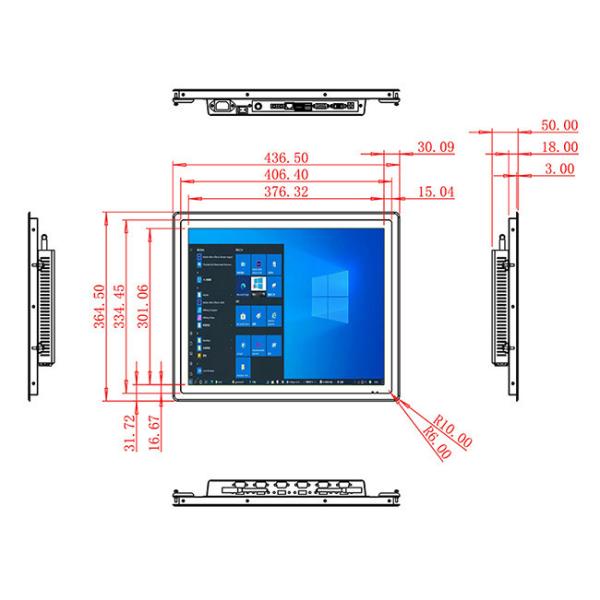

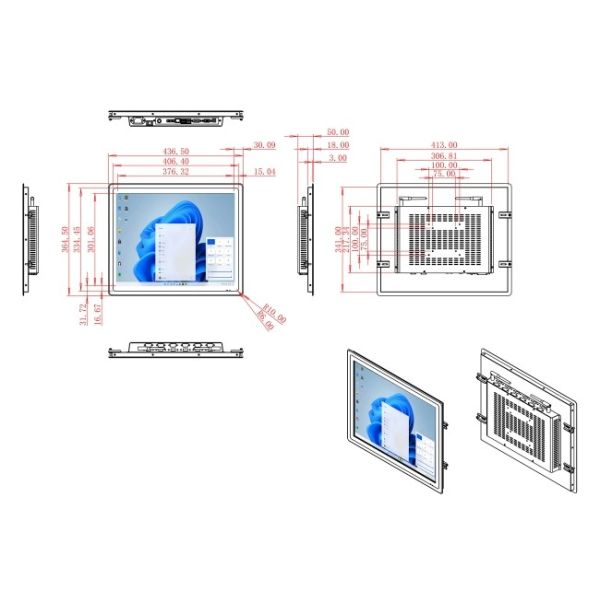

Package SizeDevice Dimensions436.5 X 364.5 X 50 mm.
Net Weight6.5 Kilogram
Package Size52 X 44 X 15 Centimeter
Gross Package Weight per Unit7 Kilogram


In access control systems, the 19-inch display can be utilized for secure check-in terminals or security monitoring in office buildings, gated communities, and restricted areas. The display’s ability to integrate with security software allows it to show live feeds, visitor data, and access logs, all in an intuitive and user-friendly interface. Its bright display ensures the data is readable even in environments with varied lighting conditions, such as entryways or lobbies. Moreover, the integrated Intel processor and Wi-Fi capabilities enable easy connectivity to cloud-based or server-side applications, streamlining access control procedures while maintaining high security standards.

19-Inch Windows Display for Transportation Systems and Access Control19-Inch Windows Display for Transportation Systems and Access Control19-Inch Windows Display for Transportation Systems and Access Control19-Inch Windows Display for Transportation Systems and Access Control19-Inch Windows Display for Transportation Systems and Access Control19-Inch Windows Display for Transportation Systems and Access Control
Additionally, the 19-inch monitor is ideal for digital signage and advertising in commercial settings like malls, retail shops, and convention centers. Its vibrant colors and high contrast ratio ensure that advertisements, promotions, and informative content stand out to passersby. The multi-format media compatibility (including videos, images, and audio) makes it a versatile tool for engaging customers with dynamic content. Whether used to display promotions, event schedules, or product information, this monitor is capable of driving customer interaction and increasing brand visibility in highly competitive retail environments. Its customizable features and integrated audio system further enhance its value, offering a rich media experience for both entertainment and informational purposes.
