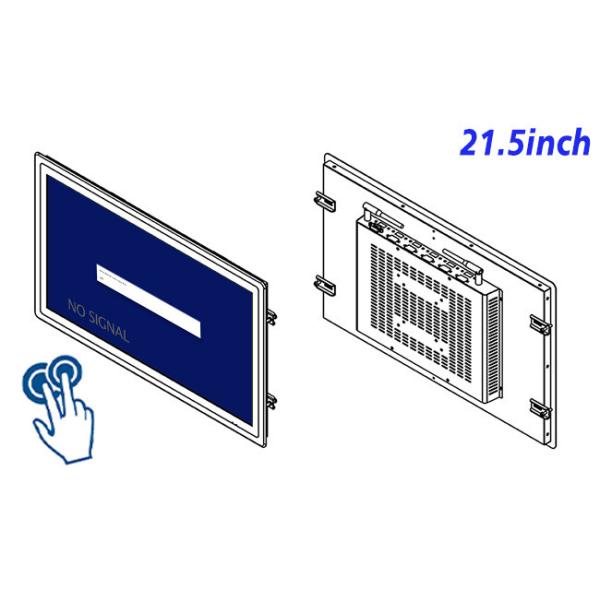

21.5-Inch Large Format Touch Screen for Smart Interfaces and Digital Signage
21.5-Inch Large Format Touch Screen for Smart Interfaces and Digital Signage
21.5-Inch Large Format Touch Screen for Smart Interfaces and Digital Signage
21.5-Inch Large Format Touch Screen for Smart Interfaces and Digital Signage
Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-E215WCTB
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
21.5 inch
Aspect Ratio :
16:9
Brightness :
400 cd/m²
Install Type :
Embedded, open-frame, wall-mounted, floor-standing
Suitable Environment :
Outdoor; Indoor
Applications :
Industrial control, medical equipment, automotive systems, various self-service terminals (new retail vending machines/financial terminals/information kiosks/parcel lockers/storage lockers/garbage recycling cabinets/charging stations, etc.), hospitality an
Description

21.5-Inch Large Format Touch Screen for Smart Interfaces and Digital Signage

LCD Panel Parameters Screen Size 21.5 Inch
Display Area 476.5 mm (Height) X 268 mm (Width)
Aspect Ratio 16 : 9
LCD Type TFT-LCD Monitor
Maximum Resolution 1920 X 1080
Display Color 16.7m
Brightness 250cd/m²
Contrast Ratio 3000 : 1
Viewing Angle (Up/Down/Left/Right) 89/89/89/89 (Type)(CR≥10)
Response Time 6.5ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
PCAP Touchscreen Panel Parameters Touch Pattern Capacitive Touchscreen Capacitive Projected
Touch Points 10 Points
Cover Glass Morse Glass Size 7 Physically reinforced to prevent explosion
Glass 3 mm. Optical mount to reduce parallax
Glass Transmission >85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
Response Speed < 6ms
Touch Accuracy More than 90% of the touch area ±2 mm
Touch Method Inch Stylus
Output Format Coordinate Output
Click Time Unlimited
Smallest Touch Size 5 mm
Long-lasting Durability Yes, Available
Touch Interface USB
Operating Temperature and Humidity Below 10℃ ~ +50℃, ≤ 85%RH
Storage Temperature and Humidity Less than 20℃ ~ +60℃, ≤ 90%RH
Audio Parameters
(External Speaker Option)		 Audio system Stereo
Speaker size ≈ 99 x 45 x 20 mm
Impedance 8 Ohm
Power 2 x 5 Watt
Loudness > 80 Decibel
Interface 4-pin connector
Onboard Interface HDMI Input 1
VGA Input 1
DVI Input 1
USB Type B or any desired USB Type 1
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 45 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0℃ ~ 50℃
Storage Temperature Below 10℃ ~ +60℃
Accessories Power Cord Length 1.5m
HDMI Cable Length 2m
USB-A to USB-B Cable Length 1.5m
Stereo Speaker Size with Connector 99*45*20mm
Stereo Speaker Length 1.5m
Package Size Device Dimensions 535.9 X 332.5 X 49.95 mm.
Net Weight 7 Kilogram
Package Size 62 X 42 X 15Centimeter
Gross Package Weight per Unit 7.5 Kilogram
