10.4-Inch Industrial Touch Screen for HMI Interfaces and Control Panels
10.4-Inch Industrial Touch Screen for HMI Interfaces and Control Panels
10.4-Inch Industrial Touch Screen for HMI Interfaces and Control Panels
10.4-Inch Industrial Touch Screen for HMI Interfaces and Control Panels
Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-E104WCTB
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
10.4 inch
Aspect Ratio :
16:9
Brightness :
400 cd/m²
Install Type :
Embedded, open-frame, wall-mounted, floor-standing
Suitable Environment :
Outdoor; Indoor
Applications :
Industrial control, medical equipment, automotive systems, various self-service terminals (new retail vending machines/financial terminals/information kiosks/parcel lockers/storage lockers/garbage recycling cabinets/charging stations, etc.), hospitality an
Description

10.4-Inch Industrial Touch Screen for HMI Interfaces and Control Panels

LCD Panel Parameters Screen Size 10.4 Inch
Display Area 211.2 mm.(Height) X 158.4(Width)mm.
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD Monitor
Maximum Resolution 800 X 600
Display Color 16.7M
Brightness 400cd/m²
Contrast Ratio 700 : 1
Viewing Angle (Up/Down/Left/Right) 80°/80°/70°/70° (Type)(CR≥10)
Response Time 30ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
PCAP Touchscreen Panel Parameters Touch Pattern Capacitive Touchscreen Capacitive Projected
Touch Points 10 Points
Cover Glass Morse Glass Size 7 Physically reinforced to prevent explosion
Glass 3 mm. Optical mount to reduce parallax
Glass Transmission >85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
Response Speed < 6ms
Touch Accuracy More than 90% of the touch area ±2 mm
Touch Method Inch Stylus
Output Format Coordinate Output
Click Time Unlimited
Smallest Touch Size 5 mm
Long-lasting Durability Yes, Available
Touch Interface USB
Operating Temperature and Humidity Below 10℃ ~ +50℃, ≤ 85%RH
Storage Temperature and Humidity Less than 20℃ ~ +60℃, ≤ 90%RH
Audio Parameters
(External Speaker Option)		 Audio system Stereo
Speaker size ≈ 99 x 45 x 20 mm
Impedance 8 Ohm
Power 2 x 5 Watt
Loudness > 80 Decibel
Interface 4-pin connector
Onboard Interface HDMI Input 1
VGA Input 1
DVI Input 1
USB Type B or any desired USB Type 1
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 15 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0℃ ~ 50℃
Storage Temperature Below 10℃ ~ +60℃
Accessories Power Cord Length 1.5m
HDMI Cable Length 2m
USB-A to USB-B Cable Length 1.5m
Stereo Speaker Size with Connector 99*45*20mm
Stereo Speaker Length 1.5m

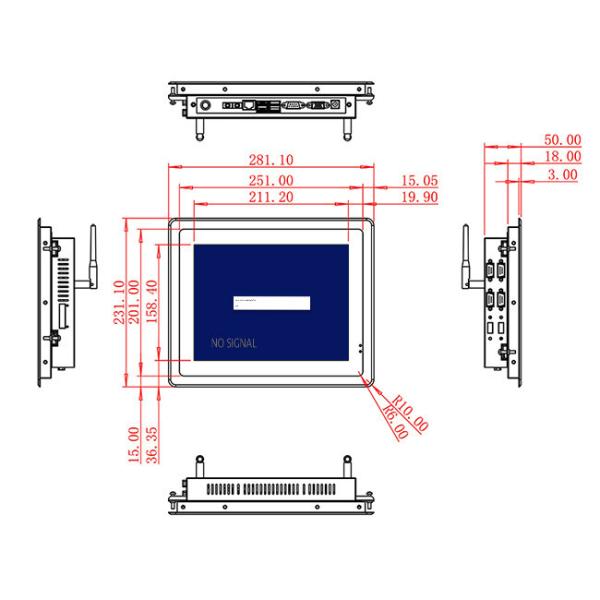

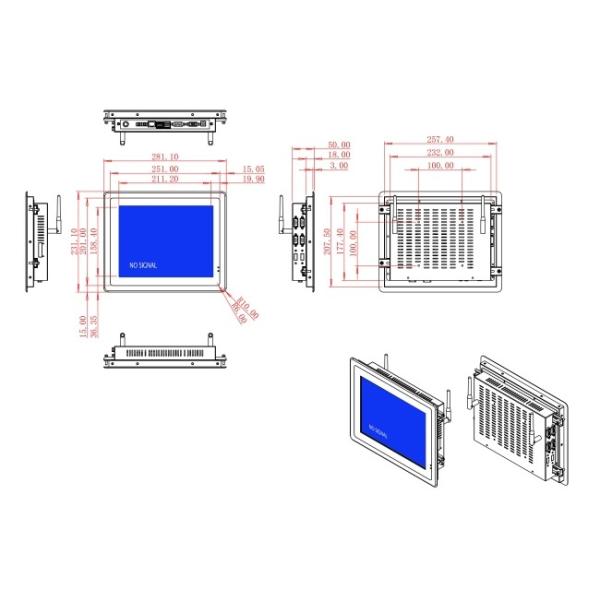

Package Size Device Dimensions 281.1 X 231.1 X 50 mm.
Net Weight 2 Kilogram
Package Size 33.5 X 18.5 X 15 Centimeter
Gross Package Weight per Unit 2.5 Kilogram
