Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-E156BL
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
15.6 inch
Aspect Ratio :
16:9
Brightness :
250 cd/m²
Install Type :
Embedded, open-frame, wall-mounted, floor-standing
Suitable Environment :
Outdoor; Indoor
Applications :
Industrial control, medical equipment, automotive systems, various self-service terminals (new retail vending machines/financial terminals/information kiosks/parcel lockers/storage lockers/garbage recycling cabinets/charging stations, etc.), hospitality an
RAM+ROM :
4+128GB; 8+256GB
Description

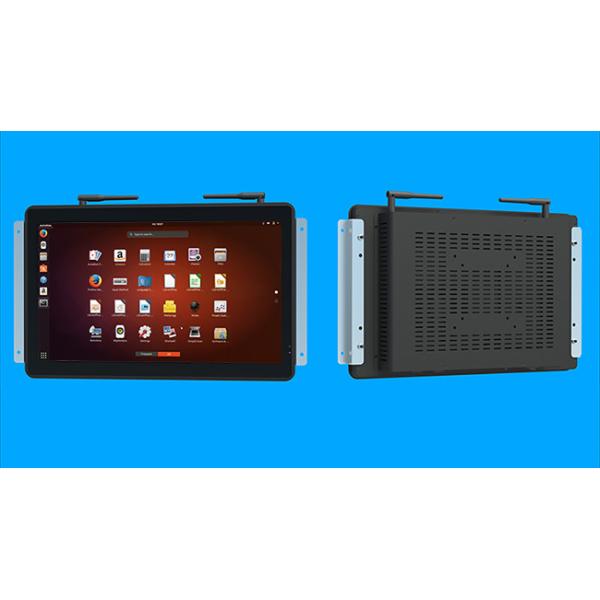

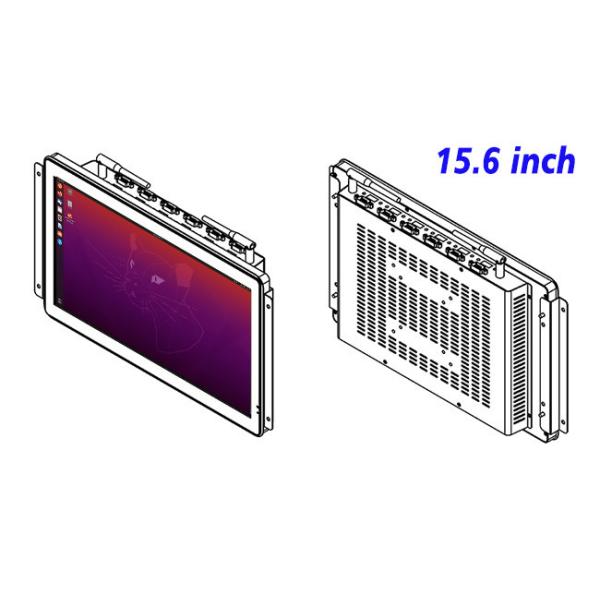

15.6-Inch Linux Vision System for Digital Signage, Security Surveillance, Industrial Interfaces, and Public Service Stations

The 15.6-Inch Linux Vision System is an advanced display solution crafted for digital signage, security surveillance, industrial interfaces, and public service stations. With a high-resolution 1920x1080 full HD display, this monitor ensures crystal-clear images and vibrant visuals, essential for applications that require high-quality data presentation. Its wide viewing angle (89° in all directions) and 250cd/m² brightness make it perfect for diverse environments, including retail, security, and industrial settings, where clear visibility and precise monitoring are crucial.

LCD Panel Parameters Screen Size 15.6 Inch
Display Area 344.2 mm.(Height) X 193.5(Width)mm.
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD Monitor
Maximum Resolution 1920 X 1080
Display Color 16.7M , 72% NTSC
Brightness 250cd/
Contrast Ratio 700 : 1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10)
Response Time 30ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
Audio parameters Audio system Stereo
Speaker size ≈ 99 x 45 x 20 mm
Impedance 8 Ω
Power 2 x 5 Watt
Loudness > 80 Decibel
Interface 4-pin connector
Internal computer configuration
(Choose one of two)
CPU Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
Graphics Card Integrated Graphics Card Intel® HD 4600 Integrated Graphics Card Intel® HD 530
RAM 4GB 8GB
Storage Memory Capacity 128GB 256GB
OS Linux Linux
Wi-Fi Built-in Speed 150Mbps 802.11n wifi Integrated Speed 150Mbps 802.11n wifi Integrated
Media Format Video Format wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Audio Format MP3, WMA
Photo Format BMP, JPEG, PNG, GIF etc.
Onboard Interface Network port RJ45 X 1, 10M/100M Adjustable Ethernet
HDMI 1
USB 4
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 30 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0 ~ 50
Storage Temperature Below 10 ~ +60

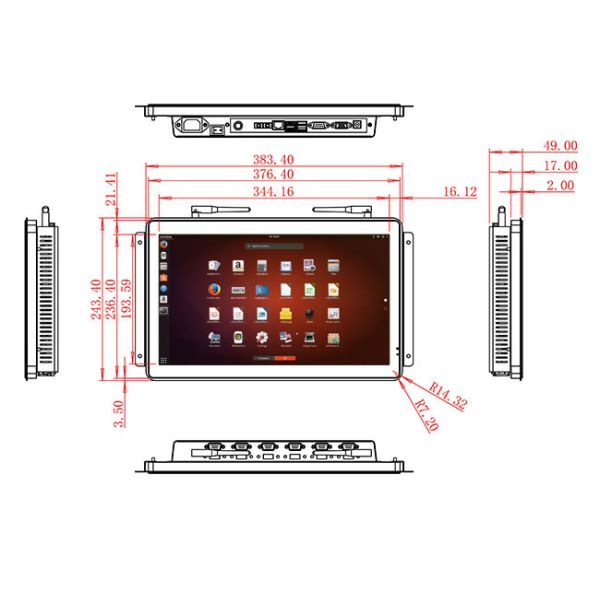

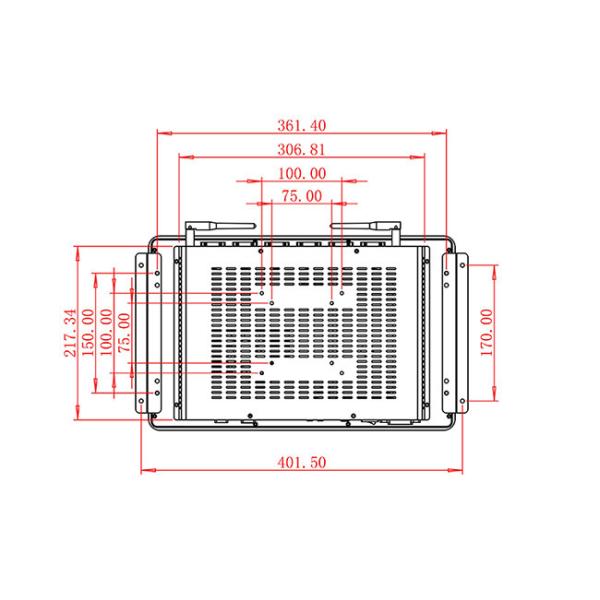

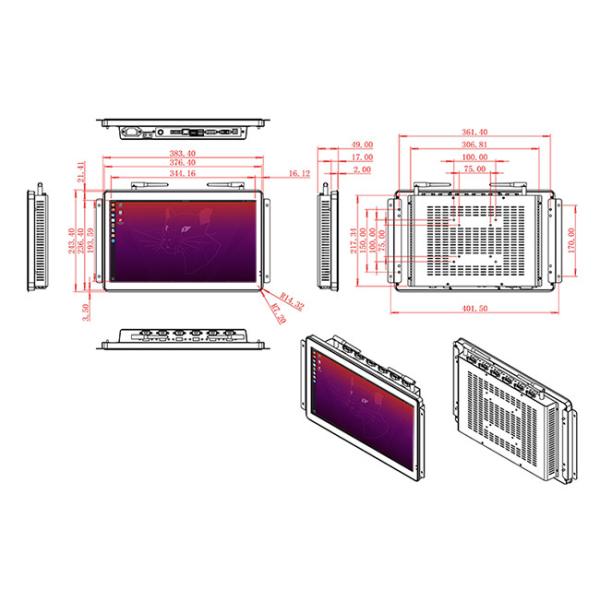

Package Size Device Dimensions 389 X 249X 51.7mm.
Net Weight 5 Kilogram
Package Size 44.2 X 30 X 10.5Centimeter
Gross Package Weight per Unit 5.5 Kilogram

Powered by Intel i5 processors, available in either 4th or 6th generation configurations, the system provides robust performance for continuous operations. With 4GB or 8GB RAM and a storage capacity of 128GB or 256GB, the system handles multitasking and data-heavy applications effortlessly. The integrated Linux OS ensures a stable and secure platform for running custom applications, while Wi-Fi connectivity and multiple ports (HDMI, USB, Ethernet) enable seamless integration with external devices and networks. Whether you're deploying it for public service, remote monitoring, or interactive signage, the monitor’s versatile connectivity supports both local and cloud-based applications.

15.6-Inch Linux Vision System for Digital Signage, Security Surveillance, Industrial Interfaces, and Public Service Stations15.6-Inch Linux Vision System for Digital Signage, Security Surveillance, Industrial Interfaces, and Public Service Stations

Built for durability, the 15.6-inch Linux Vision System operates efficiently in a wide range of temperatures (0℃ ~ 50℃) and offers an impressive 60,000-hour lifespan, making it a reliable 24/7 solution. It’s energy-efficient, consuming only ≤30W of power, while its compact size (389 x 249 x 51.7mm) and sleek design ensure it fits effortlessly into tight spaces. With its robust audio capabilities and versatile media format support, this system is an excellent choice for a wide range of applications in dynamic and demanding environments.

15.6-Inch Linux Vision System for Digital Signage, Security Surveillance, Industrial Interfaces, and Public Service Stations15.6-Inch Linux Vision System for Digital Signage, Security Surveillance, Industrial Interfaces, and Public Service Stations15.6-Inch Linux Vision System for Digital Signage, Security Surveillance, Industrial Interfaces, and Public Service Stations
