10.1-Inch Display for Industrial HMI Panels and Retail Signage
10.1-Inch Display for Industrial HMI Panels and Retail Signage
10.1-Inch Display for Industrial HMI Panels and Retail Signage
10.1-Inch Display for Industrial HMI Panels and Retail Signage
Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-E101B
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
10.1 inch
Aspect Ratio :
16:9
Brightness :
400 cd/m²
Install Type :
Embedded, open-frame, wall-mounted, floor-standing
Suitable Environment :
Outdoor; Indoor
Applications :
Industrial control, medical equipment, automotive systems, various self-service terminals (new retail vending machines/financial terminals/information kiosks/parcel lockers/storage lockers/garbage recycling cabinets/charging stations, etc.), hospitality an
Description

10.1-Inch Display for Industrial HMI Panels and Retail Signage

LCD Panel Parameters Screen Size 10.1 Inch
Display Area 217 mm.(Height) X 135.6(Width)mm.
Aspect Ratio 16 : 9 16 : 10
LCD Type a-Si TFT-LCD Monitor a-Si TFT-LCD Monitor
Maximum Resolution 1280 X 800 1920 X 1200
Display Color 16.7M, 50% NTSC 16.2M , 50% NTSC
Brightness 400cd/m² 1000cd/m²
Contrast Ratio 900 : 1 1000 :1
Viewing Angle (Up/Down/Left/Right) 85°/85°/85°/85° (Type)(CR≥10) 80°/80°/80°/80° (Type)(CR≥10)
Response Time 30ms 30ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
Audio Parameters
(External Speaker Option)		 Audio system Stereo
Speaker size ≈ 99 x 45 x 20 mm
Impedance 8 Ohm
Power 2 x 5 Watt
Loudness > 80 Decibel
Interface 4-pin connector
Onboard Interface HDMI Input 1
VGA Input 1
DVI Input 1
USB Type B or any desired USB Type 1
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 15 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0℃ ~ 50℃
Storage Temperature Below 10℃ ~ +60℃
Accessories Power Cord Length 1.5m
HDMI Cable Length 2m
USB-A to USB-B Cable Length 1.5m
Stereo Speaker Size with Connector 99*45*20mm
Stereo Speaker Length 1.5m

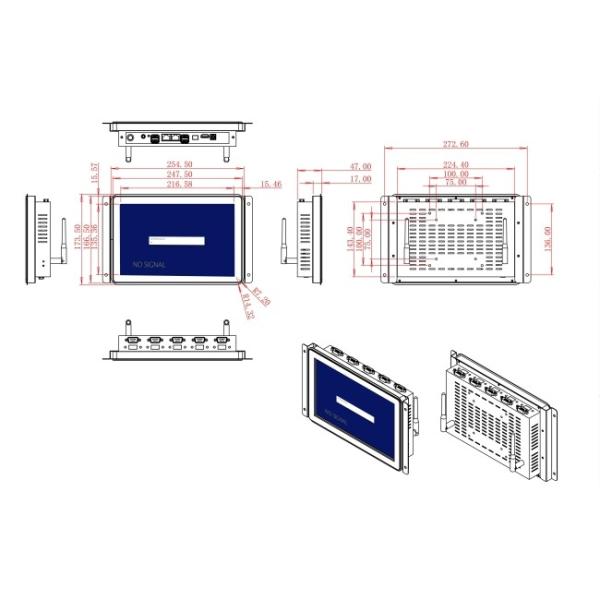

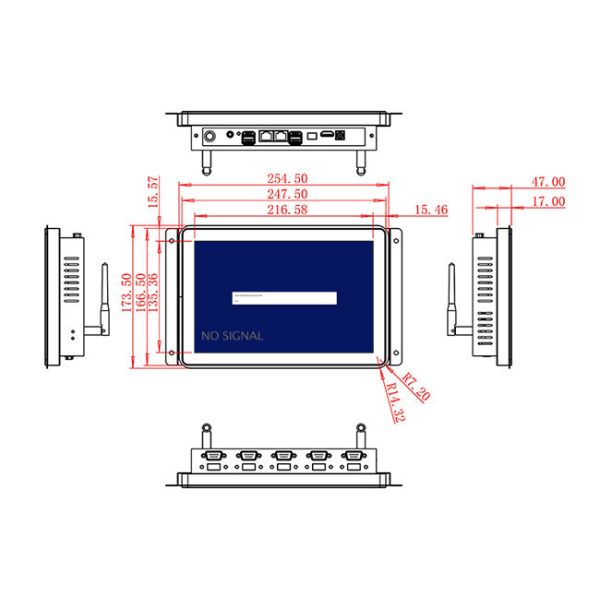

Package Size Device Dimensions 259.62 X 172.2 X 41.6 mm.
Net Weight 2 Kilogram
Package Size 31 X 23.3 X 11Centimeter
Gross Package Weight per Unit 4 Kilogram

10.1-Inch Display for Industrial HMI Panels and Retail Signage

10.1-Inch Display for Industrial HMI Panels and Retail Signage10.1-Inch Display for Industrial HMI Panels and Retail Signage

10.1-Inch Display for Industrial HMI Panels and Retail Signage10.1-Inch Display for Industrial HMI Panels and Retail Signage
