The 18.5-inch Android display offers a versatile and dynamic solution for digital menu boards in restaurants, cafes, and other food service businesses. Featuring a high-definition 1920 x 1080 resolution, this display ensures crisp and vibrant visuals, enhancing the customer experience by presenting detailed menus, daily specials, and promotions in an engaging format. With its wide viewing angles and 1200:1 contrast ratio, it guarantees clarity and readability from various positions, even in brightly lit environments. The built-in Android operating system allows for easy integration of custom apps for menu management, while the Wi-Fi and Ethernet connectivity support real-time updates, enabling operators to make quick changes to menus and pricing. Its low power consumption and robust temperature tolerance make it an ideal choice for continuous operation in commercial settings.
LCD Panel Parameters | Screen Size | 18.5 Inch | ||
Display Area | 409.8 mm.(Height) X 230.4(Width)mm. | |||
Aspect Ratio | 16 : 9 | |||
LCD Type | a-Si TFT-LCD Monitor | |||
Maximum Resolution | 1920 X 1080 | |||
Display Color | 16.7m , 72% NTSC | |||
Brightness | 250cd/m² | |||
Contrast Ratio | 1200 : 1 | |||
Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | |||
Response Time | 14ms | |||
LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
Field Frequency | 60Hertz | |||
Audio parameters | Audio system | Stereo | ||
Speaker size | ≈ 99 x 45 x 20 mm | |||
Impedance | 8 Ohm | |||
Power | 2 x 5 Watt | |||
Loudness | > 80 Decibel | |||
Interface | 4-pin connector | |||
Built-in Android PCB Configuration (Choose one of two) | CPU | Quad-Core RK3288, 1.8GHz | Quad-Core RK3568,2.0GHz | |
GPU | Mali-T764 | Mali-G52 | ||
RAM | 2GB | 4GB | ||
ROM | 32GB | 32GB | ||
Android System | Android 10.0 | Android 11 | ||
Ethernet | 1 x RJ45, 1,000 Mbps | Ethernet 1,000 Mbps | ||
Wireless Internet | 2.4Gigahertz | 2.4Gigahertz/5Gigahertz, Wi-Fi 6 | ||
Bluetooth | 4.2 | 5 | ||
Interface | USB2.0 x 2 | OTG USB2.0 x 1 | ||
Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
Maximum Power Loss | ≤ 30 Watt | |||
Standby Mode Power Loss | < 1 Watt | |||
Features | Operating Temperature | 0℃ ~ 50℃ | ||
Storage Temperature | Below 10℃ ~ +60℃ | |||

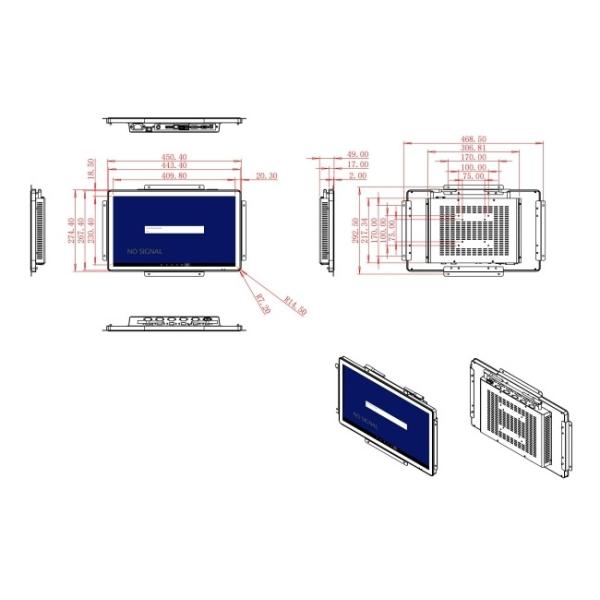

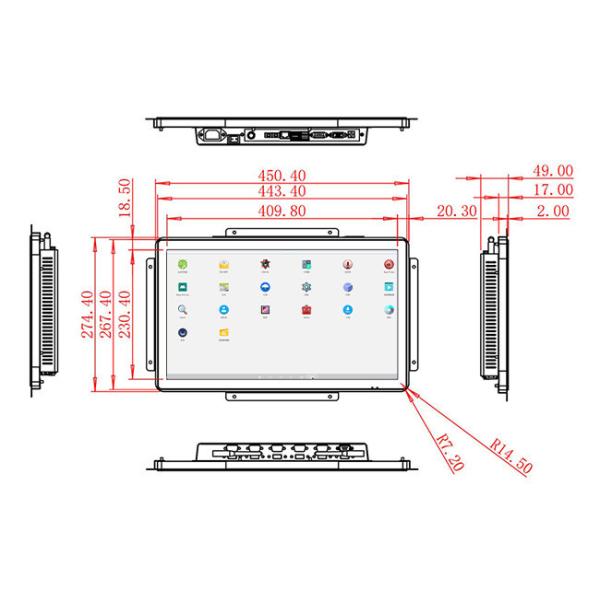

Package Size | Device Dimensions | 450.4 X 274.4 X 49mm | ||
Net Weight | 6.5 Kilogram | |||
Package Size | 53 X 35 X 15Centimeter | |||
Gross Package Weight per Unit | 7 Kilogram |
Beyond menus, the 18.5-inch touchscreen display is an excellent choice for interactive vending machines. With its large screen size and responsive touch functionality, it provides a seamless interface for customers to browse products, select options, and even make payments. The quad-core processor and high RAM capacity ensure smooth performance even when handling multiple transactions or processing complex inputs, such as custom orders or product configurations. Additionally, the Android 11 OS makes it easy to develop or integrate custom software for a more personalized customer interaction, offering a competitive edge in the fast-paced world of automated retail. The stereo audio system with a loudness of over 80 decibels further enhances the interactive experience by providing clear auditory feedback and announcements.
In smart retail environments and self-service kiosks, this Android monitor offers a powerful tool for enhancing the shopping experience. Retailers can use the 18.5-inch display to showcase digital catalogs, advertisements, and interactive product demos, providing customers with detailed information about products in an engaging manner. With its USB and Bluetooth capabilities, it can seamlessly integrate with additional peripherals, such as barcode scanners, printers, or even customer loyalty systems. The high brightness and wide color gamut ensure that content is displayed vividly, even in brightly lit stores, while its low energy consumption contributes to cost savings. The rugged design and ability to function in both high and low temperatures make it a reliable option for diverse commercial applications, whether in a busy shopping mall, airport, or healthcare facility.
