Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-E215BP
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
21.5 inch
Aspect Ratio :
16:9
Brightness :
250 cd/m²
Install Type :
Embedded, open-frame, wall-mounted, floor-standing
Suitable Environment :
Outdoor; Indoor
Applications :
Industrial control, medical equipment, automotive systems, various self-service terminals (new retail vending machines/financial terminals/information kiosks/parcel lockers/storage lockers/garbage recycling cabinets/charging stations, etc.), hospitality an
RAM+ROM :
4+128GB; 8+256GB
OS :
Win10 or win11 Optional
Description

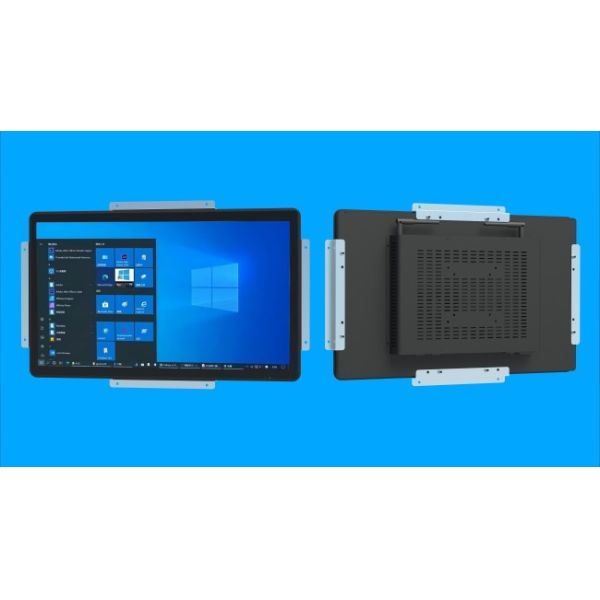

21.5-Inch Windows Digital Unit for Corporate Dashboards, Medical Equipment Interfaces, Logistics Control Systems, and Retail Advertising

The 21.5-Inch Windows Digital Unit is designed to elevate operations across a variety of industries, offering a robust display solution for corporate dashboards, medical equipment interfaces, logistics control systems, and retail advertising. Featuring a 1920 x 1080 Full HD resolution and 3000:1 contrast ratio, it ensures that every detail is presented clearly, even in bright environments. The 16.7 million colors and 250cd/m² brightness guarantee vibrant, high-quality visuals. Whether displaying key performance metrics in a corporate setting or showcasing product promotions in retail, the wide viewing angles (89° in all directions) make the display easily visible from various positions, enhancing accessibility for users in different environments.

LCD Panel Parameters Screen Size 21.5 Inch
Display Area 476.5 mm (Height) X 268 mm (Width)
Aspect Ratio 16 : 9
LCD Type TFT-LCD Monitor
Maximum Resolution 1920 X 1080
Display Color 16.7m
Brightness 250cd/
Contrast Ratio 3000 : 1
Viewing Angle (Up/Down/Left/Right) 89/89/89/89 (Type)(CR≥10)
Response Time 6.5ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
Audio parameters Audio system Stereo
Speaker size ≈ 99 x 45 x 20 mm
Impedance 8 Ohm
Power 2 x 5 Watt
Loudness > 80 Decibel
Interface 4-pin connector
Internal computer configuration
(Choose one of two)
CPU Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
Graphics Card Integrated Graphics Card Intel® HD 4600 Integrated Graphics Card Intel® HD 530
RAM 4GB 8GB
Storage Memory Capacity 128GB 256GB
OS Win10 or win11 Optional Win10 or win11 Optional
Wi-Fi Built-in Speed 150Mbps 802.11n wifi Integrated Speed 150Mbps 802.11n wifi Integrated
Media Format Video Format wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Audio Format MP3, WMA
Photo Format BMP, JPEG, PNG, GIF etc.
Onboard Interface Network port RJ45 X 1, 10M/100M Adjustable Ethernet
HDMI 1
USB 4
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 45 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0 ~ 50
Storage Temperature Below 10 ~ +60

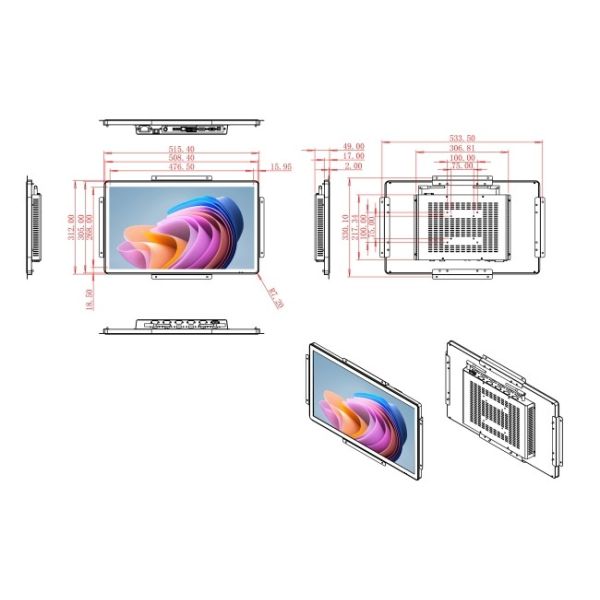

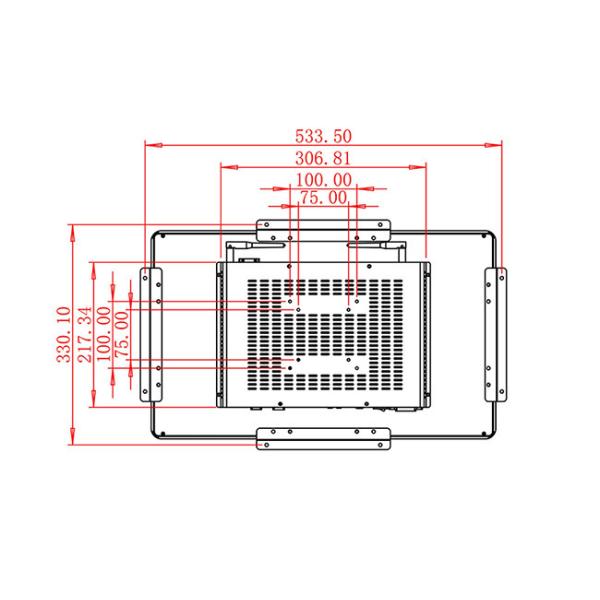

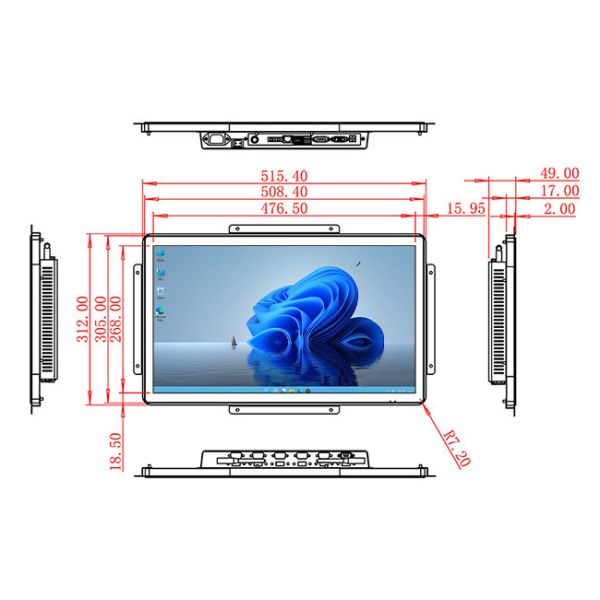

Package Size Device Dimensions 515.4 X 312 X 49 mm.
Net Weight 7 Kilogram
Package Size 60 X 40 X 15Centimeter
Gross Package Weight per Unit 7.5 Kilogram

Powered by Intel i5 processors and offering configurations with 4GB or 8GB of RAM, the 21.5-inch digital unit is built for versatility and performance. Its 128GB or 256GB storage options ensure smooth operation even for complex tasks such as monitoring live data feeds in logistics systems or integrating with medical devices for patient data management. The Wi-Fi capability and multiple connectivity options—including HDMI, USB, and Ethernet—ensure seamless integration with other networked systems. This makes it an ideal solution for use in smart hospitals or warehouses, where real-time data access and monitoring are crucial for operational efficiency.

21.5-Inch Windows Digital Unit for Corporate Dashboards, Medical Equipment Interfaces, Logistics Control Systems, and Retail Advertising

21.5-Inch Windows Digital Unit for Corporate Dashboards, Medical Equipment Interfaces, Logistics Control Systems, and Retail Advertising21.5-Inch Windows Digital Unit for Corporate Dashboards, Medical Equipment Interfaces, Logistics Control Systems, and Retail Advertising21.5-Inch Windows Digital Unit for Corporate Dashboards, Medical Equipment Interfaces, Logistics Control Systems, and Retail Advertising21.5-Inch Windows Digital Unit for Corporate Dashboards, Medical Equipment Interfaces, Logistics Control Systems, and Retail Advertising

Built to withstand a wide range of environmental conditions, this 21.5-inch unit operates effectively in temperatures from 0°C to 50°C, making it perfect for use in both indoor and controlled outdoor environments. Whether used as a retail advertising display, delivering engaging content and promotions to shoppers, or as part of a logistics control system to monitor inventory and supply chain management, this monitor’s 60,000-hour lifespan and low power consumption ensure long-lasting, reliable performance. With its sleek design and efficient power usage (≤45W max), this unit also helps businesses save on energy costs, all while providing an engaging, user-friendly interface for a variety of professional applications.
