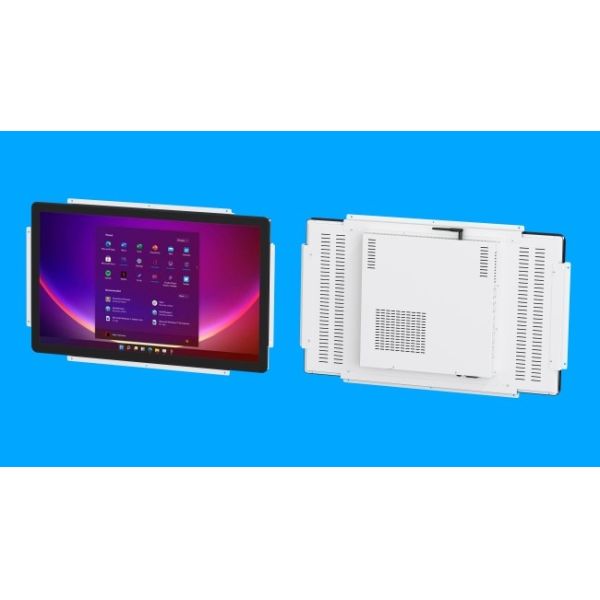

The 32-inch Windows Interactive Board offers a versatile solution for factory visualization and event displays, bringing high-definition, interactive displays to industrial and commercial environments. With a 1920x1080 resolution and a 400cd/m² brightness, it ensures clear visibility even in bright settings. For factories, this system allows for real-time monitoring of production lines, machinery health, and workflow optimizations. The board’s large 698mm x 391.8mm display area can be used to display detailed schematics, flow charts, and interactive data visualizations that allow operators and managers to make informed decisions quickly. Its high contrast ratio and wide viewing angles make it suitable for use in control rooms or manufacturing floors where workers need to view critical data from various positions.
LCD Panel Parameters | Screen Size | 32 Inch | ||
Display Area | 698 mm.(Height) X 391.8(Width)mm. | |||
Aspect Ratio | 16 : 9 | |||
LCD Type | a-Si TFT-LCD Monitor | |||
Maximum Resolution | 1920 X 1080 | |||
Display Color | 8 Bit + FRC Color 1.07G | |||
Brightness | 400cd/m² | |||
Contrast Ratio | 1200 : 1 | |||
Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | |||
Response Time | 8ms | |||
LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
Field Frequency | 60Hertz | |||
Audio parameters | Audio system | Stereo | ||
Speaker size | ≈ 99 x 45 x 20 mm | |||
Impedance | 8 Ohm | |||
Power | 2 x 5 Watt | |||
Loudness | > 80 Decibel | |||
Interface | 4-pin connector | |||
Internal computer configuration (Choose one of two) |
CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
RAM | 4GB | 8GB | ||
Storage Memory Capacity | 128GB | 256GB | ||
OS | Win10 or win11 Optional | Win10 or win11 Optional | ||
Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
Audio Format | MP3, WMA | |||
Photo Format | BMP, JPEG, PNG, GIF etc. | |||
Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
HDMI | 1 | |||
USB | 4 | |||
Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
Maximum Power Loss | ≤ 60 Watt | |||
Standby Mode Power Loss | < 1 Watt | |||
Features | Operating Temperature | 0℃ ~ 50℃ | ||
Storage Temperature | Below 10℃ ~ +60℃ | |||

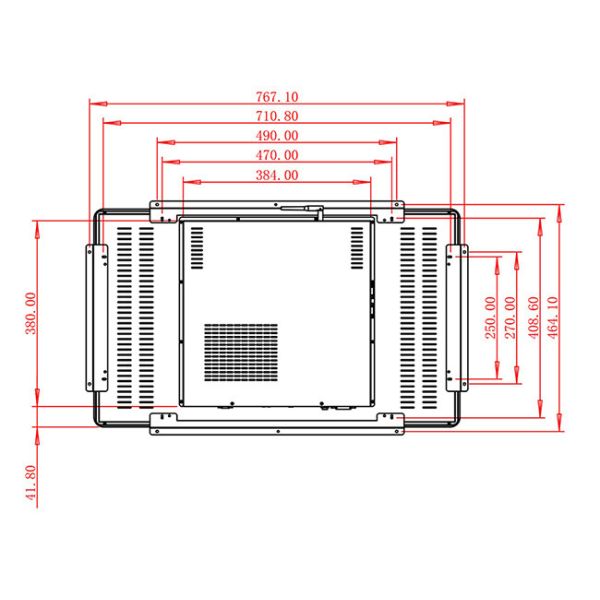

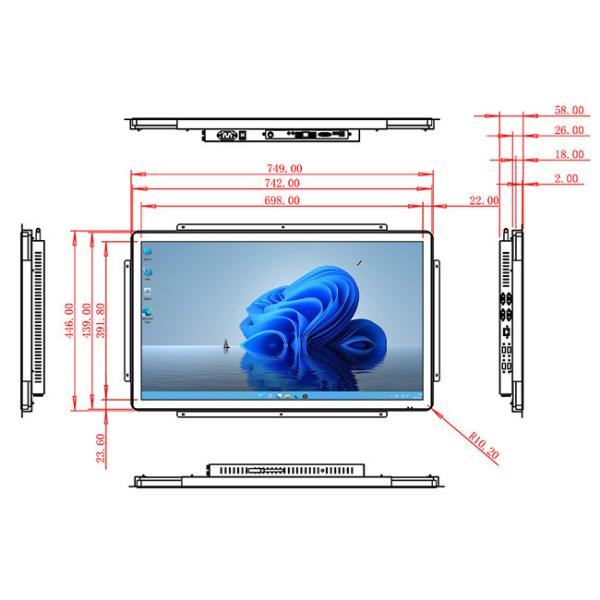

Package Size | Device Dimensions | 749 X 446 X 58 mm. | ||
Net Weight | 13 Kilogram | |||
Package Size | 83 X 53 X 15Centimeter | |||
Gross Package Weight per Unit | 15 Kilogram |
In smart city dashboards and public event displays, the 32-inch interactive board serves as an essential tool for delivering dynamic content to large audiences. Its 1.07 billion colors and 1200:1 contrast ratio ensure vibrant, eye-catching displays for digital signage in urban spaces, shopping malls, airports, and transportation hubs. City planners can also use this system to monitor traffic flow, weather patterns, and public services, integrating live data to provide actionable insights in a highly visible format. With the ability to connect to networks and display real-time content, this board can also be used for smart city information systems, offering live data on public events, weather updates, and emergency alerts.
In education systems, the 32-inch interactive board enhances the classroom experience with its high-definition visuals and multi-touch capabilities. Ideal for interactive learning, it can display educational content, multimedia lessons, and collaborative projects. Whether it’s for e-learning environments, virtual classrooms, or traditional schools, the display supports an engaging way to present information. Teachers can use the system to display interactive lessons, showing complex subjects in an easy-to-understand, visual format. Its use of Wi-Fi and USB connectivity ensures that resources can be shared and accessed quickly, making it an ideal tool for distance learning, online education platforms, or in universities where students and educators need an effective and interactive method of content delivery.
