The 21.5-inch high-definition monitor is a versatile solution for smart city applications, providing seamless integration with a wide array of public displays and digital signage systems. With its 1920 x 1080 resolution and vibrant 16.7 million colors, it ensures sharp and engaging visuals, making it ideal for public information kiosks, bus stop displays, or traffic control panels. The high brightness of 250 cd/m² ensures that the content remains legible even in outdoor settings, while its wide viewing angle allows for clear visibility from multiple directions. This makes the monitor perfect for dynamic content like advertising, wayfinding, and public announcements in busy urban environments.
LCD Panel Parameters | Screen Size | 21.5 Inch | ||
Display Area | 476.5 mm (Height) X 268 mm (Width) | |||
Aspect Ratio | 16 : 9 | |||
LCD Type | TFT-LCD Monitor | |||
Maximum Resolution | 1920 X 1080 | |||
Display Color | 16.7m | |||
Brightness | 250cd/m² | |||
Contrast Ratio | 3000 : 1 | |||
Viewing Angle (Up/Down/Left/Right) | 89/89/89/89 (Type)(CR≥10) | |||
Response Time | 6.5ms | |||
LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
Field Frequency | 60Hertz | |||
Audio parameters | Audio system | Stereo | ||
Speaker size | ≈ 99 x 45 x 20 mm | |||
Impedance | 8 Ohm | |||
Power | 2 x 5 Watt | |||
Loudness | > 80 Decibel | |||
Interface | 4-pin connector | |||
Internal computer configuration (Choose one of two) | CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
RAM | 4GB | 8GB | ||
Storage Memory Capacity | 128GB | 256GB | ||
OS | Win10 or win11 Optional | Win10 or win11 Optional | ||
Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
Audio Format | MP3, WMA | |||
Photo Format | BMP, JPEG, PNG, GIF etc. | |||
Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
HDMI | 1 | |||
USB | 4 | |||
Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
Maximum Power Loss | ≤ 45 Watt | |||
Standby Mode Power Loss | < 1 Watt | |||
Features | Operating Temperature | 0℃ ~ 50℃ | ||
Storage Temperature | Below 10℃ ~ +60℃ | |||

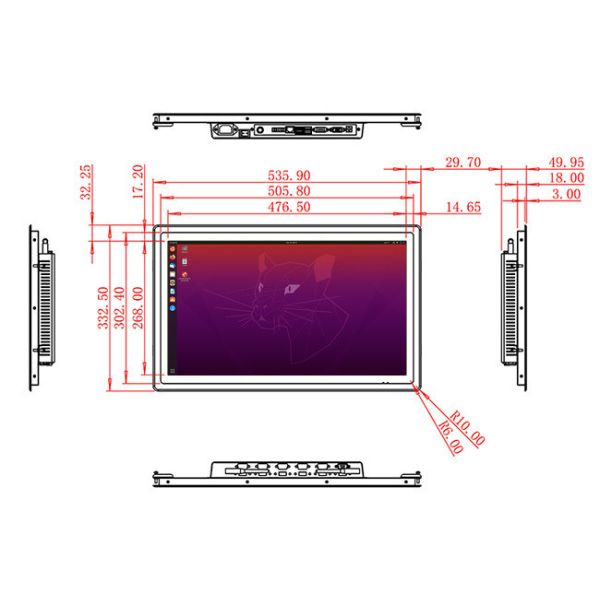

Package Size | Device Dimensions | 535.9 X 332.5 X 49.95 mm. | ||
Net Weight | 7 Kilogram | |||
Package Size | 62 X 42 X 15Centimeter | |||
Gross Package Weight per Unit | 7.5 Kilogram |
In retail and advertising, this large-format monitor serves as an essential tool for digital signage and interactive displays. Its 16:9 aspect ratio and high contrast ratio of 3000:1 deliver vivid, captivating visuals, making it perfect for shopping malls, airports, and train stations, where high-traffic and high-visibility areas require eye-catching displays. With built-in Wi-Fi and Ethernet connectivity, it can easily integrate into a content management system for dynamic scheduling and remote updates, ensuring businesses can push real-time promotions, advertisements, or interactive media. The display's low power consumption also ensures energy efficiency, which is critical for installations requiring constant operation.
For transportation hubs and public infrastructure, the 21.5-inch Linux-powered monitor offers an ideal platform for delivering critical information to commuters. It is well-suited for train stations, airports, or bus terminals where passengers require real-time updates on schedules, gate information, and safety announcements. The responsive 6.5ms refresh rate ensures that updates to information are displayed without delay, which is crucial in high-traffic environments. With built-in audio, this monitor can also support announcement systems for improved communication in public spaces, allowing for both visual and auditory alerts to be broadcast seamlessly. Its durability in varying temperatures makes it resilient for both indoor and outdoor installations, ensuring long-lasting performance in a wide range of public settings.
