Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-E170WLB
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
17.0 inch
Aspect Ratio :
16:9
Brightness :
400 cd/m²
Install Type :
Embedded, open-frame, wall-mounted, floor-standing
Suitable Environment :
Outdoor; Indoor
Applications :
Industrial control, medical equipment, automotive systems, various self-service terminals (new retail vending machines/financial terminals/information kiosks/parcel lockers/storage lockers/garbage recycling cabinets/charging stations, etc.), hospitality an
Description

17-Inch Reliable Linux Monitor for Industrial Operations and Security Panels

The 17-inch Linux monitor is engineered to excel in demanding industrial environments where reliable and high-performance displays are required. With its 1280x1024 resolution and 16.7 million colors, this monitor delivers sharp and vibrant visuals, ideal for factory operations, control room interfaces, and real-time data monitoring. The 250cd/m² brightness ensures that the display remains highly visible even in bright factory settings. Whether used for managing automated machinery, production tracking, or maintenance alerts, this display supports industrial tasks with precision. With its wide viewing angles and long lifespan, it’s perfect for use in critical operations that require around-the-clock performance in harsh industrial environments, such as quality control, equipment diagnostics, and system monitoring.

LCD Panel ParametersScreen Size17 Inch
Display Area337.92 mm.(Height) X 270.34(Width)mm.
Aspect Ratio16 : 9
LCD Typea-Si TFT-LCD Monitor
Maximum Resolution1280 X 1024
Display Color16.7M , 72% NTSC
Brightness250cd/m²
Contrast Ratio1200 : 1
Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)
Response Time20ms
LCD Panel Lifespan (Hours)60,000(Hour.)
Field Frequency60Hertz
Audio parametersAudio systemStereo
Speaker size≈ 99 x 45 x 20 mm
Impedance8 Ohm
Power2 x 5 Watt
Loudness> 80 Decibel
Interface4-pin connector
Internal computer configuration
(Choose one of two)
CPUIntel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHzIntel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
Graphics CardIntegrated Graphics Card Intel® HD 4600Integrated Graphics Card Intel® HD 530
RAM4GB8GB
Storage Memory Capacity128GB256GB
OSWin10 or win11 OptionalWin10 or win11 Optional
Wi-Fi Built-inSpeed 150Mbps 802.11n wifi IntegratedSpeed 150Mbps 802.11n wifi Integrated
Media FormatVideo Formatwmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Audio FormatMP3, WMA
Photo FormatBMP, JPEG, PNG, GIF etc.
Onboard InterfaceNetwork portRJ45 X 1, 10M/100M Adjustable Ethernet
HDMI1
USB4
PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
Maximum Power Loss≤ 30 Watt
Standby Mode Power Loss< 1 Watt
FeaturesOperating Temperature0℃ ~ 50℃
Storage TemperatureBelow 10℃ ~ +60℃

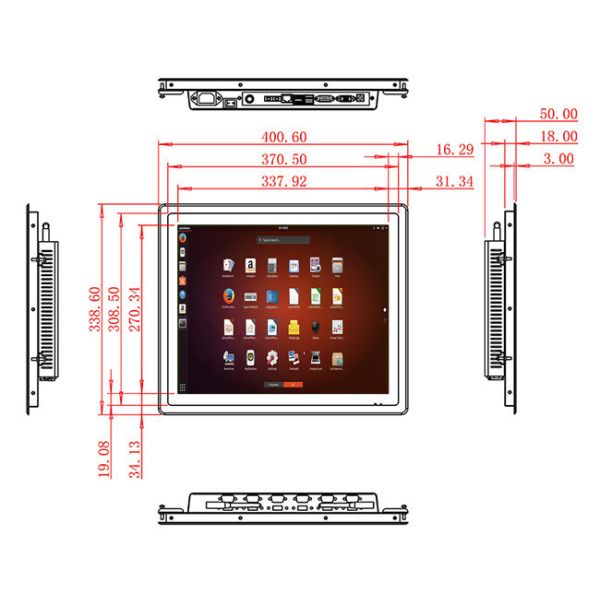

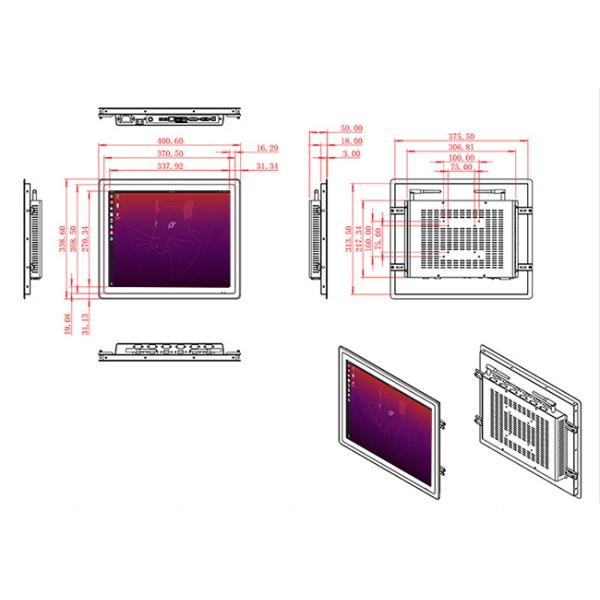

Package SizeDevice Dimensions400.6 X 338.6 X 50 mm.
Net Weight5.5 Kilogram
Package Size48 X 39 X 15 Centimeter
Gross Package Weight per Unit6 Kilogram


Designed for security and surveillance, the 17-inch precision monitor also plays a crucial role in video surveillance systems and security panels. Its high contrast ratio and sharp resolution make it ideal for monitoring multiple camera feeds in a security operations center. This monitor offers the ability to display clear video footage from security cameras in various lighting conditions, providing users with the ability to act swiftly and decisively. Whether it is for intruder detection, facility surveillance, or emergency response, the monitor is versatile enough to integrate with security software systems, offering a seamless visual interface for security personnel to monitor real-time events. The stereo audio system adds a layer of security functionality by enabling clear audio feedback for surveillance systems with embedded sound capabilities.

17-Inch Reliable Linux Monitor for Industrial Operations and Security Panels17-Inch Reliable Linux Monitor for Industrial Operations and Security Panels17-Inch Reliable Linux Monitor for Industrial Operations and Security Panels17-Inch Reliable Linux Monitor for Industrial Operations and Security Panels17-Inch Reliable Linux Monitor for Industrial Operations and Security Panels17-Inch Reliable Linux Monitor for Industrial Operations and Security Panels
Additionally, this 17-inch Linux display is perfect for embedded applications in transportation systems or interactive kiosks. With its integrated Wi-Fi and multiple interface options, this monitor can be easily adapted for use in public transportation terminals, ticketing systems, and wayfinding kiosks in airports, train stations, or retail environments. The multi-functional display supports a variety of media formats, including video, audio, and images, making it a flexible solution for information dissemination in public spaces. Whether being used to display real-time schedules, ticketing information, or interactive maps, this screen offers a durable and user-friendly interface for both customers and operators. Its rugged design and efficient power consumption also make it an ideal choice for applications that require continuous operation in dynamic, high-traffic environments.
