12.1-Inch Compact Linux Monitor for Medical Equipment and Automation Dashboards
12.1-Inch Compact Linux Monitor for Medical Equipment and Automation Dashboards
12.1-Inch Compact Linux Monitor for Medical Equipment and Automation Dashboards
12.1-Inch Compact Linux Monitor for Medical Equipment and Automation Dashboards
Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-E121WLS
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
12.1 inch
Aspect Ratio :
16:9
Brightness :
400 cd/m²
Install Type :
Embedded, open-frame, wall-mounted, floor-standing
Suitable Environment :
Outdoor; Indoor
Applications :
Industrial control, medical equipment, automotive systems, various self-service terminals (new retail vending machines/financial terminals/information kiosks/parcel lockers/storage lockers/garbage recycling cabinets/charging stations, etc.), hospitality an
Description

12.1-Inch Compact Linux Monitor for Medical Equipment and Automation Dashboards

LCD Panel Parameters Screen Size 12.1 Inch
Display Area 245.76 mm.(Height) X 184.32(Width)mm.
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD Monitor
Maximum Resolution 800 X 600 1280 X 800
Display Color 16.7M 16.7M
Brightness 350 cd/㎡ 400 cd/㎡
Contrast Ratio 1000 :1 1200 :1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10) 85°/85°/85°/85° (Type)(CR≥10)
Response Time 30ms 25ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
Audio parameters Audio system Stereo
Speaker size ≈ 99 x 45 x 20 mm
Impedance 8 Ohm
Power 2 x 5 Watt
Loudness > 80 Decibel
Interface 4-pin connector
Internal computer configuration
(Choose one of two)		 CPU Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
Graphics Card Integrated Graphics Card Intel® HD 4600 Integrated Graphics Card Intel® HD 530
RAM 4GB 8GB
Storage Memory Capacity 128GB 256GB
OS Win10 or win11 Optional Win10 or win11 Optional
Wi-Fi Built-in Speed 150Mbps 802.11n wifi Integrated Speed 150Mbps 802.11n wifi Integrated
Media Format Video Format wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Audio Format MP3, WMA
Photo Format BMP, JPEG, PNG, GIF etc.
Onboard Interface Network port RJ45 X 1, 10M/100M Adjustable Ethernet
HDMI 1
USB 4
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 25 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0℃ ~ 50℃
Storage Temperature Below 10℃ ~ +60℃

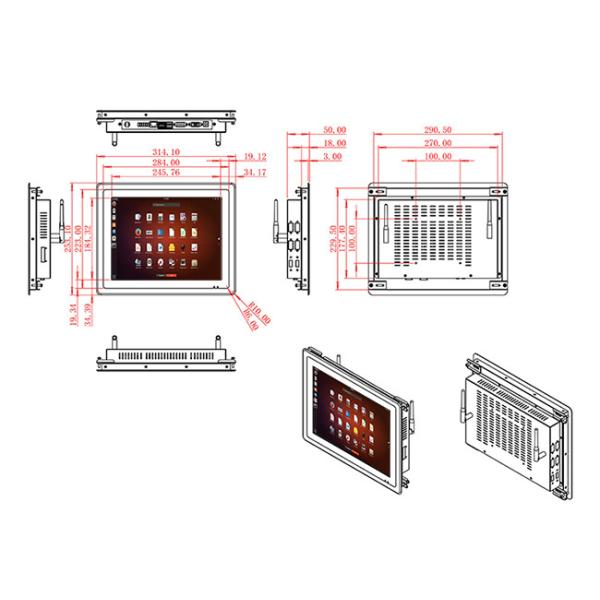

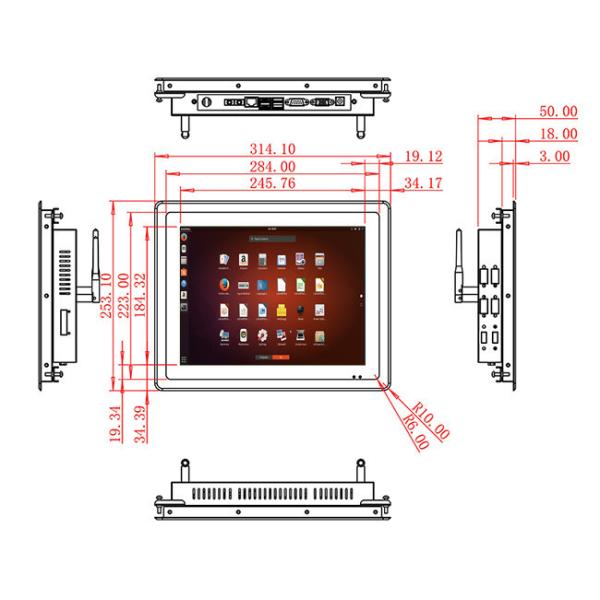

Package Size Device Dimensions 314.1 X 253.1 X 50mm.
Net Weight 3 Kilogram
Package Size 36.8 X 16.3 X 15Centimeter
Gross Package Weight per Unit 4 Kilogram

12.1-Inch Compact Linux Monitor for Medical Equipment and Automation Dashboards12.1-Inch Compact Linux Monitor for Medical Equipment and Automation Dashboards12.1-Inch Compact Linux Monitor for Medical Equipment and Automation Dashboards12.1-Inch Compact Linux Monitor for Medical Equipment and Automation Dashboards12.1-Inch Compact Linux Monitor for Medical Equipment and Automation Dashboards12.1-Inch Compact Linux Monitor for Medical Equipment and Automation Dashboards
