Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-E156WAB
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
15.6 inch
Aspect Ratio :
16:9
Brightness :
400 cd/m²
Install Type :
Embedded, open-frame, wall-mounted, floor-standing
Suitable Environment :
Outdoor; Indoor
Applications :
Industrial control, medical equipment, automotive systems, various self-service terminals (new retail vending machines/financial terminals/information kiosks/parcel lockers/storage lockers/garbage recycling cabinets/charging stations, etc.), hospitality an
Description

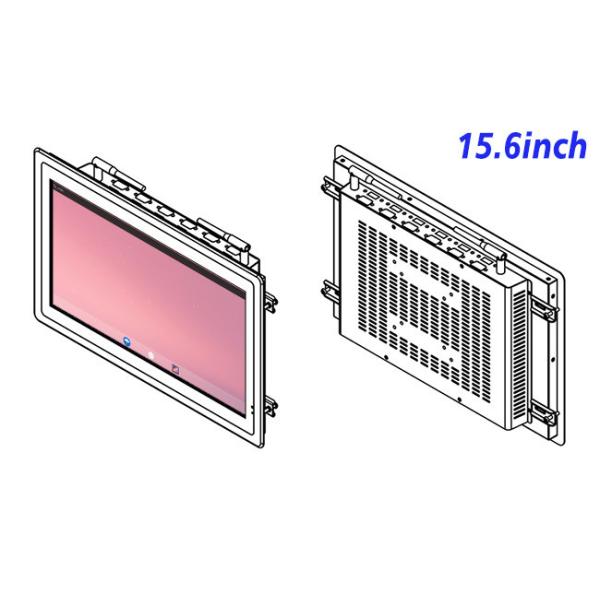

15.6-Inch Slim Android Display for Factory Dashboards and Automation Systems

The 15.6-inch slim Android display is a powerful and adaptable tool for factory dashboards and automation systems. With its high-definition 1920 x 1080 resolution, this monitor provides clear, precise visuals to display real-time data, machinery status, and operational analytics. Factory floors and manufacturing environments benefit from its bright and vivid display, enabling operators to monitor performance and detect issues with ease. The wide viewing angles ensure that critical information is visible from various positions, which is essential for team collaboration. Furthermore, the Android operating system simplifies integration with custom software solutions, allowing seamless communication between various machinery and automation platforms, improving overall efficiency.

LCD Panel Parameters Screen Size 15.6 Inch
Display Area 344.16 mm.(Height) X 193.59(Width)mm.
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD Monitor
Maximum Resolution 1920 X 1080
Display Color 16.7M , 72% NTSC
Brightness 250cd/m²
Contrast Ratio 700 : 1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10)
Response Time 30ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
Audio parameters Audio system Stereo
Speaker size ≈ 99 x 45 x 20 mm
Impedance 8 Ω
Power 2 x 5 Watt
Loudness > 80 Decibel
Interface 4-pin connector
Built-in Android PCB Configuration (Choose one of two) CPU Quad-Core RK3288, 1.8GHz Quad-Core RK3568,2.0GHz
GPU Mali-T764 Mali-G52
RAM 2GB 4GB
ROM 32GB 32GB
Android System Android 10.0 Android 11.0
Ethernet 1 x RJ45, 1,000 Mbps Ethernet 1,000 Mbps
Wireless Internet 2.4Gigahertz 2.4Gigahertz/5Gigahertz, Wi-Fi 6
Bluetooth 4.2 5
Interface USB2.0 x 2 USB2.0 x 2
HDMI IN x 1
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 30 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0℃ ~ 50℃
Storage Temperature Below 10℃ ~ +60℃

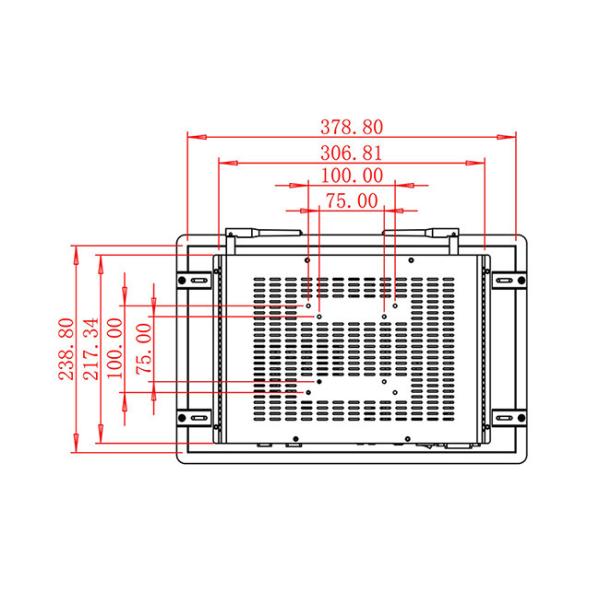

Package Size Device Dimensions 403.9 X 263.9X 50mm.
Net Weight 5 Kilogram
Package Size 47 X 33 X 15Centimeter
Gross Package Weight per Unit 5.5 Kilogram

In industrial environments, the 15.6-inch Android display can be utilized for real-time monitoring of production lines, inventory tracking, or machine diagnostics. The monitor’s durable design and long lifespan (up to 60,000 hours) make it suitable for continuous, long-term use in demanding conditions. With Wi-Fi and Ethernet connectivity, it easily integrates with IoT-enabled devices and cloud-based automation systems, enabling remote monitoring and control. This makes it ideal for smart factories, where data can be analyzed in real-time to enhance productivity and minimize downtime. Additionally, the multi-touch functionality of the screen ensures that operators can interact with the system directly, providing hands-on control over their operations.

15.6-Inch Slim Android Display for Factory Dashboards and Automation Systems15.6-Inch Slim Android Display for Factory Dashboards and Automation Systems15.6-Inch Slim Android Display for Factory Dashboards and Automation Systems15.6-Inch Slim Android Display for Factory Dashboards and Automation Systems15.6-Inch Slim Android Display for Factory Dashboards and Automation Systems15.6-Inch Slim Android Display for Factory Dashboards and Automation Systems

This 15.6-inch display also finds its place in transportation management systems and vehicle fleet tracking. The vibrant, full-HD display allows for clear GPS tracking, traffic monitoring, and vehicle diagnostics, making it an essential part of fleet management dashboards. With its rugged design, it can withstand the vibrations and temperature fluctuations typical of vehicles or transport environments, providing a reliable tool for fleet operators. The inclusion of Bluetooth and USB interfaces ensures that it can be connected with a variety of external devices, including GPS sensors and vehicle monitoring systems. Whether used for live traffic updates, vehicle performance data, or route optimization, the monitor delivers a dynamic and versatile solution for fleet management professionals.
