Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-E170WAB
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
17.0 inch
Aspect Ratio :
16:9
Brightness :
400 cd/m²
Install Type :
Embedded, open-frame, wall-mounted, floor-standing
Suitable Environment :
Outdoor; Indoor
Applications :
Industrial control, medical equipment, automotive systems, various self-service terminals (new retail vending machines/financial terminals/information kiosks/parcel lockers/storage lockers/garbage recycling cabinets/charging stations, etc.), hospitality an
Description

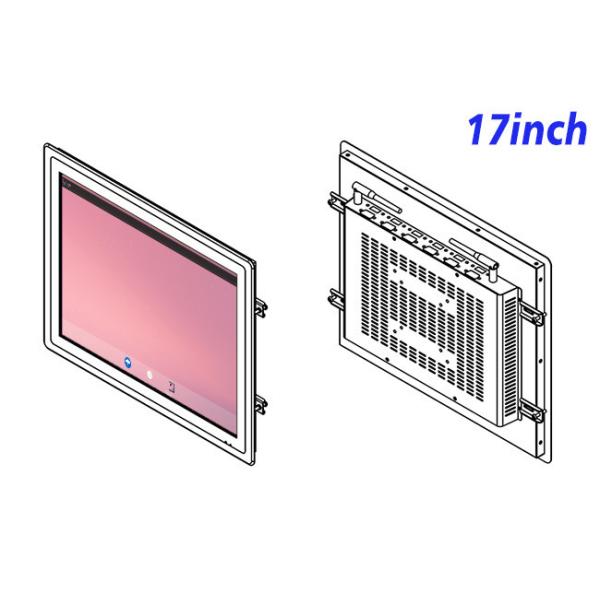

17-Inch Integrated Android Screen for Industrial Equipment and Security Solutions

The 17-inch integrated Android display is a perfect solution for industrial equipment where clarity and functionality are crucial for operational success. Whether in manufacturing plants, assembly lines, or machinery control rooms, this monitor offers clear, crisp visuals with a 1280x1024 resolution, ensuring that real-time data such as equipment performance, production status, and safety protocols are easily accessible at a glance. Its high contrast ratio (1200:1) ensures clear readability even in environments with fluctuating lighting conditions, while the wide viewing angles guarantee visibility from different positions. Equipped with Android-based software, it supports customizable interfaces and easy integration with industrial equipment, making it a versatile tool for managing complex processes and improving workflow efficiency.

LCD Panel Parameters Screen Size 17 Inch
Display Area 337.92 mm.(Height) X 270.34(Width)mm.
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD Monitor
Maximum Resolution 1280 X 1024
Display Color 16.7M , 72% NTSC
Brightness 250cd/m²
Contrast Ratio 1200 : 1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10)
Response Time 20ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
Audio parameters Audio system Stereo
Speaker size ≈ 99 x 45 x 20 mm
Impedance 8 Ohm
Power 2 x 5 Watt
Loudness > 80 Decibel
Interface 4-pin connector
Built-in Android PCB Configuration (Choose one of two) CPU Quad-Core RK3288, 1.8GHz Quad-Core RK3568,2.0GHz
GPU Mali-T764 Mali-G52
RAM 2GB 4GB
ROM 32GB 32GB
Android System Android 10.0 Android 13.0
Ethernet 1 x RJ45, 1,000 Mbps Ethernet 1,000 Mbps
Wireless Internet 2.4Gigahertz 2.4Gigahertz/5Gigahertz, Wi-Fi 6
Bluetooth 4.2 5
Interface USB2.0 x 2 OTG USB2.0 x 1
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 30 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0℃ ~ 50℃
Storage Temperature Below 10℃ ~ +60℃

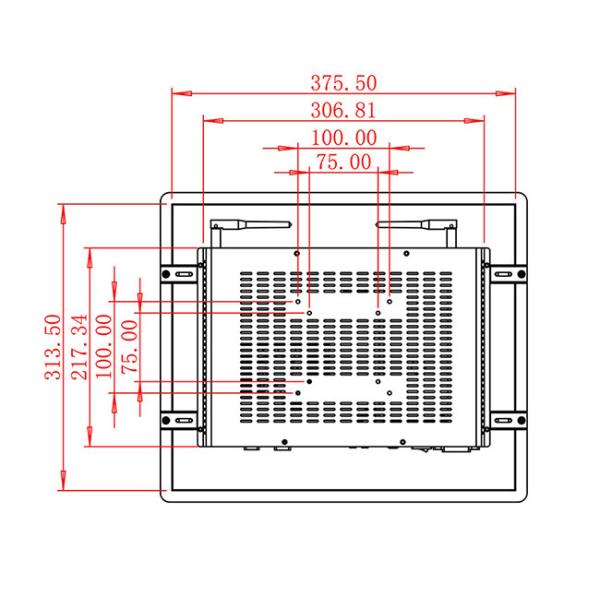

Package Size Device Dimensions 400.6 X 338.6 X 50 mm.
Net Weight 5.5 Kilogram
Package Size 48 X 39 X 15 Centimeter
Gross Package Weight per Unit 6 Kilogram

Another important application of the 17-inch Android monitor is within security systems where reliability and precision are paramount. For security control rooms, surveillance stations, or smart security devices, this monitor is an excellent choice for displaying real-time footage from security cameras, access control systems, and incident alerts. Its responsive performance and high-resolution capabilities enable sharp, high-quality video and image viewing, even in multi-camera setups. The built-in Bluetooth and Ethernet connections provide seamless integration with networked devices, allowing security personnel to manage data from different locations efficiently. Additionally, its robust Android system supports remote configuration, making it easy to monitor and control security systems remotely, whether on-site or off-site.

17-Inch Integrated Android Screen for Industrial Equipment and Security Solutions17-Inch Integrated Android Screen for Industrial Equipment and Security Solutions17-Inch Integrated Android Screen for Industrial Equipment and Security Solutions17-Inch Integrated Android Screen for Industrial Equipment and Security Solutions17-Inch Integrated Android Screen for Industrial Equipment and Security Solutions17-Inch Integrated Android Screen for Industrial Equipment and Security Solutions

Beyond industrial and security uses, the 17-inch Android screen serves as a dynamic interface for public information systems and interactive kiosks. This monitor is a strong candidate for use in places like transportation terminals, malls, or conference centers, offering interactive wayfinding, visitor information, and real-time announcements. The high brightness level ensures that the screen remains visible even in well-lit or outdoor environments. Its Android operating system allows for intuitive software and content updates, which can be managed remotely across multiple units. With the integrated audio system, it can also deliver audio instructions or advertisements, enhancing the overall user experience in public-facing installations. The monitor’s versatility and adaptability make it ideal for a range of customer-facing applications, where ease of use and reliability are critical.
