Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-E185WPBWFS
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
18.5 inch
Aspect Ratio :
16:9
Brightness :
400 cd/m²
Install Type :
Embedded, open-frame, wall-mounted, floor-standing
Suitable Environment :
Outdoor; Indoor
Applications :
Industrial control, medical equipment, automotive systems, various self-service terminals (new retail vending machines/financial terminals/information kiosks/parcel lockers/storage lockers/garbage recycling cabinets/charging stations, etc.), hospitality an
Description

18.5-Inch Durable Windows Screen for Transportation Panels and Equipment Control

The 18.5-inch Windows monitor is engineered to be a versatile and durable solution for transportation panels and equipment control systems in demanding environments. Featuring a 1920 x 1080 resolution and 1200:1 contrast ratio, it provides crisp and vibrant visuals, making it perfect for tracking vehicle fleets, transportation management systems, or railway monitoring. This display excels in dynamic, high-speed environments, offering excellent viewing angles and quick response times, ideal for traffic control centers and bus depots where real-time data on vehicle status and system performance is crucial. Its robust design and high-performance Intel i5 processor with optional Wi-Fi capability ensure it remains operational in remote or mobile settings.

LCD Panel ParametersScreen Size18.5 Inch
Display Area409.8 mm.(Height) X 230.4(Width)mm.
Aspect Ratio16 : 9
LCD Typea-Si TFT-LCD Monitor
Maximum Resolution1920 X 1080
Display Color16.7m , 72% NTSC
Brightness250cd/m²
Contrast Ratio1200 : 1
Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)
Response Time14ms
LCD Panel Lifespan (Hours)60,000(Hour.)
Field Frequency60Hertz
Audio parametersAudio systemStereo
Speaker size≈ 99 x 45 x 20 mm
Impedance8 Ohm
Power2 x 5 Watt
Loudness> 80 Decibel
Interface4-pin connector
Internal computer configuration
(Choose one of two)
CPUIntel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHzIntel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
Graphics CardIntegrated Graphics Card Intel® HD 4600Integrated Graphics Card Intel® HD 530
RAM4GB8GB
Storage Memory Capacity128GB256GB
OSWin10 or win11 OptionalWin10 or win11 Optional
Wi-Fi Built-inSpeed 150Mbps 802.11n wifi IntegratedSpeed 150Mbps 802.11n wifi Integrated
Media FormatVideo Formatwmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Audio FormatMP3, WMA
Photo FormatBMP, JPEG, PNG, GIF etc.
Onboard InterfaceNetwork portRJ45 X 1, 10M/100M Adjustable Ethernet
HDMI1
USB4
PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
Maximum Power Loss≤ 30 Watt
Standby Mode Power Loss< 1 Watt
FeaturesOperating Temperature0℃ ~ 50℃
Storage TemperatureBelow 10℃ ~ +60℃

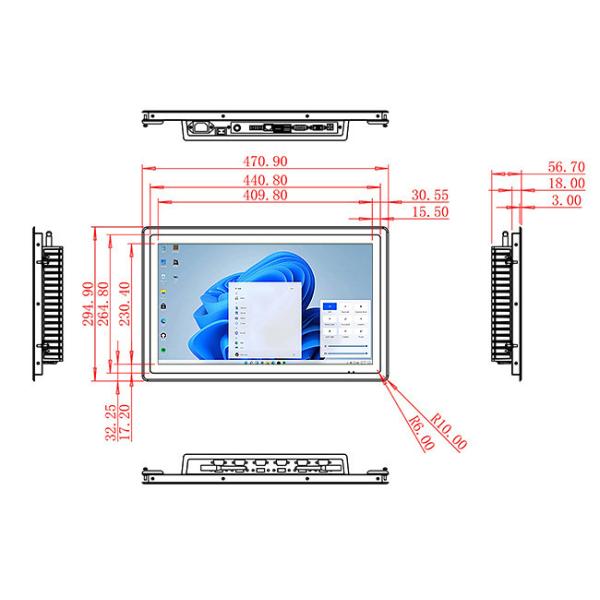

Package SizeDevice Dimensions470.9 X 294.9 X 56.7mm
Net Weight6.5 Kilogram
Package Size55 X 38 X 15Centimeter
Gross Package Weight per Unit7 Kilogram


In the realm of industrial control panels, the 18.5-inch display is an ideal choice for operators requiring a user-friendly interface to manage complex machinery and equipment. With its stereo speakers and powerful graphics card, it enhances control room operations by offering both visual and auditory feedback during equipment maintenance or troubleshooting. Whether used in oil rigs, mining operations, or manufacturing plants, this screen provides a high-performance solution for real-time monitoring, data visualization, and troubleshooting. It can easily integrate into existing industrial systems, facilitating smooth operation and reducing downtime with its intuitive Windows-based system.

18.5-Inch Durable Windows Screen for Transportation Panels and Equipment Control18.5-Inch Durable Windows Screen for Transportation Panels and Equipment Control18.5-Inch Durable Windows Screen for Transportation Panels and Equipment Control18.5-Inch Durable Windows Screen for Transportation Panels and Equipment Control18.5-Inch Durable Windows Screen for Transportation Panels and Equipment Control18.5-Inch Durable Windows Screen for Transportation Panels and Equipment Control
For smart city applications and automated kiosks, the 18.5-inch screen serves as an essential component for interactive public information displays. Its high brightness and wide viewing angles ensure that it remains legible even in outdoor or brightly lit environments. This monitor can be utilized in ticketing systems, information booths, and interactive signage, making it an excellent fit for airports, bus stations, and train terminals. Furthermore, with its low power consumption and long lifespan, it ensures minimal operational costs in public infrastructure while delivering a reliable, easy-to-maintain solution for various user-facing functions.
