The 17-inch Android monitor is an indispensable tool in industrial monitoring applications, where its high contrast ratio and large display area help optimize workflow and improve visibility. Whether in control rooms overseeing factory production lines or in environmental monitoring systems, this display provides real-time data and visual feedback to operators. Its 1280x1024 resolution ensures that operators can accurately observe critical performance metrics, while its Android OS allows for easy integration with custom apps or remote control systems, making it highly adaptable to various industrial environments. With Ethernet connectivity and Wi-Fi 6, it can also communicate seamlessly with other networked devices to deliver comprehensive insights into machine performance, safety parameters, and operational statuses, contributing to better decision-making in energy plants, manufacturing facilities, and automated warehouses.
LCD Panel Parameters | Screen Size | 17 Inch | ||
Display Area | 337.92 mm.(Height) X 270.34(Width)mm. | |||
Aspect Ratio | 16 : 9 | |||
LCD Type | a-Si TFT-LCD Monitor | |||
Maximum Resolution | 1280 X 1024 | |||
Display Color | 16.7M , 72% NTSC | |||
Brightness | 250cd/m² | |||
Contrast Ratio | 1200 : 1 | |||
Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | |||
Response Time | 20ms | |||
LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
Field Frequency | 60Hertz | |||
Audio parameters | Audio system | Stereo | ||
Speaker size | ≈ 99 x 45 x 20 mm | |||
Impedance | 8 Ohm | |||
Power | 2 x 5 Watt | |||
Loudness | > 80 Decibel | |||
Interface | 4-pin connector | |||
Built-in Android PCB Configuration (Choose one of two) | CPU | Quad-Core RK3288, 1.8GHz | Quad-Core RK3568,2.0GHz | |
GPU | Mali-T764 | Mali-G52 | ||
RAM | 2GB | 4GB | ||
ROM | 32GB | 32GB | ||
Android System | Android 10.0 | Android 13.0 | ||
Ethernet | 1 x RJ45, 1,000 Mbps | Ethernet 1,000 Mbps | ||
Wireless Internet | 2.4Gigahertz | 2.4Gigahertz/5Gigahertz, Wi-Fi 6 | ||
Bluetooth | 4.2 | 5 | ||
Interface | USB2.0 x 2 | OTG USB2.0 x 1 | ||
Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
Maximum Power Loss | ≤ 30 Watt | |||
Standby Mode Power Loss | < 1 Watt | |||
Features | Operating Temperature | 0℃ ~ 50℃ | ||
Storage Temperature | Below 10℃ ~ +60℃ | |||

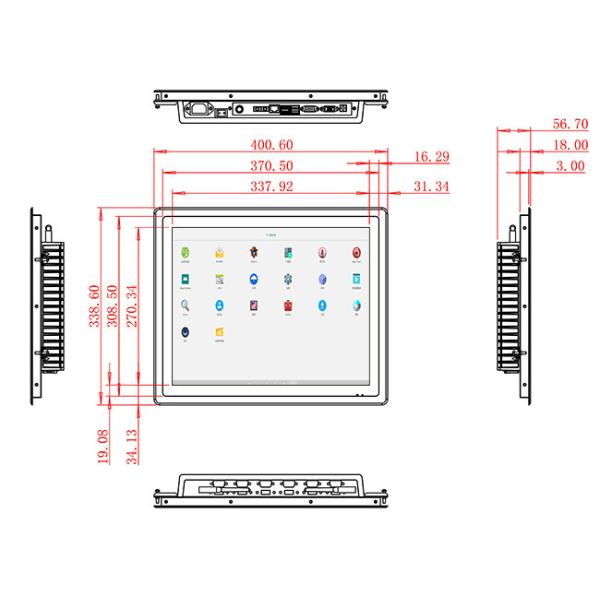

Package Size | Device Dimensions | 400.6 X 338.6 X 56.7 mm. | ||
Net Weight | 5.5 Kilogram | |||
Package Size | 48 X 39 X 15 Centimeter | |||
Gross Package Weight per Unit | 6 Kilogram |
In logistics and supply chain management, this 17-inch display proves invaluable for streamlining operations. With its stereo audio system and 4-pin connectors, it can be integrated into tracking systems for real-time updates on shipments and inventory, making it perfect for use in warehouses, distribution centers, and delivery vehicles. By providing clear visual indicators for package location, storage conditions, or stock availability, it enhances operational efficiency and reduces the chances of human error. Warehouse managers can monitor the flow of goods, schedule deliveries, and view alerts or notifications about inventory levels directly from the screen. The added Bluetooth 5.0 functionality ensures that peripheral devices like barcode scanners or RFID systems are easily linked to the screen for a complete, integrated solution.
The 17-inch Android display also has broad applications in vehicle fleet management, where its rugged design and long lifespan make it perfect for use in delivery trucks, service vehicles, or logistics fleets. Its multi-angle viewing and high brightness capabilities allow drivers to access live information such as route guidance, traffic updates, and vehicle diagnostics in all conditions. Moreover, the USB ports and HDMI input make it highly versatile, enabling it to interact with navigation systems, vehicle telematics, or mobile devices for a complete management solution. Fleet managers can remotely monitor vehicle status, ensuring efficient route planning and maintenance schedules, ultimately reducing downtime and increasing fleet productivity. The Android platform also provides the flexibility to run custom applications for real-time monitoring, driver behavior analysis, and maintenance tracking, offering a comprehensive solution for transportation companies.
