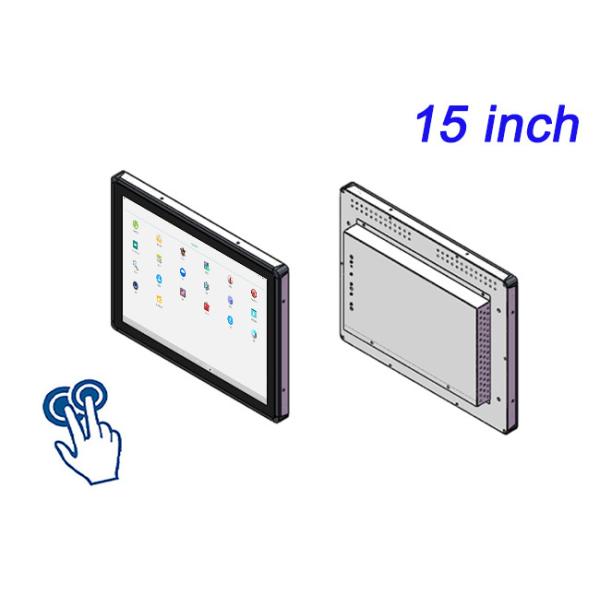

15-Inch Android Embedded Touch Screen for Security Systems, Warehouse Automation, Vending Machines, and Transportation Interfaces
15-Inch Android Embedded Touch Screen for Security Systems, Warehouse Automation, Vending Machines, and Transportation Interfaces
15-Inch Android Embedded Touch Screen for Security Systems, Warehouse Automation, Vending Machines, and Transportation Interfaces
15-Inch Android Embedded Touch Screen for Security Systems, Warehouse Automation, Vending Machines, and Transportation Interfaces
15-Inch Android Embedded Touch Screen for Security Systems, Warehouse Automation, Vending Machines, and Transportation Interfaces
15-Inch Android Embedded Touch Screen for Security Systems, Warehouse Automation, Vending Machines, and Transportation Interfaces
15-Inch Android Embedded Touch Screen for Security Systems, Warehouse Automation, Vending Machines, and Transportation Interfaces
15-Inch Android Embedded Touch Screen for Security Systems, Warehouse Automation, Vending Machines, and Transportation Interfaces
15-Inch Android Embedded Touch Screen for Security Systems, Warehouse Automation, Vending Machines, and Transportation Interfaces
15-Inch Android Embedded Touch Screen for Security Systems, Warehouse Automation, Vending Machines, and Transportation Interfaces
Specifications
Model Number :
ZXTLCD-RM150SAT
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight case are option
Screen Size :
15 inch
Aspect Ratio :
16：9
Brightness :
300 cd/m²
Install Type :
Embedded, open-frame, wall-mounted, floor-standing
Suitable Environment :
Outdoor; Indoor
Applications :
Industrial control, medical equipment, automotive systems, various self-service terminals (new retail vending machines/financial terminals/information kiosks/parcel lockers/storage lockers/garbage recycling cabinets/charging stations, etc.), hospitality an
Andriod OS :
10.0; 13.0
Config :
2+32GB; 4+32GB
Brand Name :
ZXTLCD
Description

15-Inch Android Touch Embedded Screen for Security Systems, Warehouse Automation, Vending Machines, and Transportation Interfaces

Smart Home Control Upgrade, 15-inch Embedded Android Industrial All-in-One Machine Becomes Control Hub

In the smart home field, an efficient control hub system is key to enhancing user experience. The 15-inch embedded Android industrial all-in-one machine, with its outstanding performance and stable operation, is becoming the preferred choice for smart home control hub systems.

15-Inch Android Embedded Touch Screen for Security Systems, Warehouse Automation, Vending Machines, and Transportation Interfaces

15-inch Embedded Android Industrial All-in-One Machine: Efficient Control, Enhancing User Experience

In the Smart Home Control Hub System, the 15-inch embedded Android industrial all-in-one machine provides users with a smooth operating experience due to its efficient processing capabilities. It not only responds quickly to user operation commands but also operates various control software stably, bringing convenience to users as a control platform. Moreover, its durable design allows it to operate stably in home environments for an extended period.

LCD Panel Parameters Screen Size 15 Inch
Display Area 304.2 mm.(Height) X 228(Width)mm.
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD Monitor
Maximum Resolution 1024 X 768
Display Color 262K/16.2M , 72% NTSC
Brightness 300cd/m²
Contrast Ratio 1500 : 1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10)
Response Time 15ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
PCAP Touchscreen Panel Parameters Touch Pattern Projected Capacitive Touchscreen Monitor
Touch Points 10 Points
Cover Glass Morse Glass Size 7 Physically reinforced to prevent explosion
Glass 3 mm. Optical mount to reduce parallax
Glass Transmission >85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
Response Speed < 6ms
Touch Accuracy More than 90% of the touch area ±2 mm
Touch Method Inch Stylus
Output Format Coordinate Output
Click Time Unlimited
Smallest Touch Size 5 mm
Long-lasting Durability Yes, Available
Touch Interface USB
Operating Temperature and Humidity Below 10℃ ~ +50℃, ≤ 85%RH
Storage Temperature and Humidity Less than 20℃ ~ +60℃, ≤ 90%RH
Built-in Speaker Power 2 x 5W
Built-in Android PCB Configuration (Choose one of two) CPU Quad-Core RK3288, 1.8GHz Quad-Core RK3568,2.0GHz
GPU Mali-T764 Mali-G52
RAM 2GB 4GB
ROM 32GB 32GB
Android System Android 10.0 Android 13.0
Ethernet 1 x RJ45, 1,000 Mbps Ethernet 1,000 Mbps
Wireless Internet 2.4Gigahertz 2.4Gigahertz/5Gigahertz, Wi-Fi 6
Bluetooth 4.2 5
Interface USB2.0 x 2 OTG USB2.0 x 1
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 25 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0℃ ~ 50℃
Storage Temperature Below 10℃ ~ +60℃
Package Size Device Dimensions 351 X 275X 50.7mm.
Net Weight 5 Kilogram
Package Size 41.2 X 34 X 11Centimeter
Gross Package Weight per Unit 5.5 Kilogram

15-Inch Android Embedded Touch Screen for Security Systems, Warehouse Automation, Vending Machines, and Transportation Interfaces

15-inch Android Embedded Industrial Control Machine: Stable Operation, Enhancing System Reliability

At the same time, the 15-inch Android embedded industrial control machine also plays an important role in the Smart Home Control Hub System. It not only operates the Android system stably but also is compatible with various control software, providing users with more accurate data. Additionally, its silent design and low power consumption make it suitable for use in quiet environments.

15-Inch Android Embedded Touch Screen for Security Systems, Warehouse Automation, Vending Machines, and Transportation Interfaces

The 15-inch embedded Android industrial all-in-one machine and the 15-inch Android embedded industrial control machine, with their outstanding performance and stable operation, are becoming new choices for smart home control hub systems. They not only enhance user experience but also improve the reliability of the system. In the future, with the continuous advancement of technology, they will play a greater role in the smart home field.
