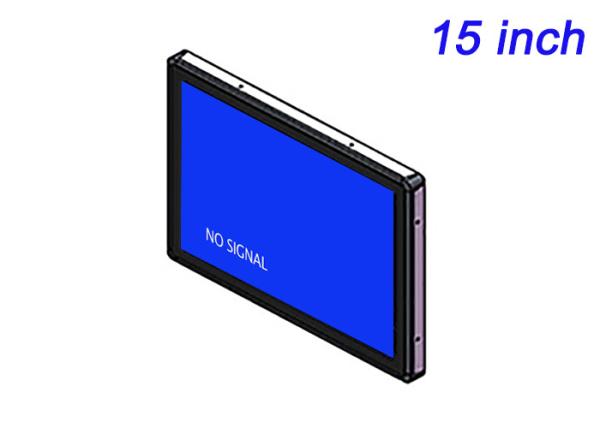

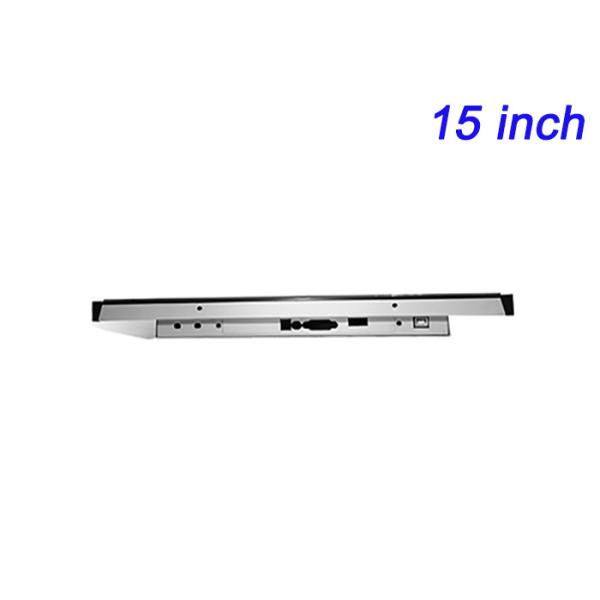

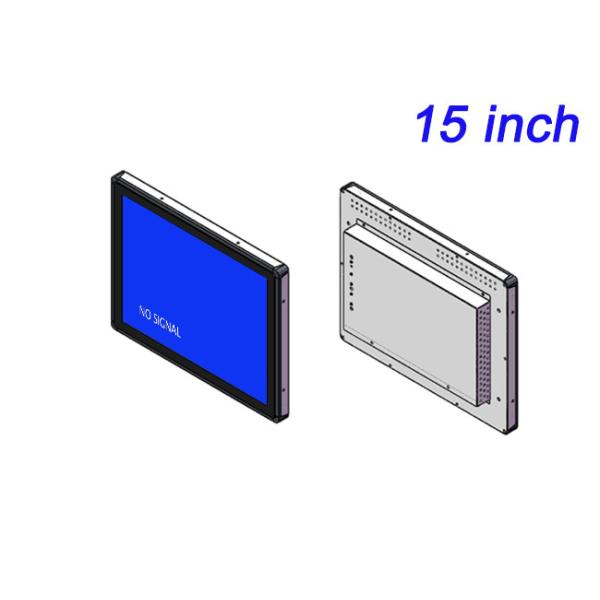

15-Inch Embedded Monitor for Security Systems, Transportation Displays, Process Monitoring, and Public Information Panels
15-Inch Embedded Monitor for Security Systems, Transportation Displays, Process Monitoring, and Public Information Panels
15-Inch Embedded Monitor for Security Systems, Transportation Displays, Process Monitoring, and Public Information Panels
15-Inch Embedded Monitor for Security Systems, Transportation Displays, Process Monitoring, and Public Information Panels
15-Inch Embedded Monitor for Security Systems, Transportation Displays, Process Monitoring, and Public Information Panels
15-Inch Embedded Monitor for Security Systems, Transportation Displays, Process Monitoring, and Public Information Panels
15-Inch Embedded Monitor for Security Systems, Transportation Displays, Process Monitoring, and Public Information Panels
15-Inch Embedded Monitor for Security Systems, Transportation Displays, Process Monitoring, and Public Information Panels
15-Inch Embedded Monitor for Security Systems, Transportation Displays, Process Monitoring, and Public Information Panels
15-Inch Embedded Monitor for Security Systems, Transportation Displays, Process Monitoring, and Public Information Panels
Specifications
Model Number :
ZXTLCD-RM150SM
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight case are option
Screen Size :
15 inch
Aspect Ratio :
16：9
Brightness :
300 cd/m²
Install Type :
Embedded, open-frame, wall-mounted, floor-standing
Suitable Environment :
Outdoor; Indoor
Applications :
Industrial control, medical equipment, automotive systems, various self-service terminals (new retail vending machines/financial terminals/information kiosks/parcel lockers/storage lockers/garbage recycling cabinets/charging stations, etc.), hospitality an
Brand Name :
ZXTLCD
Description

15-Inch Embedded Monitor for Security Systems, Transportation Displays, Process Monitoring, and Public Information Panels

A New Partner in the Smart Automotive Field, the 15-inch Embedded Industrial Control All-in-One Machine Supports Future Mobility

With the rapid development of smart automotive technology, the demand for high-performance and stable control systems is growing. The 15-inch embedded industrial control all-in-one machine is designed specifically for the smart automotive field, providing a comprehensive control solution that is non-touch but fully functional.

15-Inch Embedded Monitor for Security Systems, Transportation Displays, Process Monitoring, and Public Information Panels

15-inch Embedded Industrial Control All-in-One Machine: Stable and Reliable, Navigating Complex In-Vehicle Environments

In the field of smart vehicles, the stability and reliability of onboard systems are crucial. The 15-inch embedded industrial control all-in-one machine, with its outstanding performance and durable design, can maintain stable operation even in environments with frequent vibrations and temperature fluctuations, ensuring smooth operation of onboard systems and providing drivers with a reassuring travel experience.

LCD Panel Parameters Screen Size 15 Inch
Display Area 304.2 mm.(Height) X 228(Width)mm.
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD Monitor
Maximum Resolution 1024 X 768
Display Color 262K/16.2M , 72% NTSC
Brightness 300cd/m²
Contrast Ratio 1500 : 1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10)
Response Time 15ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
Audio Parameters
(External Speaker Option)		 Audio system Stereo
Speaker size ≈ 99 x 45 x 20 mm
Impedance 8 Ohm
Power 2 x 5 Watt
Loudness > 80 Decibel
Interface 4-pin connector
Onboard Interface HDMI Input 1
VGA Input 1
DVI Input 1
USB Type B or any desired USB Type 1
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 25 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0℃ ~ 50℃
Storage Temperature Below 10℃ ~ +60℃
Accessories Power Cord Length 1.5m
HDMI Cable Length 2m
USB-A to USB-B Cable Length 1.5m
Stereo Speaker Size with Connector 99*45*20mm
Stereo Speaker Length 1.5m
Package Size Device Dimensions 351 X 275X 51.7mm.
Net Weight 5 Kilogram
Package Size 41.2 X 34 X 11Centimeter
Gross Package Weight per Unit 5.5 Kilogram

15-Inch Embedded Monitor for Security Systems, Transportation Displays, Process Monitoring, and Public Information Panels

15-inch Industrial Control Panel All-in-One Machine: Clear Display, Optimized Driving Information Interaction

At the same time, the 15-inch industrial control panel all-in-one machine plays a core role in information interaction within smart vehicles. It is equipped with a high-resolution display that can clearly present navigation, vehicle status, entertainment information, etc., optimizing the flow of information between the driver and the vehicle, thereby enhancing the driving experience.

15-Inch Embedded Monitor for Security Systems, Transportation Displays, Process Monitoring, and Public Information Panels

The 15-inch embedded industrial control all-in-one machine and the 15-inch industrial control panel all-in-one machine, with their stable and reliable performance and clear display effect, are becoming indispensable components in the field of smart automobiles. They not only enhance the driving experience but also promote the advancement of the smart automobile industry. In the future, with the continuous progress of technology, they will play an even greater role in the field of smart automobiles.
