Specifications
Model Number :
ZXTLCD-RM190SM
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight case are option
Screen Size :
19 inch
Aspect Ratio :
16:9
Brightness :
250 cd/m²
Install Type :
Embedded, open-frame, wall-mounted, floor-standing
Suitable Environment :
Outdoor; Indoor
Applications :
Industrial control, medical equipment, automotive systems, various self-service terminals (new retail vending machines/financial terminals/information kiosks/parcel lockers/storage lockers/garbage recycling cabinets/charging stations, etc.), hospitality an
Brand Name :
ZXTLCD
Description

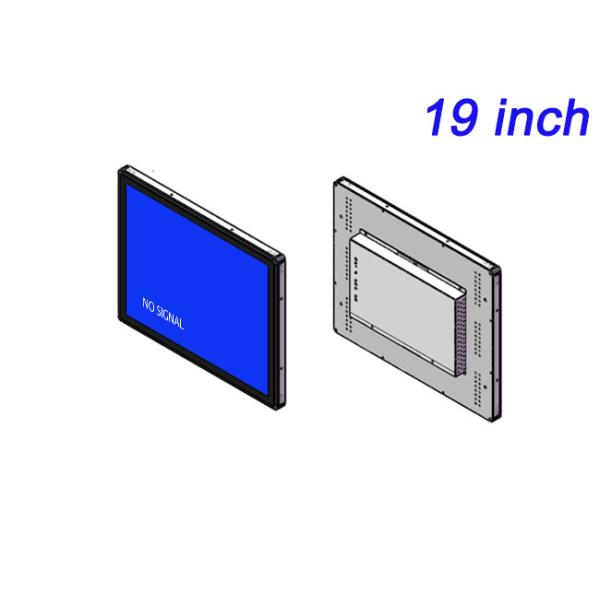

19-Inch Embedded Monitor for Security Panels, Industrial Equipment, Medical Displays, and Public Information Kiosks

Upgrading Educational Informatization, 19-inch Industrial Tablet Computer Supports Smart Classroom

With the in-depth development of educational informatization, schools' demand for stable and efficient teaching equipment is growing. The 19-inch industrial tablet computer, designed specifically for educational informatization systems, provides a comprehensive learning tool that is non-touch but fully functional.

19-Inch Embedded Monitor for Security Panels, Industrial Equipment, Medical Displays, and Public Information Kiosks

19-inch Industrial Tablet Computer: Stable and Reliable, Supports Long-term Teaching Use

In educational informatization systems, the stability and reliability of teaching equipment are crucial. The 19-inch industrial tablet computer, with its outstanding performance and durable design, can maintain stable operation even in high-intensity usage environments, ensuring smooth teaching activities and providing an efficient learning experience for both teachers and students.

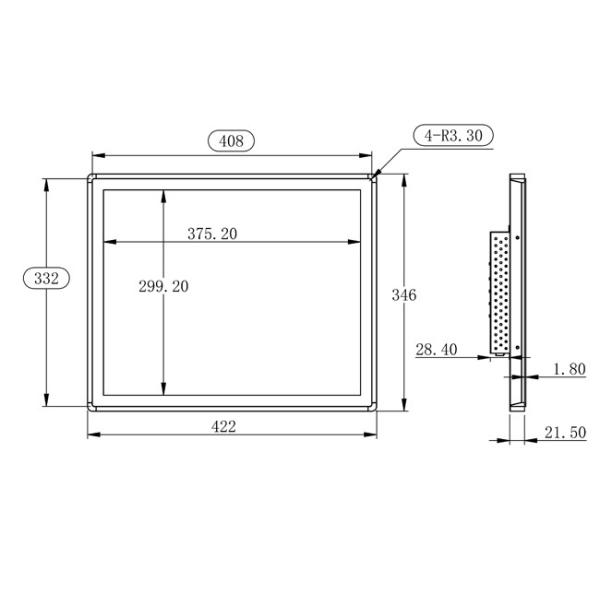

LCD Panel Parameters Screen Size 19 Inch
Display Area 375.2 mm.(Height) X 299.2(Width)mm.
Aspect Ratio 4 : 3
LCD Type a-Si TFT-LCD Monitor
Maximum Resolution 1280 X 1024
Display Color 16.7m , 73% NTSC
Brightness 250cd/
Contrast Ratio 1000 : 1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10)
Response Time 14ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 100Hertz
Audio Parameters
(External Speaker Option)
Audio system Stereo
Speaker size ≈ 99 x 45 x 20 mm
Impedance 8 Ohm
Power 2 x 5 Watt
Loudness > 80 Decibel
Interface 4-pin connector
Onboard Interface HDMI Input 1
VGA Input 1
DVI Input 1
USB Type B or any desired USB Type 1
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 30 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0 ~ 50
Storage Temperature Below 10 ~ +60
Accessories Power Cord Length 1.5m
HDMI Cable Length 2m
USB-A to USB-B Cable Length 1.5m
Stereo Speaker Size with Connector 99*45*20mm
Stereo Speaker Length 1.5m
Package Size Device Dimensions 422 X 346 X 51.7mm.
Net Weight 6.5 Kilogram
Package Size 47.4 X 40.6 X 10.1Centimeter
Gross Package Weight per Unit 7 Kilogram

19-Inch Embedded Monitor for Security Panels, Industrial Equipment, Medical Displays, and Public Information Kiosks

19-inch industrial computer tablet all-in-one: high definition display, optimized presentation of teaching content

At the same time, the 19-inch industrial computer tablet all-in-one plays a core role in the display of educational informatization content. It is equipped with a high-resolution display that can clearly present teaching materials such as courseware, videos, and images, optimizing the presentation of teaching content and enhancing learning outcomes.

19-Inch Embedded Monitor for Security Panels, Industrial Equipment, Medical Displays, and Public Information Kiosks

The 19-inch industrial tablet computer and the 19-inch industrial computer tablet all-in-one, with their stable and reliable performance and high-definition display effects, are becoming indispensable components of educational informatization systems. They not only enhance teaching efficiency but also promote the development of educational information technology. In the future, with the continuous advancement of technology, they will play an even greater role in the field of education.
