Specifications
Model Number :
ZXTLCD-RM150SMT
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight case are option
Screen Size :
15.6 inch
Aspect Ratio :
16：9
Brightness :
300 cd/m²
Install Type :
Embedded, open-frame, wall-mounted, floor-standing
Suitable Environment :
Outdoor; Indoor
Applications :
Industrial control, medical equipment, automotive systems, various self-service terminals (new retail vending machines/financial terminals/information kiosks/parcel lockers/storage lockers/garbage recycling cabinets/charging stations, etc.), hospitality an
Brand Name :
ZXTLCD
Description

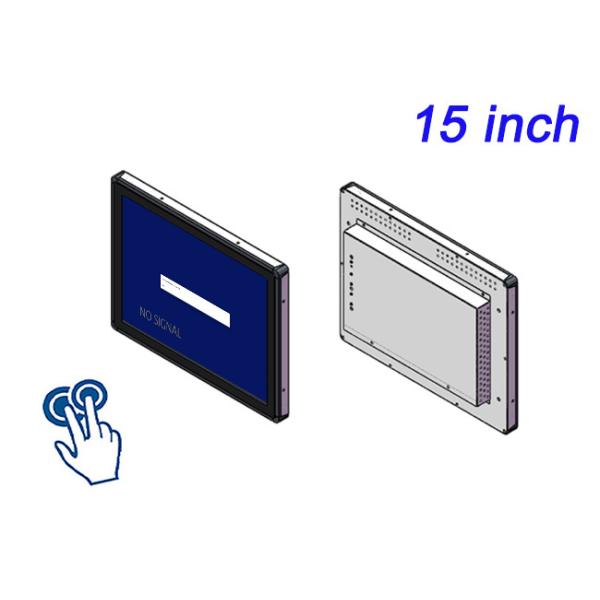

15-Inch Touch Embedded Screen for Security Panels, Warehouse Automation, Process Monitoring, and Vending Machines

15-inch embedded industrial control machine touchscreen tablet: An efficient assistant for CNC machine tool operation

In the modern manufacturing industry, CNC machine tools are key equipment for achieving precision machining. The 15-inch embedded industrial control machine touchscreen tablet has become an important tool in CNC machine tool operation due to its high-precision touch control and stable performance.

15-Inch Embedded Touch Screen for Security Panels, Warehouse Automation, Process Monitoring, and Vending Machines

15-inch embedded industrial control machine touchscreen tablet: Precise control and efficient management

During the operation of CNC machine tools, the 15-inch embedded industrial control machine touchscreen tablet provides operators with a convenient operating experience through its intuitive touch interface. Whether setting processing parameters, adjusting tool paths, or monitoring production status, all can be accomplished through simple touch operations, greatly improving operational efficiency. Its high-resolution display can clearly show complex processing drawings and technical parameters, ensuring operational accuracy. In addition, this tablet has good anti-interference capabilities, allowing it to operate stably in complex electromagnetic environments.

LCD Panel Parameters Screen Size 15 Inch
Display Area 304.2 mm.(Height) X 228(Width)mm.
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD Monitor
Maximum Resolution 1024 X 768
Display Color 262K/16.2M , 72% NTSC
Brightness 300cd/m²
Contrast Ratio 1500 : 1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10)
Response Time 15ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
PCAP Touchscreen Panel Parameters Touch Pattern Projected Capacitive Touchscreen Monitor
Touch Points 10 Points
Cover Glass Morse Glass Size 7 Physically reinforced to prevent explosion
Glass 3 mm. Optical mount to reduce parallax
Glass Transmission >85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
Response Speed < 6ms
Touch Accuracy More than 90% of the touch area ±2 mm
Touch Method Inch Stylus
Output Format Coordinate Output
Click Time Unlimited
Smallest Touch Size 5 mm
Long-lasting Durability Yes, Available
Touch Interface USB
Operating Temperature and Humidity Below 10℃ ~ +50℃, ≤ 85%RH
Storage Temperature and Humidity Less than 20℃ ~ +60℃, ≤ 90%RH
Audio Parameters
(External Speaker Option)		 Audio system Stereo
Speaker size ≈ 99 x 45 x 20 mm
Impedance 8 Ohm
Power 2 x 5 Watt
Loudness > 80 Decibel
Interface 4-pin connector
Onboard Interface HDMI Input 1
VGA Input 1
DVI Input 1
USB Type B or any desired USB Type 1
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 25 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0℃ ~ 50℃
Storage Temperature Below 10℃ ~ +60℃
Accessories Power Cord Length 1.5m
HDMI Cable Length 2m
USB-A to USB-B Cable Length 1.5m
Stereo Speaker Size with Connector 99*45*20mm
Stereo Speaker Length 1.5m
Package Size Device Dimensions 351 X 275X 51.7mm.
Net Weight 5 Kilogram
Package Size 41.2 X 34 X 11Centimeter
Gross Package Weight per Unit 5.5 Kilogram

15-inch Touch Industrial Tablet: Durable and Flexible Integration

The 15-inch touch industrial tablet not only offers an excellent touch experience but also features a rugged and durable design that is particularly suitable for industrial environments. This tablet features a fully enclosed structure with dustproof and waterproof functions, allowing it to operate stably for long periods under harsh working conditions. Its compact appearance and embedded installation method enable easy integration into the operation panel of CNC machine tools without taking up extra space. Additionally, this tablet supports multiple interfaces, allowing for convenient connections to other devices for real-time data transmission and remote monitoring.

15-Inch Embedded Touch Screen for Security Panels, Warehouse Automation, Process Monitoring, and Vending Machines15-Inch Embedded Touch Screen for Security Panels, Warehouse Automation, Process Monitoring, and Vending Machines

The 15-inch embedded industrial control machine touchscreen tablet, with its outstanding performance and reliable design, is an ideal choice for CNC machine tool operations. Whether improving machining precision or optimizing production processes, this tablet provides powerful support to help enterprises achieve intelligent production.
