Specifications
Model Number :
ZXTLCD-RM185SMT
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight case are option
Screen Size :
18.5 inch
Aspect Ratio :
16:9
Brightness :
250 cd/m²
Install Type :
Embedded, open-frame, wall-mounted, floor-standing
Suitable Environment :
Outdoor; Indoor
Applications :
Industrial control, medical equipment, automotive systems, various self-service terminals (new retail vending machines/financial terminals/information kiosks/parcel lockers/storage lockers/garbage recycling cabinets/charging stations, etc.), hospitality an
Brand Name :
ZXTLCD
Description

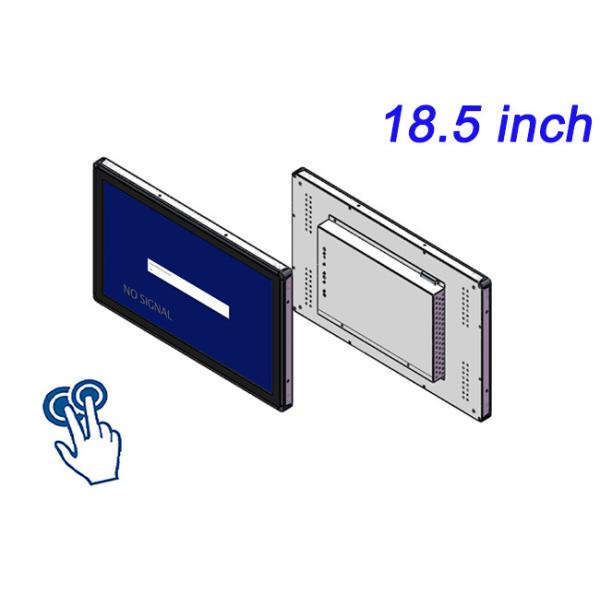

18.5-Inch Touch Embedded Monitor for Fitness Equipment, Information Kiosks, Wayfinding Displays, and Transportation Interfaces

Leading a New Era of Intelligent Charging Stations: The Power Displayed by the 18.5-inch Industrial Control Tablet

In the rapidly developing field of new energy vehicles, the efficient operation and intelligent management of charging stations have become crucial. The 18.5-inch capacitive industrial touchscreen tablet is gradually becoming the core device of the charging station management system, thanks to its large display area and excellent touch experience.

18.5-Inch Touch Embedded Monitor for Fitness Equipment, Information Kiosks, Wayfinding Displays, and Transportation Interfaces

LCD Panel Parameters Screen Size 18.5 Inch
Display Area 411.3 mm.(Height) X 231.4(Width)mm.
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD Monitor
Maximum Resolution 1920 X 1080
Display Color 16.7m , 72% NTSC
Brightness 250cd/
Contrast Ratio 1200 : 1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10)
Response Time 14ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
PCAP Touchscreen Panel Parameters Touch Pattern Projected Capacitive Touchscreen Monitor
Touch Points 10 Points
Cover Glass Physical toughened Morse magnitude 7 explosion-proof
Glass 3 mm. Optical mount to reduce parallax
Glass Transmission >85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
Response Speed < 6ms
Touch Accuracy More than 90% of the touch area ±2 mm
Touch Method Inch Stylus
Output Format Coordinate Output
Click Time Unlimited
Smallest Touch Size 5 mm
Long-lasting Durability Yes, Available
Touch Interface USB
Operating Temperature and Humidity Below 10 ~ +50, ≤ 85%RH
Storage Temperature and Humidity Less than 20 ~ +60, ≤ 90%RH
Audio Parameters
(External Speaker Option)
Audio system Stereo
Speaker size ≈ 99 x 45 x 20 mm
Impedance 8 Ohm
Power 2 x 5 Watt
Loudness > 80 Decibel
Interface 4-pin connector
Onboard Interface HDMI Input 1
VGA Input 1
DVI Input 1
USB Type B or any desired USB Type 1
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 30 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0 ~ 50
Storage Temperature Below 10 ~ +60
Accessories Power Cord Length 1.5m
HDMI Cable Length 2m
USB-A to USB-B Cable Length 1.5m
Stereo Speaker Size with Connector 99*45*20mm
Stereo Speaker Length 1.5m
Package Size Device Dimensions 460 X 280 X 51.7mm
Net Weight 6.5 Kilogram
Package Size 51 X 33.5 X 11Centimeter
Gross Package Weight per Unit 7 Kilogram

A New Choice for Charging Station Management with the 18.5-inch Capacitive Industrial Touchscreen Tablet

This tablet not only features a high-definition and delicate display that makes charging status and fault information clear at a glance, but also utilizes its stable capacitive touch technology to achieve fast and precise command input, enabling maintenance personnel to easily handle various complex operations and enhance the overall operational efficiency of the charging station.

18.5-Inch Touch Embedded Monitor for Fitness Equipment, Information Kiosks, Wayfinding Displays, and Transportation Interfaces

The 18.5-inch industrial control tablet computer display empowers the intelligent upgrade of charging stations.

The 18.5-inch industrial control tablet computer display, with its wide field of view and powerful industrial-grade performance, brings an unprecedented intelligent upgrade experience to charging stations. Whether in direct sunlight outdoors or under low light conditions at night, its high brightness and high contrast screen ensure clear information display. At the same time, the equipped professional-grade processor and large-capacity storage ensure smooth system operation, meeting the long-term and high-intensity usage needs of charging stations. By integrating various intelligent monitoring and management software, this tablet makes the operation and maintenance management of charging stations more efficient and convenient, providing strong support for the popularization and development of new energy vehicles.

18.5-Inch Touch Embedded Monitor for Fitness Equipment, Information Kiosks, Wayfinding Displays, and Transportation Interfaces

In the wave of the new energy vehicle era, the 18.5-inch industrial control tablet computer and the 18.5-inch capacitive industrial touchscreen are jointly promoting the intelligent process of charging station management systems. With outstanding performance and stable quality, they ensure the efficient and safe operation of charging stations, jointly creating a bright future for the intelligentization of charging facilities.
