Specifications
Model Number :
ZXTLCD-RM190SMT
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight case are option
Screen Size :
19 inch
Aspect Ratio :
16:9
Brightness :
250 cd/m²
Install Type :
Embedded, open-frame, wall-mounted, floor-standing
Suitable Environment :
Outdoor; Indoor
Applications :
Industrial control, medical equipment, automotive systems, various self-service terminals (new retail vending machines/financial terminals/information kiosks/parcel lockers/storage lockers/garbage recycling cabinets/charging stations, etc.), hospitality an
Brand Name :
ZXTLCD
Description

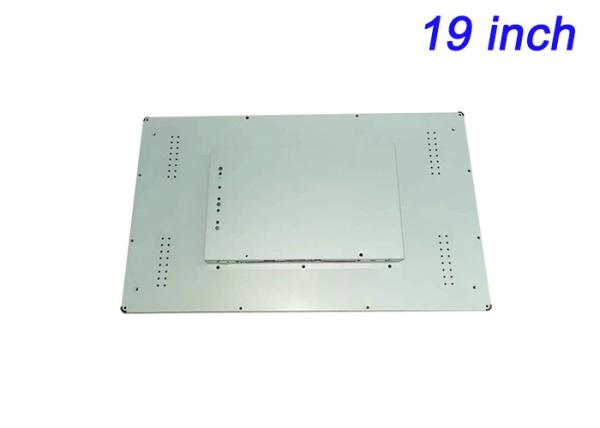

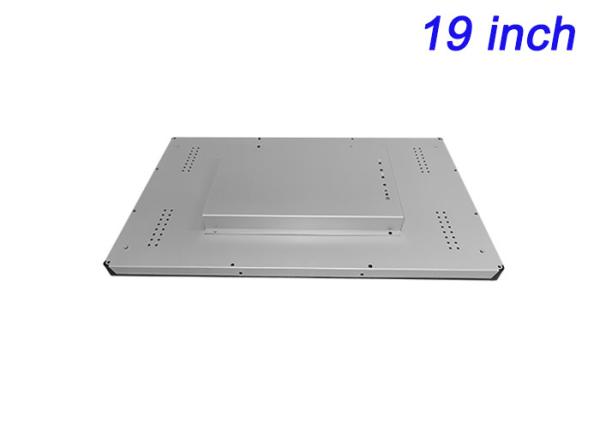

19-Inch Touch Embedded Monitor for Surveillance Systems, Logistics Operations, Airport Displays, and Control Rooms

19-inch integrated workstation embedded: An intelligent terminal for assembly line manufacturing management.

In the modern manufacturing industry, efficient assembly line management is crucial for improving production efficiency. The 19-inch integrated workstation embedded, with its integrated design and high performance, has become an important component of assembly line manufacturing management equipment.

19-Inch Touch Embedded Monitor for Surveillance Systems, Logistics Operations, Airport Displays, and Control Rooms

LCD Panel Parameters Screen Size 19 Inch
Display Area 375.2 mm.(Height) X 299.2(Width)mm.
Aspect Ratio 4 : 3
LCD Type a-Si TFT-LCD Monitor
Maximum Resolution 1280 X 1024
Display Color 16.7m , 73% NTSC
Brightness 250cd/
Contrast Ratio 1000 : 1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10)
Response Time 14ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
PCAP Touchscreen Panel Parameters Touch Pattern Projected Capacitive Touchscreen Monitor
Touch Points 10 Points
Cover Glass Physical toughened Morse magnitude 7 explosion-proof
Glass 3 mm. Optical mount to reduce parallax
Glass Transmission >85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
Response Speed < 6ms
Touch Accuracy More than 90% of the touch area ±2 mm
Touch Method Inch Stylus
Output Format Coordinate Output
Click Time Unlimited
Smallest Touch Size 5 mm
Long-lasting Durability Yes, Available
Touch Interface USB
Operating Temperature and Humidity Below 10 ~ +50, ≤ 85%RH
Storage Temperature and Humidity Less than 20 ~ +60, ≤ 90%RH
Audio Parameters
(External Speaker Option)
Audio system Stereo
Speaker size ≈ 99 x 45 x 20 mm
Impedance 8 Ohm
Power 2 x 5 Watt
Loudness > 80 Decibel
Interface 4-pin connector
Onboard Interface HDMI Input 1
VGA Input 1
DVI Input 1
USB Type B or any desired USB Type 1
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 30 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0 ~ 50
Storage Temperature Below 10 ~ +60
Accessories Power Cord Length 1.5m
HDMI Cable Length 2m
USB-A to USB-B Cable Length 1.5m
Stereo Speaker Size with Connector 99*45*20mm
Stereo Speaker Length 1.5m
Package Size Device Dimensions 422 X 346 X 51.7mm.
Net Weight 6.5 Kilogram
Package Size 47.4 X 40.6 X 10.1Centimeter
Gross Package Weight per Unit 7 Kilogram

19-inch integrated workstation embedded: Precise monitoring and efficient operation

In the control of assembly line manufacturing, the 19-inch integrated workstation embedded, with its high-resolution display and intuitive user interface, provides operators with clear data presentation and convenient control methods. Whether it's production progress, equipment status, or material tracking, this integrated machine can present key information in real-time, helping operators respond quickly and improve production efficiency. Its compact design and embedded installation method allow the device to be seamlessly integrated into the production line, saving space while ensuring the user interface is clearly visible.

19-Inch Touch Embedded Monitor for Surveillance Systems, Logistics Operations, Airport Displays, and Control Rooms

19-inch All-in-One Computer: Stable Operation and Intelligent Management

The 19-inch all-in-one computer not only features excellent display performance, but its robust and durable design is also suitable for long-term stable operation in industrial environments. This all-in-one machine adopts a fully enclosed structure, with dustproof and waterproof functions, effectively resisting dust and moisture in the workshop, thereby extending the equipment's lifespan. Its built-in high-performance processor and large storage capacity support multitasking and big data processing, ensuring smooth system operation. In addition, the intelligent management platform based on an embedded system supports remote monitoring and maintenance, facilitating technicians in system updates and troubleshooting, thereby enhancing management efficiency.

19-Inch Touch Embedded Monitor for Surveillance Systems, Logistics Operations, Airport Displays, and Control Rooms

The 19-inch integrated workstation, with its outstanding performance and reliable design, has become the ideal choice for managing assembly line manufacturing. Whether it is to improve production efficiency or optimize equipment management, this all-in-one machine provides strong support, helping enterprises achieve intelligent manufacturing.
