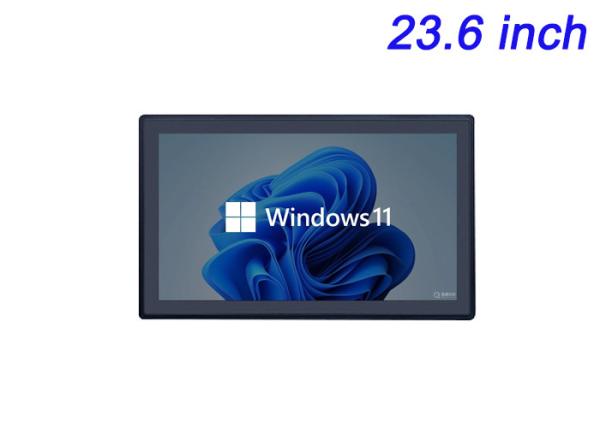

In hotel conference halls, information display screens are not only important tools for conveying meeting arrangements and event information but also key devices for enhancing the professional image of the venue. The 23.6-inch embedded industrial all-in-one screen, with its outstanding display effect and sturdy, durable design, has become the ideal choice for information display in hotel conference halls, providing participants with a clear and professional information display experience.
In hotel conference halls, information display screens need to have high clarity and stability to ensure that attendees can clearly read the conference agenda, speaker introductions, and other important information. The 23.6-inch embedded industrial all-in-one screen, with its high resolution and wide viewing angle characteristics, can present clear and sharp images from any angle. This display adopts an embedded installation design, which not only saves space but also perfectly integrates with the conference hall environment, enhancing the overall aesthetic. Whether playing conference agendas, welcome speeches, or emergency notifications, it can provide excellent visual effects.
LCD Panel Parameters | Screen Size | 23.6 Inch | ||
Display Area | 521.28 mm.(Height) X 293.22(Width)mm. | |||
Aspect Ratio | 16 : 9 | |||
LCD Type | a-Si TFT-LCD Monitor | |||
Maximum Resolution | 1920 X 1080 | |||
Display Color | 16.7m , 72% NTSC | |||
Brightness | 250cd/m² | |||
Contrast Ratio | 1000 : 1 | |||
Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | |||
Response Time | 14ms | |||
LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
Field Frequency | 60Hertz | |||
Audio parameters | Audio system | Stereo | ||
Speaker size | ≈ 99 x 45 x 20 mm | |||
Impedance | 8 Ohm | |||
Power | 2 x 5 Watt | |||
Loudness | > 80 Decibel | |||
Interface | 4-pin connector | |||
Internal computer configuration (Choose one of two) | CPU | Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz | Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz | |
Graphics Card | Integrated Graphics Card Intel® HD 4600 | Integrated Graphics Card Intel® HD 530 | ||
RAM | 4GB | 8GB | ||
Storage Memory Capacity | 128GB | 256GB | ||
OS | Win10 or win11 Optional | Win10 or win11 Optional | ||
Wi-Fi Built-in | Speed 150Mbps 802.11n wifi Integrated | Speed 150Mbps 802.11n wifi Integrated | ||
Media Format | Video Format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. | ||
Audio Format | MP3, WMA | |||
Photo Format | BMP, JPEG, PNG, GIF etc. | |||
Onboard Interface | Network port | RJ45 X 1, 10M/100M Adjustable Ethernet | ||
HDMI | 1 | |||
USB | 4 | |||
Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
Maximum Power Loss | ≤ 45 Watt | |||
Standby Mode Power Loss | < 1 Watt | |||
Features | Operating Temperature | 0℃ ~ 50℃ | ||
Storage Temperature | Below 10℃ ~ +60℃ | |||
Package Size | Device Dimensions | 569 X 341 X 51.7mm. | ||
Net Weight | 8 Kilogram | |||
Package Size | 62.7 X 40.4 X 10.5Centimeter | |||
Gross Package Weight per Unit | 9 Kilogram
|
Information Management and Maintenance - 23.6-inch Industrial Grade Display
In addition to providing high-quality display effects, the 23.6-inch industrial grade display also boasts powerful data processing capabilities and reliability. This display supports multiple communication interfaces, allowing for easy connection to the hotel's information management system for real-time content updates and remote control. Moreover, its rugged and durable design can withstand various environmental challenges during meetings, such as temperature changes, humidity, and dust, ensuring long-term stable operation, reducing maintenance costs and failure rates.
The 23.6-inch embedded industrial all-in-one machine screen, with its excellent display effect and stable performance, has become an important tool for information display in hotel conference halls. Whether enhancing the effectiveness of information dissemination or optimizing conference management, this display has demonstrated its significant value in hotel conference halls.
