Specifications
Brand Name :
ZXTLCD
Model Number :
ZXTLCD-E185BACT
Certification :
CE/Rohs/FCC
Place of Origin :
Guangdong, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight cases are optional
Screen Size :
18.5 inch
Aspect Ratio :
16:9
Brightness :
250 cd/m²
Install Type :
Embedded, open-frame, wall-mounted, floor-standing
Suitable Environment :
Outdoor; Indoor
Applications :
Industrial control, medical equipment, automotive systems, various self-service terminals (new retail vending machines/financial terminals/information kiosks/parcel lockers/storage lockers/garbage recycling cabinets/charging stations, etc.), hospitality an
Android Versions :
10; 13
RAM+ROM :
2+32GB; 4+32GB
Description

18.5-Inch Android Embedded Touch Device for Traffic Management, Warehouse Dashboards, Smart City Displays, and Logistics Systems

The 18.5-inch Android Touchscreen Device is a versatile solution designed to seamlessly integrate into a variety of operational environments, ranging from traffic management and warehouse dashboards to smart city displays and logistics systems. Equipped with an impressive 1920 x 1080 resolution, it offers clear, crisp visuals that enhance the accuracy of data visualization. The durable projected capacitive touchscreen supports up to 10 touch points, ensuring an intuitive, responsive experience. Whether used in public transportation hubs for managing traffic flow or as part of a sophisticated warehouse management system, its user-friendly interface allows for real-time control and efficient monitoring of key processes. The robust design, including explosion-proof glass and a wide operating temperature range, makes this device ideal for environments that demand high reliability and durability.

LCD Panel Parameters Screen Size 18.5 Inch
Display Area 409.8 mm.(Height) X 230.4(Width)mm.
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD Monitor
Maximum Resolution 1920 X 1080
Display Color 16.7m , 72% NTSC
Brightness 250cd/
Contrast Ratio 1200 : 1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10)
Response Time 14ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
PCAP Touchscreen Panel Parameters Touch Pattern Projected Capacitive Touchscreen Monitor
Touch Points 10 Points
Cover Glass Physical toughened Morse magnitude 7 explosion-proof
Glass 3 mm. Optical mount to reduce parallax
Glass Transmission >85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
Response Speed < 6ms
Touch Accuracy More than 90% of the touch area ±2 mm
Touch Method Inch Stylus
Output Format Coordinate Output
Click Time Unlimited
Smallest Touch Size 5 mm
Long-lasting Durability Yes, Available
Touch Interface USB
Operating Temperature and Humidity Below 10 ~ +50, ≤ 85%RH
Storage Temperature and Humidity Less than 20 ~ +60, ≤ 90%RH
Audio parameters Audio system Stereo
Speaker size ≈ 99 x 45 x 20 mm
Impedance 8 Ohm
Power 2 x 5 Watt
Loudness > 80 Decibel
Interface 4-pin connector
Built-in Android PCB Configuration (Choose one of two) CPU Quad-Core RK3288, 1.8GHz Quad-Core RK3568,2.0GHz
GPU Mali-T764 Mali-G52
RAM 2GB 4GB
ROM 32GB 32GB
Android System Android 10.0 Android 11
Ethernet 1 x RJ45, 1,000 Mbps Ethernet 1,000 Mbps
Wireless Internet 2.4Gigahertz 2.4Gigahertz/5Gigahertz, Wi-Fi 6
Bluetooth 4.2 5
Interface USB2.0 x 2 OTG USB2.0 x 1
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 30 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0 ~ 50
Storage Temperature Below 10 ~ +60

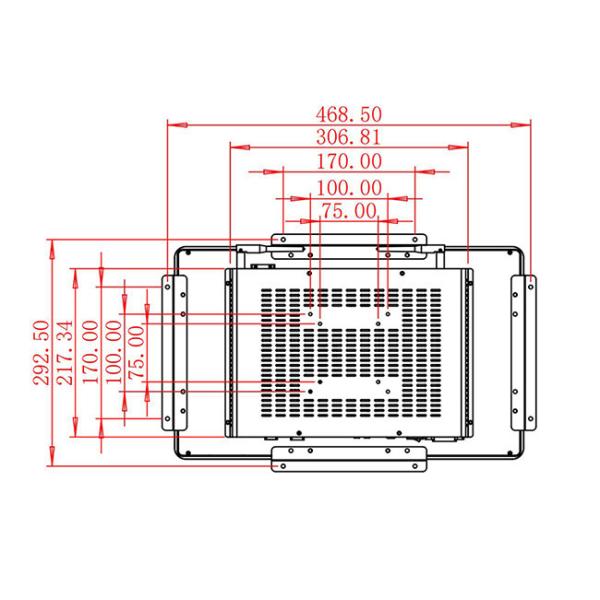

Package Size Device Dimensions 450.4 X 274.4 X 49mm
Net Weight 6.5 Kilogram
Package Size 53 X 35 X 15Centimeter
Gross Package Weight per Unit 7 Kilogram

In the realm of smart city management, this 18.5-inch device serves as a dynamic information hub. It can be used for digital signage in public spaces, displaying traffic information, weather updates, and emergency alerts in real-time. Its high brightness (250 cd/m²) ensures visibility even in bright outdoor environments, while its wide viewing angles ensure that messages are clearly seen from various perspectives. The integration of Bluetooth and Wi-Fi 6 further enhances its connectivity, allowing for seamless communication with other devices in the network, such as sensors, cameras, and security systems. These capabilities make it an excellent choice for interactive kiosks and public service stations, providing citizens with access to vital information at their fingertips.

18.5-Inch Android Embedded Touch Device for Traffic Management, Warehouse Dashboards, Smart City Displays, and Logistics Systems

18.5-Inch Android Embedded Touch Device for Traffic Management, Warehouse Dashboards, Smart City Displays, and Logistics Systems18.5-Inch Android Embedded Touch Device for Traffic Management, Warehouse Dashboards, Smart City Displays, and Logistics Systems18.5-Inch Android Embedded Touch Device for Traffic Management, Warehouse Dashboards, Smart City Displays, and Logistics Systems

18.5-Inch Android Embedded Touch Device for Traffic Management, Warehouse Dashboards, Smart City Displays, and Logistics Systems

Warehouse and logistics systems benefit greatly from the advanced capabilities of this device, which can be used as a central control panel for monitoring inventory, tracking shipments, and managing warehouse operations. With its powerful quad-core processor and ample memory (up to 4GB RAM and 32GB ROM), it can handle complex data processing and multitasking without lag. The touchscreen interface allows warehouse managers to interact with data in real time, simplifying the management of logistics operations. The device's ability to operate in challenging environmental conditions, such as high humidity or extreme temperatures, makes it especially suitable for large-scale operations that require constant uptime and accuracy. Whether it's displayed on a logistics dashboard or integrated into a vehicle fleet management system, this device enhances operational efficiency and provides users with critical insights in a clear, accessible format.
