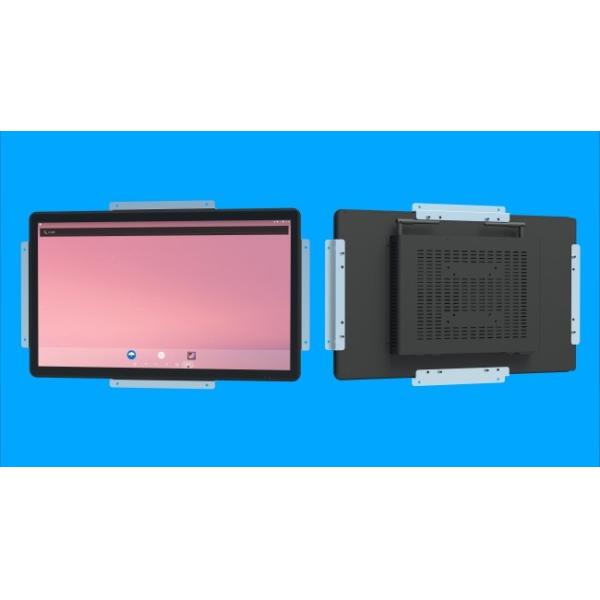

The 21.5-inch Android interactive platform offers a dynamic solution for industrial equipment control, where precise and efficient monitoring is crucial. Featuring a high-definition resolution of 1920 x 1080, this screen is designed to display critical operational data with clarity and ease. Its capacitive touchscreen supports up to 10 touch points, allowing operators to interact directly with machinery controls, adjust parameters, and access real-time analytics. With its robust build, including explosion-proof glass, it can withstand harsh environments such as factory floors and warehouses. The integration of Android OS offers flexibility in customizing applications for different industrial needs, making it a versatile addition to any equipment management system.
LCD Panel Parameters | Screen Size | 21.5 Inch | ||
Display Area | 476.5 mm (Height) X 268 mm (Width) | |||
Aspect Ratio | 16 : 9 | |||
LCD Type | TFT-LCD Monitor | |||
Maximum Resolution | 1920 X 1080 | |||
Display Color | 16.7m | |||
Brightness | 250cd/m² | |||
Contrast Ratio | 3000 : 1 | |||
Viewing Angle (Up/Down/Left/Right) | 89/89/89/89 (Type)(CR≥10) | |||
Response Time | 6.5ms | |||
LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
Field Frequency | 60Hertz | |||
PCAP Touchscreen Panel Parameters | Touch Pattern | Capacitive Touchscreen Capacitive Projected | ||
Touch Points | 10 Points | |||
Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | |||
Glass 3 mm. Optical mount to reduce parallax | ||||
Glass Transmission | >85% (Higher light transmission depends on glass coating technology For example AR/AG) >85% | |||
Response Speed | < 6ms | |||
Touch Accuracy | More than 90% of the touch area ±2 mm | |||
Touch Method | Inch Stylus | |||
Output Format | Coordinate Output | |||
Click Time | Unlimited | |||
Smallest Touch Size | 5 mm | |||
Long-lasting Durability | Yes, Available | |||
Touch Interface | USB | |||
Operating Temperature and Humidity | Below 10℃ ~ +50℃, ≤ 85%RH | |||
Storage Temperature and Humidity | Less than 20℃ ~ +60℃, ≤ 90%RH | |||
Audio parameters | Audio system | Stereo | ||
Speaker size | ≈ 99 x 45 x 20 mm | |||
Impedance | 8 Ohm | |||
Power | 2 x 5 Watt | |||
Loudness | > 80 Decibel | |||
Interface | 4-pin connector | |||
Configuration PCB Android Built-in (Choose one of two) |
CPU | Quad-Core RK3288, 1.8GHz | Quad-Core RK3568,2.0GHz | |
GPU | Mali-T764 | Mali-G52 | ||
RAM | 2GB | 4GB | ||
ROM | 32GB | 32GB | ||
Android System | Android 10.0 | Android 11.0 | ||
Ethernet | 1 x RJ45, Ethernet 1,000 Mbps | 1 x RJ45, Ethernet 1,000 Mbps | ||
Wireless Internet | 2.4Gigahertz | 2.4Gigahertz/5Gigahertz, Wi-Fi 6 | ||
Bluetooth | 4.2 | 5 | ||
Interface | USB2.0 x 2 | USB2.0 x 2 | ||
HDMI IN x 1 | ||||
Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
Maximum Power Loss | ≤ 45 Watt | |||
Standby Mode Power Loss | < 1 Watt | |||
Features | Operating Temperature | 0℃ ~ 50℃ | ||
Storage Temperature | Below 10℃ ~ +60℃ | |||

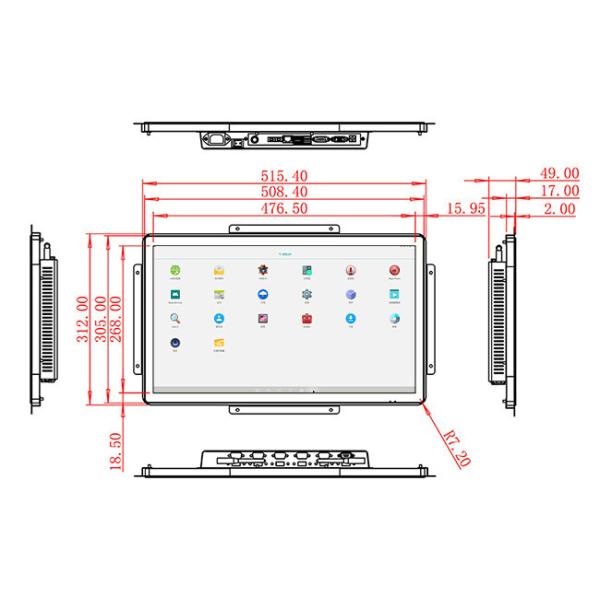

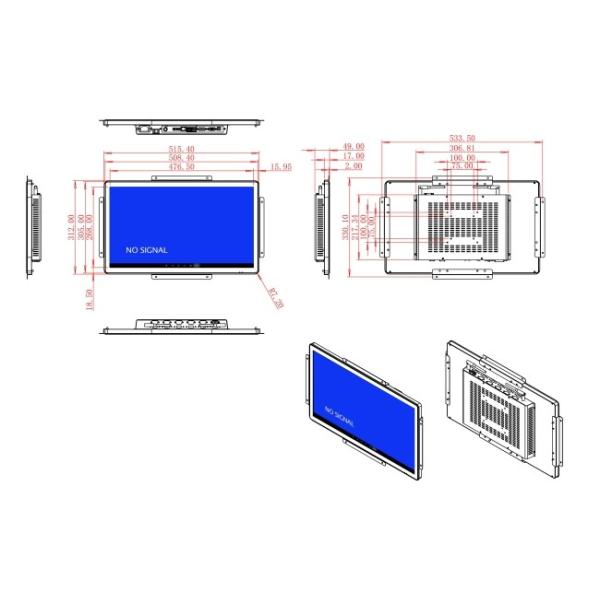

Package Size | Device Dimensions | 515.4 X 312 X 49 mm. | ||
Net Weight | 7 Kilogram | |||
Package Size | 60 X 40 X 15Centimeter | |||
Gross Package Weight per Unit | 7.5 Kilogram |
In the exhibition display sector, the 21.5-inch interactive platform serves as an engaging centerpiece for trade shows and museums. With its vibrant 16.7 million color display and wide viewing angles, it captures visitors' attention, presenting multimedia content such as videos, images, and interactive presentations. Its durable, touch-sensitive surface enhances user interaction, allowing attendees to explore exhibits in a hands-on manner. The Android-based interface enables easy content updates and the ability to host a variety of interactive applications tailored to each exhibit. Whether used for digital signage, wayfinding kiosks, or interactive learning stations, this platform is a reliable tool for creating a captivating, immersive experience in public spaces.
This 21.5-inch interactive platform is also a perfect solution for corporate dashboards, providing businesses with a centralized hub for monitoring key metrics and real-time performance. Whether installed in a command center, meeting room, or shared workspace, it delivers crucial data in an easy-to-read, highly interactive format. The touchscreen functionality enables quick adjustments and in-depth exploration of charts, graphs, and reports, helping teams make informed decisions at a glance. Additionally, its ability to connect to various networks via Wi-Fi and Ethernet ensures seamless integration with company systems. From finance departments to operational teams, the versatility and clarity of this platform help organizations keep a pulse on their performance and operations in real-time.
