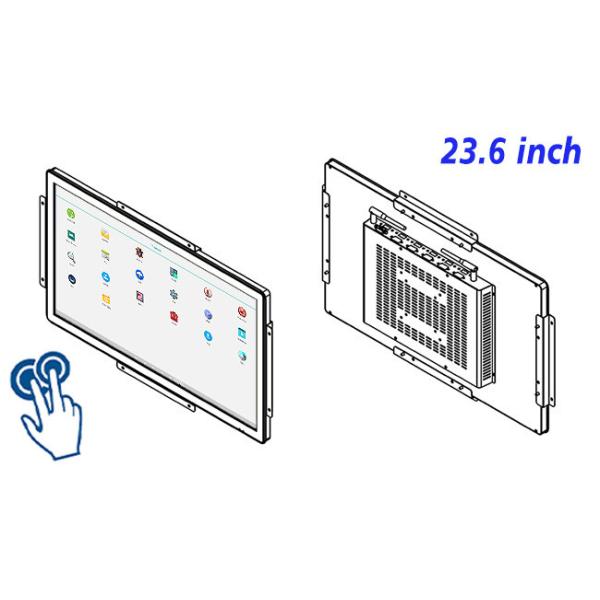

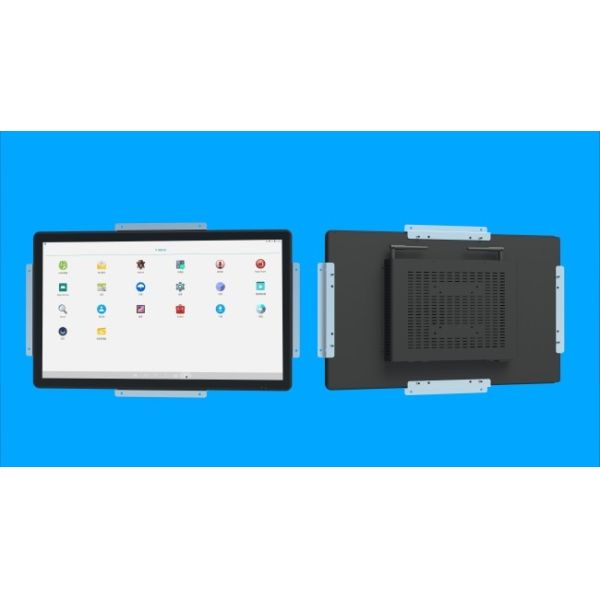

The 23.6-inch Android control terminal is an ideal solution for traffic monitoring systems, enabling real-time data visualization and control in busy traffic hubs. Its 1920 x 1080 resolution ensures that critical information such as traffic flow, congestion, and vehicle speeds is displayed with clear, sharp images. The interactive touchscreen allows operators to quickly respond to traffic changes by adjusting signals or monitoring infrastructure health. With its robust, explosion-proof glass and durable construction, it’s perfect for use in high-traffic areas or outdoor environments where precision and reliability are paramount. This system seamlessly integrates with traffic management software, offering a centralized control panel for efficient decision-making.
LCD Panel Parameters | Screen Size | 23.6 Inch | ||
Display Area | 522 mm.(Height) X 294(Width)mm. | |||
Aspect Ratio | 16 : 9 | |||
LCD Type | a-Si TFT-LCD Monitor | |||
Maximum Resolution | 1920 X 1080 | |||
Display Color | 16.7m , 72% NTSC | |||
Brightness | 250cd/m² | |||
Contrast Ratio | 1000 : 1 | |||
Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | |||
Response Time | 14ms | |||
LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
Field Frequency | 60Hertz | |||
PCAP Touchscreen Panel Parameters | Touch Pattern | Projected Capacitive Touchscreen Monitor | ||
Touch Points | 10 Points | |||
Cover Glass | Morse Glass Size 7 Physically reinforced to prevent explosion | |||
Glass 3 mm. Optical mount to reduce parallax | ||||
Glass Transmission | >85% (Higher light transmission depends on glass coating technology For example AR/AG) >85% | |||
Response Speed | < 6ms | |||
Touch Accuracy | More than 90% of the touch area ±2 mm | |||
Touch Method | Inch Stylus | |||
Output Format | Coordinate Output | |||
Click Time | Unlimited | |||
Smallest Touch Size | 5 mm | |||
Long-lasting Durability | Yes, Available | |||
Touch Interface | USB | |||
Operating Temperature and Humidity | Below 10℃ ~ +50℃, ≤ 85%RH | |||
Storage Temperature and Humidity | Less than 20℃ ~ +60℃, ≤ 90%RH | |||
Audio parameters | Audio system | Stereo | ||
Speaker size | ≈ 99 x 45 x 20 mm | |||
Impedance | 8 Ohm | |||
Power | 2 x 5 Watt | |||
Loudness | > 80 Decibel | |||
Interface | 4-pin connector | |||
Configuration PCB Android Built-in (Choose one of two) |
CPU | Quad-Core RK3288, 1.8GHz | Quad-Core RK3568,2.0GHz | |
GPU | Mali-T764 | Mali-G52 | ||
RAM | 2GB | 4GB | ||
ROM | 32GB | 32GB | ||
Android System | Android 10.0 | Android 11.0 | ||
Ethernet | 1 x RJ45, Ethernet 1,000 Mbps | 1 x RJ45, Ethernet 1,000 Mbps | ||
Wireless Internet | 2.4Gigahertz | 2.4Gigahertz/5Gigahertz, Wi-Fi 6 | ||
Bluetooth | 4.2 | 5 | ||
Interface | USB2.0 x 2 | USB2.0 x 2 | ||
HDMI IN x 1 | ||||
Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
Maximum Power Loss | ≤ 45 Watt | |||
Standby Mode Power Loss | < 1 Watt | |||
Features | Operating Temperature | 0℃ ~ 50℃ | ||
Storage Temperature | Below 10℃ ~ +60℃ | |||

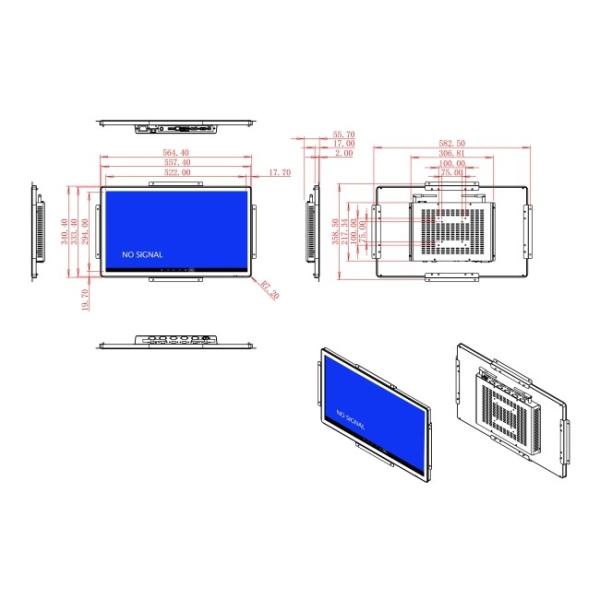

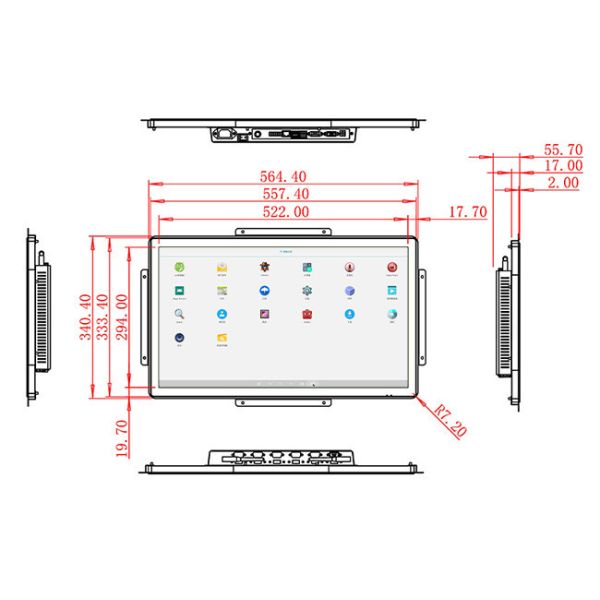

Package Size | Device Dimensions | 564.4 X 340.4 X 55.7mm. | ||
Net Weight | 8 Kilogram | |||
Package Size | 54 X 42 X 15Centimeter | |||
Gross Package Weight per Unit | 9 Kilogram |
Facility control panels benefit greatly from the inclusion of the 23.6-inch Android terminal, offering enhanced management of various systems in buildings, such as HVAC, lighting, and energy consumption monitoring. This large touchscreen interface allows facility managers to easily access and control essential systems from a central location. Whether used in office buildings, malls, or industrial complexes, the terminal can display real-time data on energy usage, system performance, and maintenance schedules, streamlining the operational workflow. Its touch interface provides instant feedback, enabling precise adjustments on the fly, while its wide viewing angles ensure that critical information can be accessed from various positions in the room.
The 23.6-inch terminal is also a game-changer in energy systems and security monitoring applications, providing a dynamic, real-time platform for both. In energy systems, operators can monitor power consumption, identify inefficiencies, and even control the distribution of energy through a centralized interface. When used in security monitoring, the screen offers a high-resolution display for surveillance feeds, allowing security teams to observe multiple camera angles and respond to potential threats quickly. Its multi-touch support ensures that various security tasks—like zooming in on camera feeds or toggling between different views—can be accomplished seamlessly. This terminal’s versatility and rugged build make it an excellent tool for mission-critical applications in high-stakes environments.
