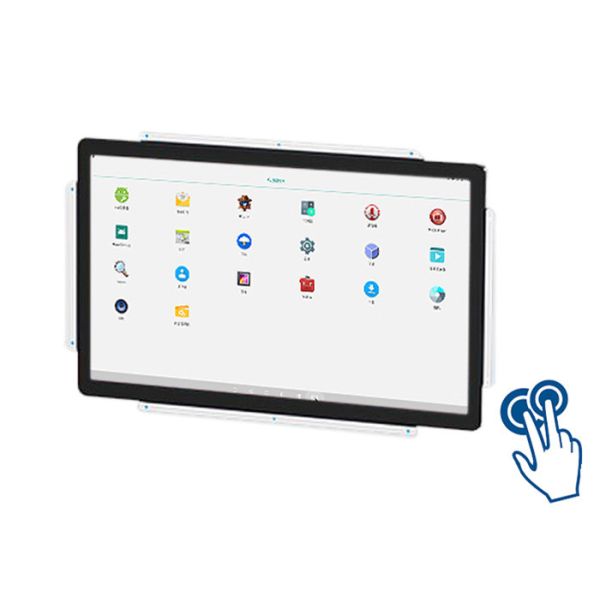

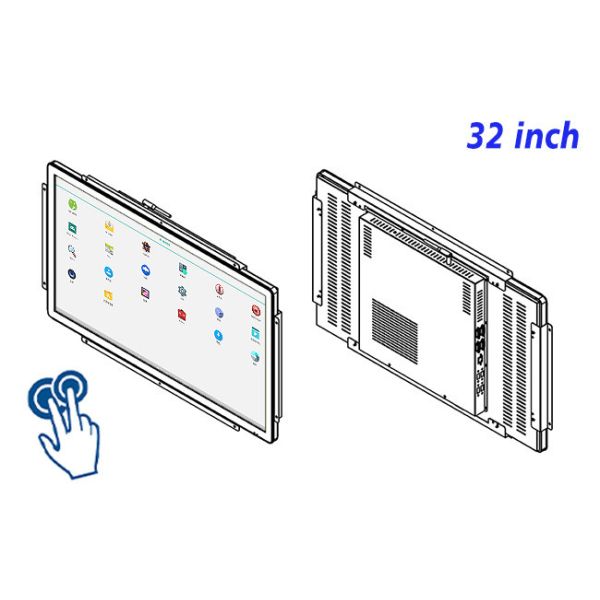

The 32-inch Android touch vision platform is a powerful solution for factory dashboards, offering real-time data monitoring and control across industrial environments. With its vibrant 1920 x 1080 resolution, the platform provides clear visibility of key metrics such as production output, machine performance, and system status. The large touch interface allows operators to quickly interact with equipment, adjust settings, and respond to operational challenges. Its rugged construction, with a reinforced glass cover, ensures durability in the harsh conditions typical of factory floors, while its high brightness ensures readability even in environments with high ambient light. This platform is integral to modernizing factory operations, enhancing productivity, and improving safety with its intuitive and responsive touch controls.
LCD Panel Parameters | Screen Size | 32 Inch | ||
Display Area | 698 mm.(Height) X 391.8(Width)mm. | |||
Aspect Ratio | 16 : 9 | |||
LCD Type | a-Si TFT-LCD Monitor | |||
Maximum Resolution | 1920 X 1080 | |||
Display Color | 8 Bit + FRC Color 1.07G | |||
Brightness | 400cd/m² | |||
Contrast Ratio | 1200 : 1 | |||
Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | |||
Response Time | 8ms | |||
LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
Field Frequency | 60Hertz | |||
PCAP Touchscreen Panel Parameters | Touch Pattern | Projected Capacitive Touchscreen Monitor | ||
Touch Points | 10 Points | |||
Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | |||
Glass 3 mm. Optical mount to reduce parallax | ||||
Glass Transmission | >85% (Higher light transmission depends on glass coating technology For example AR/AG) >85% | |||
Response Speed | < 6ms | |||
Touch Accuracy | More than 90% of the touch area ±2 mm | |||
Touch Method | Inch Stylus | |||
Output Format | Coordinate Output | |||
Click Time | Unlimited | |||
Smallest Touch Size | 5 mm | |||
Long-lasting Durability | Yes, Available | |||
Touch Interface | USB | |||
Operating Temperature and Humidity | Below 10℃ ~ +50℃, ≤ 85%RH | |||
Storage Temperature and Humidity | Less than 20℃ ~ +60℃, ≤ 90%RH | |||
Audio parameters | Audio system | Stereo | ||
Speaker size | ≈ 99 x 45 x 20 mm | |||
Impedance | 8 Ohm | |||
Power | 2 x 5 Watt | |||
Loudness | > 80 Decibel | |||
Interface | 4-pin connector | |||
Configuration PCB Android Built-in (Choose one of two) |
CPU | Quad-Core RK3288, 1.8GHz | Quad-Core RK3568,2.0GHz | |
GPU | Mali-T764 | Mali-G52 | ||
RAM | 2GB | 4GB | ||
ROM | 32GB | 32GB | ||
Android System | Android 10.0 | Android 11.0 | ||
Ethernet | 1 x RJ45, Ethernet 1,000 Mbps | 1 x RJ45, Ethernet 1,000 Mbps | ||
Wireless Internet | 2.4Gigahertz | 2.4Gigahertz/5Gigahertz, Wi-Fi 6 | ||
Bluetooth | 4.2 | 5 | ||
Interface | USB2.0 x 2 | USB2.0 x 2 | ||
HDMI IN x 1 | ||||
Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
Maximum Power Loss | ≤ 60 Watt | |||
Standby Mode Power Loss | < 1 Watt | |||
Features | Operating Temperature | 0℃ ~ 50℃ | ||
Storage Temperature | Below 10℃ ~ +60℃ | |||
Package Size | Device Dimensions | 749 X 446 X 58 mm. | ||
Net Weight | 13 Kilogram | |||
Package Size | 83 X 53 X 15Centimeter | |||
Gross Package Weight per Unit | 15 Kilogram |
In smart city infrastructure, this 32-inch platform becomes a central hub for managing and monitoring urban systems. Whether used for traffic control, environmental monitoring, or public safety systems, the large touchscreen enables seamless interaction with various city management tools. Operators can access real-time traffic data, environmental sensor readings, and CCTV footage, all displayed in high clarity. Its advanced touch response allows users to switch between applications, zoom in on critical data points, or adjust system parameters with ease. In addition, the platform supports wireless connectivity, ensuring remote monitoring and adjustments are possible, which is essential for the fast-paced demands of modern cities. This flexibility and scalability make it an essential tool for any urban management system aiming to stay ahead in an increasingly connected world.
Retail interfaces benefit greatly from the 32-inch touchscreen platform by enhancing customer engagement and providing intuitive product displays. In retail spaces, this platform can be used for interactive kiosks, digital signage, or self-checkout systems, offering customers a seamless, engaging shopping experience. With its high resolution and vibrant color display, it ensures that product information, promotions, and advertisements are shown in crisp detail, capturing customer attention. The interactive touch interface allows for easy browsing of product catalogs, making it a perfect fit for modern retail environments that aim to offer both convenience and a high-tech shopping experience. Retailers can also use the platform to manage inventory or display dynamic pricing in real-time, making it a versatile tool that drives both customer satisfaction and operational efficiency.
