The 15-inch Android control console offers a versatile solution for security panels in commercial and industrial environments. With its high-definition resolution of 1024x768 and 300cd/m² brightness, this unit ensures that security personnel can effectively monitor surveillance feeds, track alarm systems, and manage access control systems. Its 10-point capacitive touchscreen enables quick, responsive interactions, making it easy for users to adjust settings, view camera feeds, or perform system diagnostics. The projected capacitive touchscreen is reinforced with Morse glass and boasts excellent touch accuracy and durability, which makes it suitable for continuous use in high-demand settings. Moreover, the Android 13.0 system facilitates seamless integration with modern security software, allowing for real-time alerts and secure communication across networks.
LCD Panel Parameters | Screen Size | 15 Inch | ||
Display Area | 302.9 mm.(Height) X 227.1(Width)mm. | |||
Aspect Ratio | 16 : 9 | |||
LCD Type | a-Si TFT-LCD Monitor | |||
Maximum Resolution | 1024 X 768 | |||
Display Color | 262K/16.2M , 72% NTSC | |||
Brightness | 300cd/m² | |||
Contrast Ratio | 1500 : 1 | |||
Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | |||
Response Time | 15ms | |||
LCD Panel Lifespan (Hours) | 60,000(Hour.) | |||
Field Frequency | 60Hertz | |||
PCAP Touchscreen Panel Parameters | Touch Pattern | Projected Capacitive Touchscreen Monitor | ||
Touch Points | 10 Points | |||
Cover Glass | Morse Glass Size 7 Physically reinforced to prevent explosion | |||
Glass 3 mm. Optical mount to reduce parallax | ||||
Glass Transmission | >85% (Higher light transmission depends on glass coating technology For example AR/AG) >85% | |||
Response Speed | < 6ms | |||
Touch Accuracy | More than 90% of the touch area ±2 mm | |||
Touch Method | Inch Stylus | |||
Output Format | Coordinate Output | |||
Click Time | Unlimited | |||
Smallest Touch Size | 5 mm | |||
Long-lasting Durability | Yes, Available | |||
Touch Interface | USB | |||
Operating Temperature and Humidity | Below 10℃ ~ +50℃, ≤ 85%RH | |||
Storage Temperature and Humidity | Less than 20℃ ~ +60℃, ≤ 90%RH | |||
Audio parameters | Audio system | Stereo | ||
Speaker size | ≈ 99 x 45 x 20 mm | |||
Impedance | 8 Ohm | |||
Power | 2 x 5 Watt | |||
Loudness | > 80 Decibel | |||
Interface | 4-pin connector | |||
Built-in Android PCB Configuration (Choose one of two) | CPU | Quad-Core RK3288, 1.8GHz | Quad-Core RK3568,2.0GHz | |
GPU | Mali-T764 | Mali-G52 | ||
RAM | 2GB | 4GB | ||
ROM | 32GB | 32GB | ||
Android System | Android 10.0 | Android 13.0 | ||
Ethernet | 1 x RJ45, 1,000 Mbps | Ethernet 1,000 Mbps | ||
Wireless Internet | 2.4Gigahertz | 2.4Gigahertz/5Gigahertz, Wi-Fi 6 | ||
Bluetooth | 4.2 | 5 | ||
Interface | USB2.0 x 2 | OTG USB2.0 x 1 | ||
Power | Power Supply | Alternating Current 100V~240V, 50/60Hz | ||
Maximum Power Loss | ≤ 25 Watt | |||
Standby Mode Power Loss | < 1 Watt | |||
Features | Operating Temperature | 0℃ ~ 50℃ | ||
Storage Temperature | Below 10℃ ~ +60℃ | |||

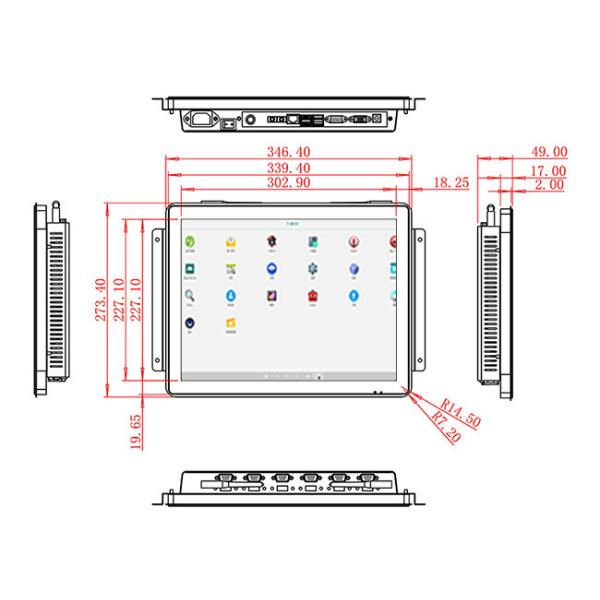

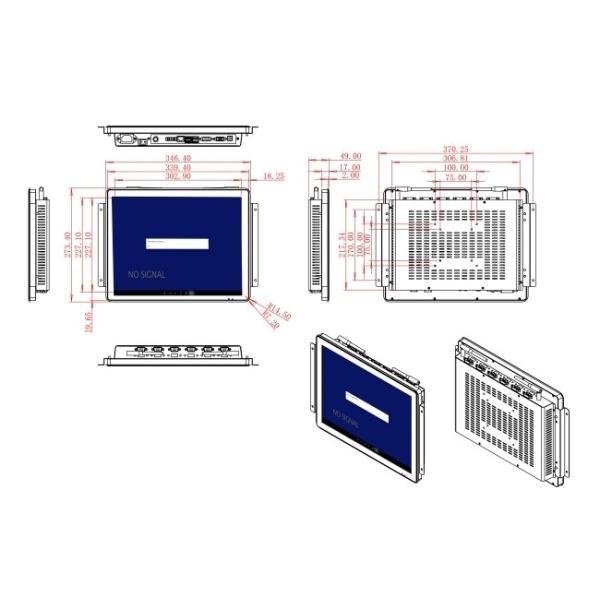

Package Size | Device Dimensions | 346.4 X 273.4X 49mm. | ||
Net Weight | 5 Kilogram | |||
Package Size | 41 X 35 X 15Centimeter | |||
Gross Package Weight per Unit | 5.5 Kilogram |
In public service stations, this 15-inch Android control terminal becomes a crucial interface for information display, helping customers access services and navigate public facilities efficiently. Its high-contrast ratio and wide viewing angles allow information to be visible to multiple people at once, ensuring accessibility in high-traffic areas. With its rugged construction and resistant-to-scratch screen, the device is built to withstand heavy usage in public spaces. Whether it’s for information kiosks, wayfinding systems, or ticketing booths, this terminal offers customizable content display—ranging from public announcements to service instructions—on the high-definition screen. The addition of Wi-Fi and Ethernet connectivity ensures smooth communication between the terminal and public service networks, supporting efficient service delivery and seamless customer interaction.
This 15-inch Android control console is also an ideal choice for digital signage applications. Whether in retail, hospitality, or corporate environments, its vivid display and responsive touch interface allow for dynamic content presentation and customer engagement. The device can be used as a digital billboard to display advertisements, promotions, or schedules, while its built-in stereo speakers enable audio integration for a multi-sensory experience. Thanks to its Android-based operating system, users can upload and manage content remotely via cloud-based software, which can be scheduled or updated in real-time. Additionally, the durability and power efficiency of this terminal make it perfect for outdoor installations, such as at bus stops or train stations, where constant exposure to environmental factors and high foot traffic are common. This makes it an essential tool for advertisers and public communicators aiming to engage audiences in innovative, impactful ways.
